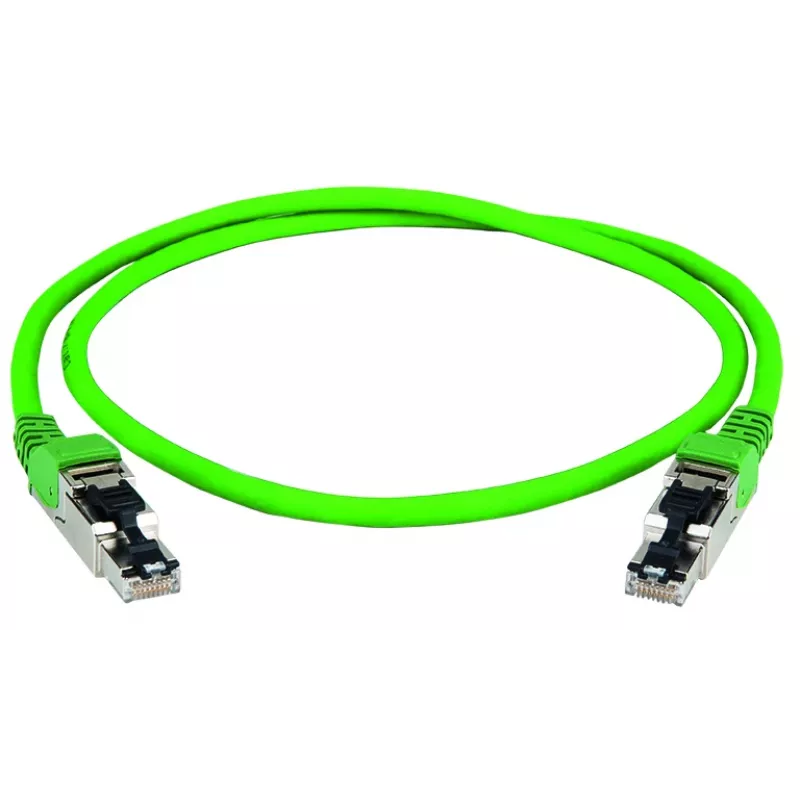

TELEGÄRTNER Cable de red RJ45 Cat 5e SF/UTP 20 m verde con funda PUR

Industrial Ethernet connections in harsh environments demand a cable that can withstand oil, UV exposure, and mechanical stress while maintaining reliable gigabit performance. The TELEGÄRTNER RJ45 Network Patch Cable meets that need with a rugged PUR jacket and full shielding, ensuring stable data transmission in demanding applications.

Who is it for

This cable is built for industrial automation, outdoor installations, and any setting where standard patch cables fail due to environmental factors. It suits system integrators, maintenance engineers, and network technicians who need a durable, high-performance link for machinery, sensors, or access points.

Main features

• SF/UTP shielding with overall braid and foil protects against electromagnetic interference, preserving signal integrity up to 100 MHz.
• PUR (polyurethane) jacket offers excellent resistance to oil, abrasion, and UV radiation, making it suitable for outdoor and industrial use.
• Stranded copper conductors (AWG 26/7) provide flexibility for routing in tight spaces while supporting Gigabit Ethernet (1000 Mbps).
• Halogen-free and flame retardant (IEC 60332-1-2) for safer installation in public or enclosed areas.
• 20-meter length covers extended runs between devices, racks, or across production floors.

Specifications

• Cable standard: Cat 5e
• Cable shielding: SF/UTP
• Connector type: RJ45 male to RJ45 male
• Jacket material: PUR
• Cable length: 20 m
• Data transfer rate: 1 Gbps
• Bandwidth: 100 MHz
• Conductor material: Stranded copper
• Conductor gauge: AWG 26/7
• Number of pairs: 4
• Impedance: 100 Ω
• Operating temperature range: -30°C to +80°C
• Flammability standard: IEC 60332-1-2
• Oil resistance: Yes
• UV resistance: Yes
• Halogen-free: Yes

Tips

For best performance, avoid sharp bends near the connectors and use cable glands or strain relief when passing through panels. The PUR jacket can be cleaned with mild detergents if exposed to oils or dirt.
