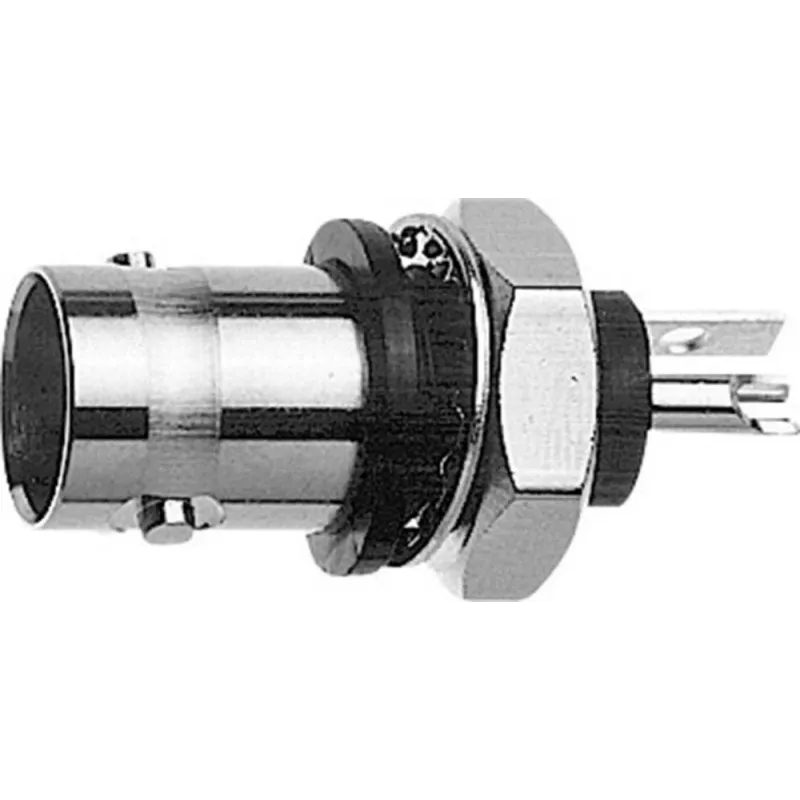

Telegärtner conector hembra BNC de montaje, aislado 50 ohmios, brida aislante azul, serie Z01 J01001B0043

RF connections in tight spaces often suffer from grounding loops and interference. This bulkhead-mounted BNC jack solves that by providing an isolated 50-ohm connection with a blue insulating flange, ensuring clean signal transfer in professional installations.

Who is it for

Designed for RF engineers, broadcast technicians, and industrial installers who need a reliable panel-mount BNC connector with electrical isolation.

Main features

• BNC jack (female) with solder termination for secure connections
• 50 ohm impedance for standard RF applications
• Isolated design with blue insulating flange prevents ground loops
• Bulkhead/panel mount for easy integration into enclosures
• Gold-plated contact and nickel-plated brass body for durability
• PTFE dielectric for excellent high-frequency performance

Specifications

• Connector type: BNC
• Gender: Jack (female)
• Mounting type: Bulkhead / panel mount
• Impedance: 50 Ohm
• Insulation: Isolated
• Flange type: Insulating flange, blue
• Series: Z01
• Contact plating: Gold
• Body material: Brass, nickel plated
• Dielectric material: PTFE
• Termination style: Solder
• Number of ports: 1
• RoHS compliant: Yes

Tips

When soldering, use a temperature-controlled iron to avoid damaging the PTFE dielectric. The insulating flange should be mounted on a non-conductive panel for best isolation.
