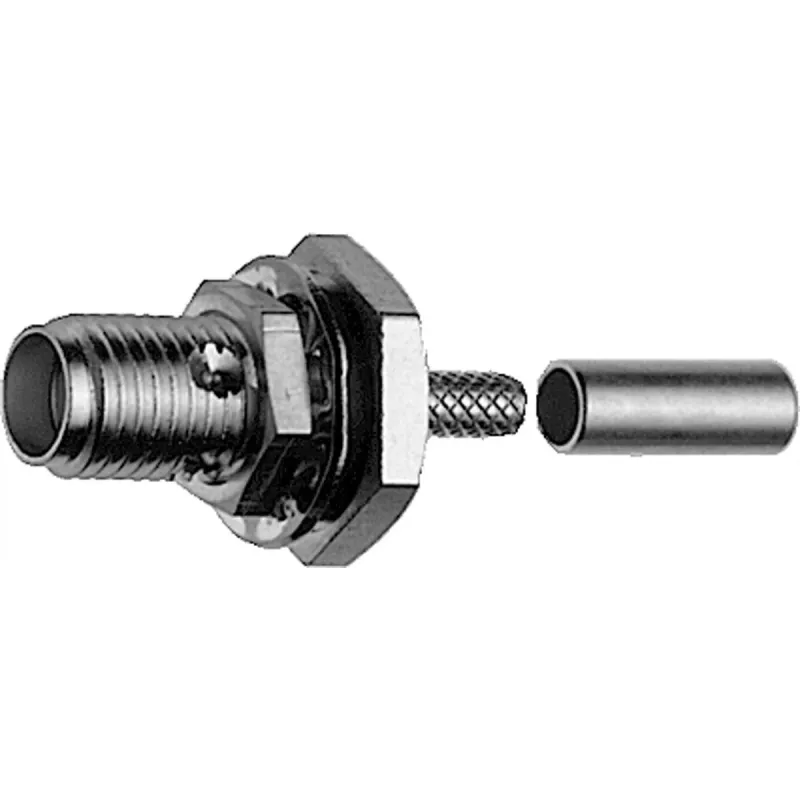

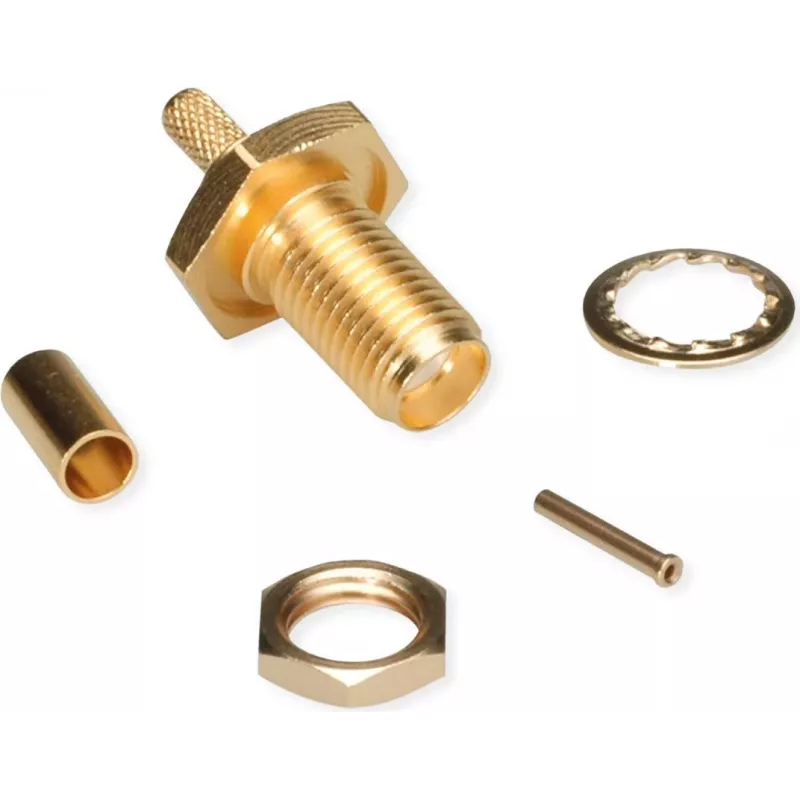

Telegärtner Conector hembra SMA por crimpado para RG-316/U, oro, pack de 5 (J01151A0001)

This SMA jack connector is a crimp-type coaxial connector for RG-316/U cable, supplied in a pack of 5. It features gold-plated contacts and body for reliable signal transmission up to 6 GHz.

Advantages

The crimp termination provides a secure and durable connection. Gold plating ensures low contact resistance and corrosion resistance.

Suitable for

• RG-316/U coaxial cable
• RF applications up to 6 GHz
• Field installations and repairs

Key specifications

• Connector type: SMA jack (female)
• Mounting type: cable mount
• Body style: straight
• Termination method: crimp
• Cable group: G07
• Compatible cable types: RG-316/U, RG-174/U, RG-188/U, LMR-100
• Impedance: 50 Ohm
• Frequency range: DC to 6 GHz
• Contact plating: gold
• Body plating: gold
• Contact material: beryllium copper
• Body material: brass
• Insulator material: PTFE
• Dielectric withstanding voltage: 750 Veff (RMS)
• Insulation resistance: ≥ 5 GΩ
• Operating temperature: -65 °C to +165 °C
• Mating cycles: ≥ 500
• RoHS compliance: Yes
• Quantity per pack: 5 pieces

Recommendations

For reliable RF connections in demanding environments, use the appropriate crimp tool and follow standard assembly procedures.
