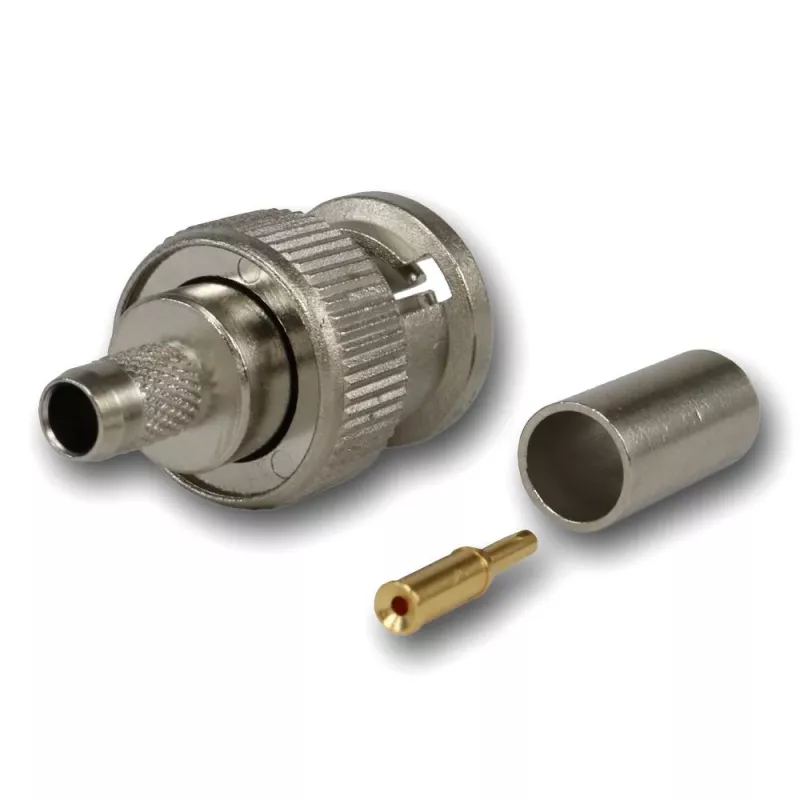

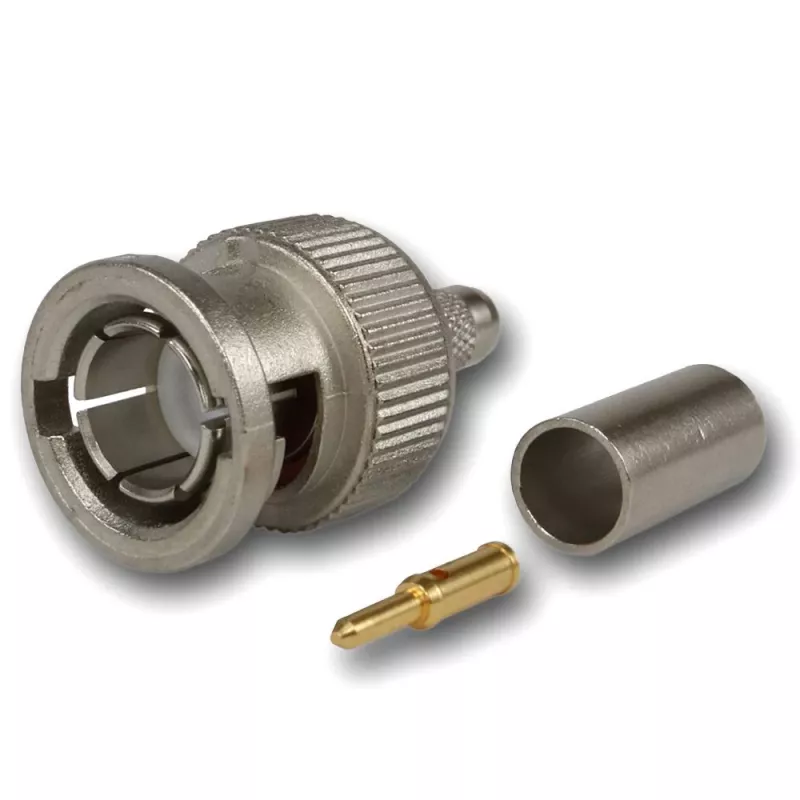

Telegärtner conector macho BNC crimp 75 Ohm para RG59/RG62/RG179/RG187/RG316 J01002A0030

This BNC male crimp connector is engineered for reliable 75 Ohm RF connections in video, broadcast, and test applications. Its gold-plated center contact and nickel-plated brass body ensure low contact resistance and durability, while the PTFE insulator provides stable performance up to 1 GHz.

Advantages

Gold-plated center contact for excellent conductivity and corrosion resistance. Crimp termination for secure, tool-assisted installation. Wide compatibility with common coaxial cable types including RG59, RG62, RG179, RG187, and RG316. Robust brass body with nickel plating for mechanical strength and wear resistance.

Suitable for

• Video signal distribution
• Broadcast equipment
• Test and measurement setups
• RF connections up to 1 GHz

Key specifications

• Connector type: BNC male (plug)
• Impedance: 75 Ohm
• Termination style: Crimp
• Frequency range: DC to 1 GHz
• Voltage rating: 500 V RMS
• Operating temperature: -40 °C to +85 °C

Recommendations

Use a proper crimp tool designed for BNC connectors to ensure a reliable connection. Verify cable compatibility before installation.
