Telegärtner Conector macho BNC de crimpado 50 ohmios para RG-58 C/U, recto, dorado/niquelado, 1 ud. J01000A1255Z

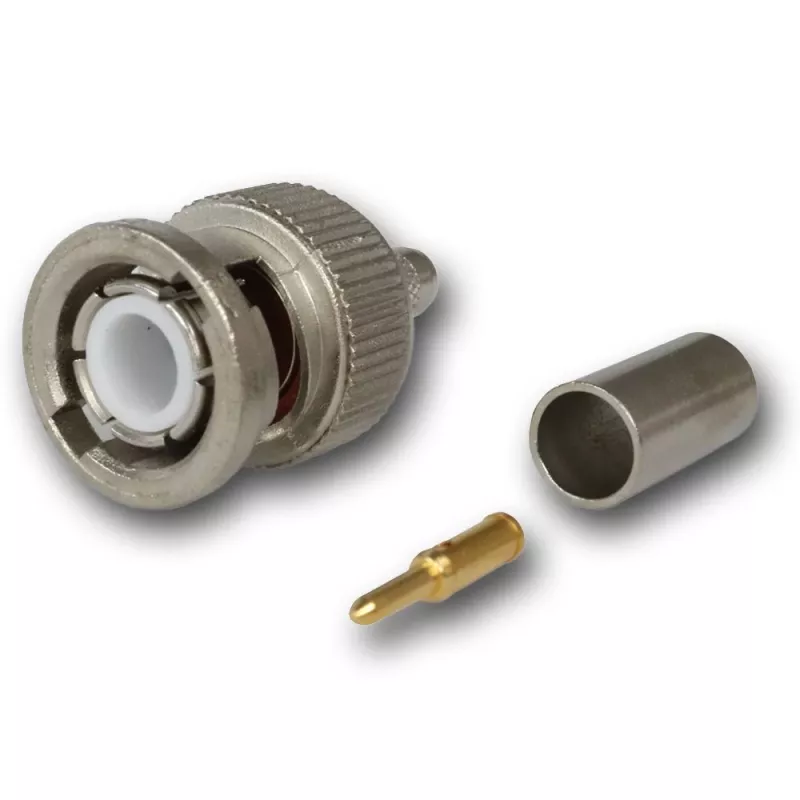

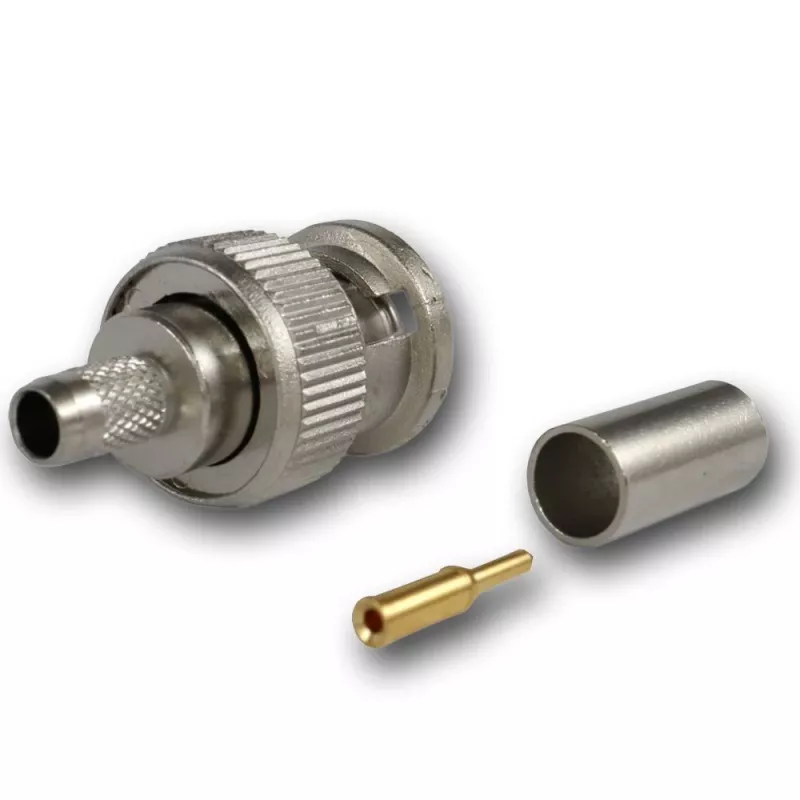

RF technicians and network installers use this Telegärtner BNC crimp plug to terminate RG-58 C/U coaxial cable in CCTV, broadcast and instrumentation systems. The straight male connector has a 50 Ohm impedance and is crimped to both the centre conductor and the braid for a secure, vibration-resistant connection.

Key specifications

• Connector type: BNC male, straight
• Impedance: 50 Ohm
• Termination: Crimp (centre and braid)
• Compatible cable: RG-58 C/U, YR 23092 Belden, UG-1785/U
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V (peak)
• Contact plating: Gold (inner), Nickel (body)
• Insulation material: PTFE
• Operating temperature: -40 °C to +85 °C
• Durability: 500 mating cycles

Why choose it

The Professional series design ensures reliable signal integrity up to 4 GHz. Gold-plated inner contact and nickel-plated body resist corrosion and maintain low contact resistance over repeated mating.

Ideal use cases

• Terminating RG-58 C/U cables for CCTV cameras
• Broadcast and video patching
• Test and measurement setups
• Industrial RF connections

Good to know

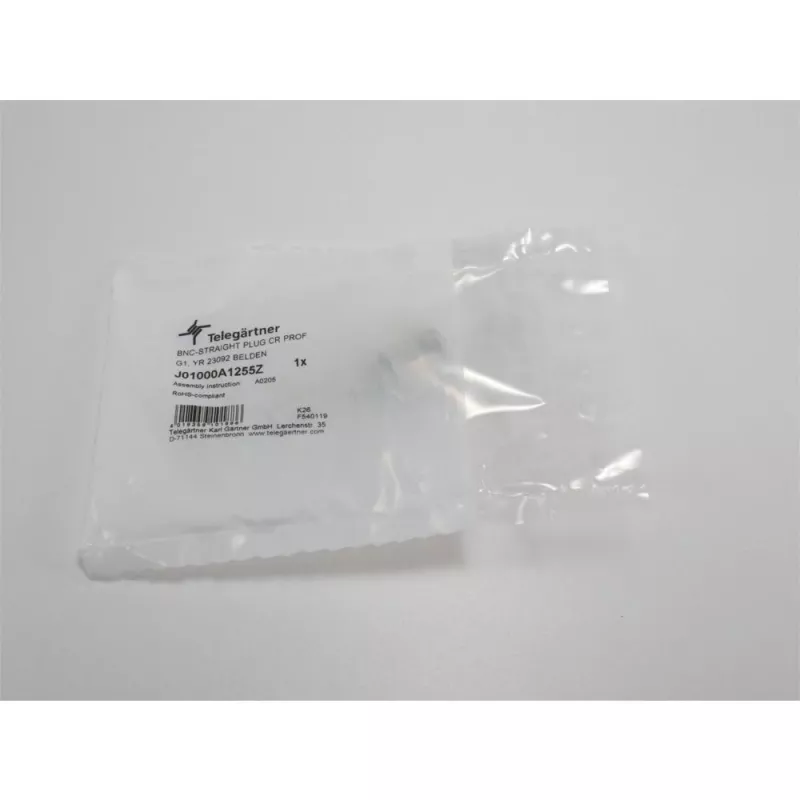

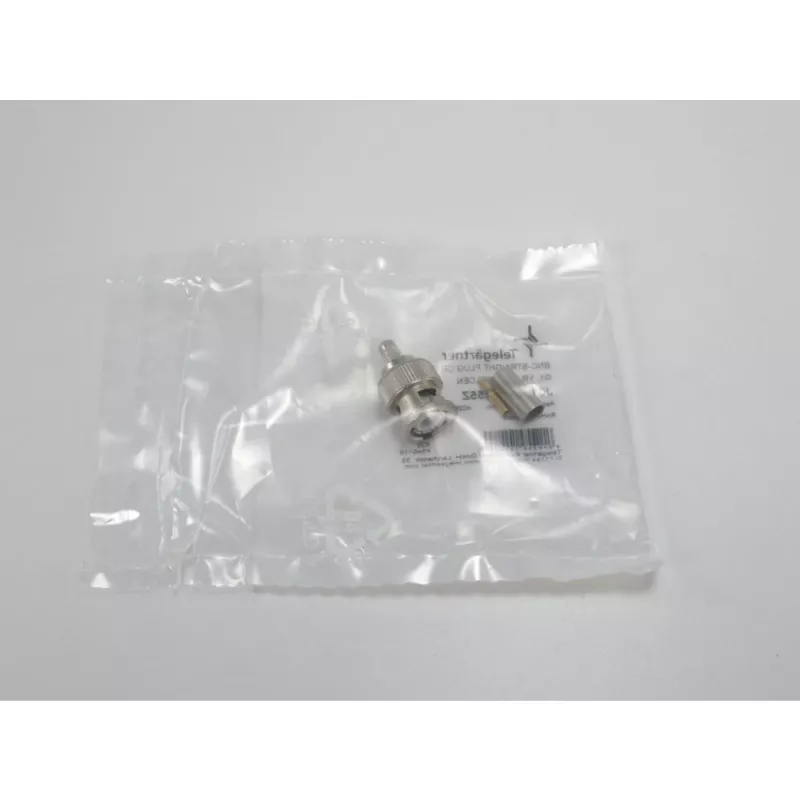

The connector is sold individually. It requires a crimp tool for RG-58 C/U and is suitable for cables with the specified group G01.
