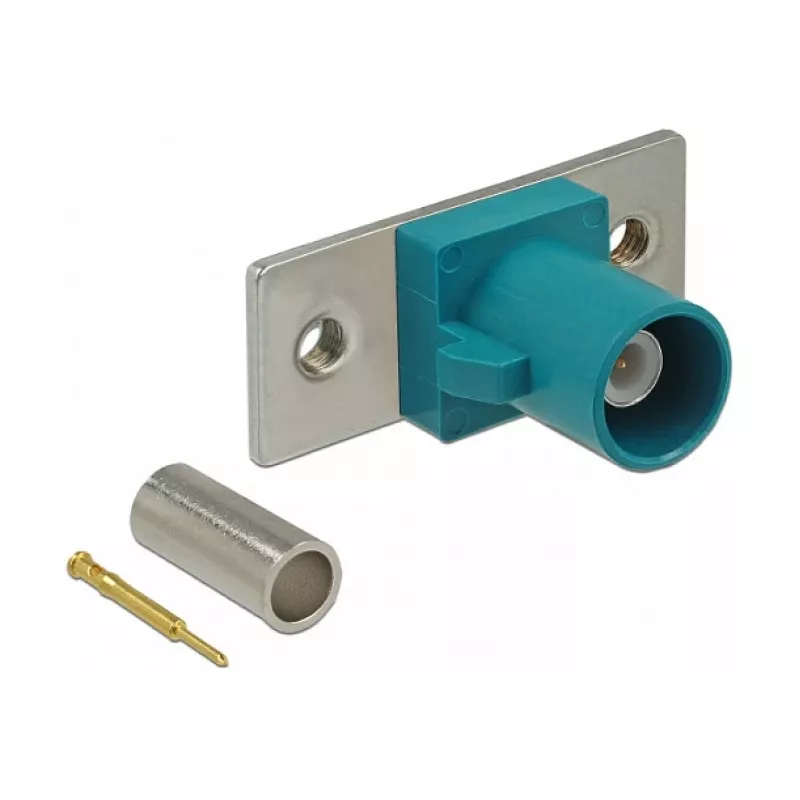

Conector coaxial DeLOCK 89796

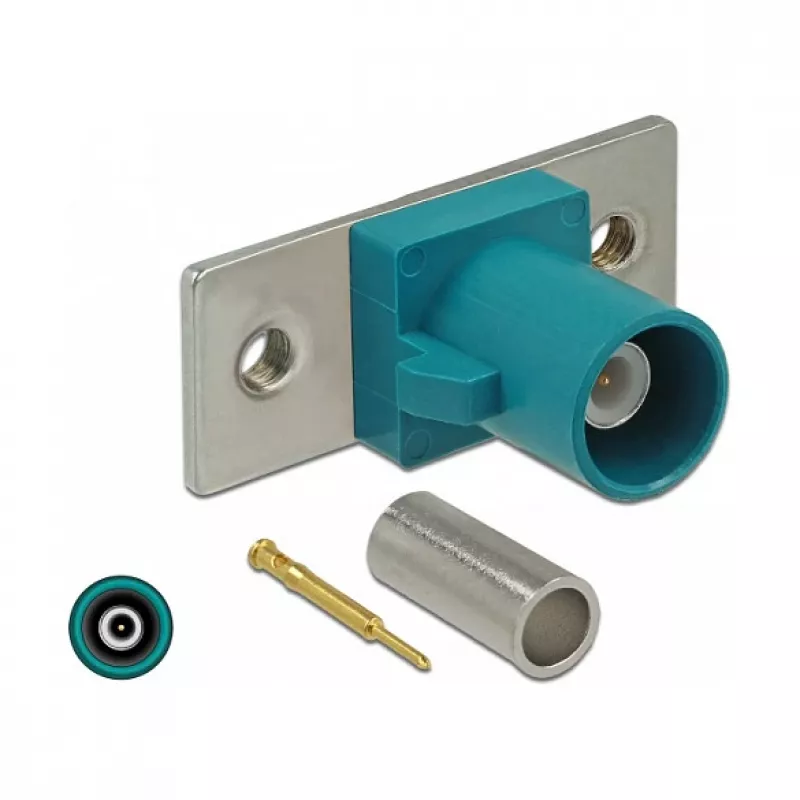

The DeLOCK 89796 coaxial connector is a compact FAKRA Z male plug with gold-plated contacts, designed for reliable radio frequency connections in automotive and communication systems. Its small dimensions (19.5 mm × 24 mm × 7.5 mm) and single-unit polybag packaging make it suitable for installation where space is limited and stable signal transmission is required.

Advantages

The FAKRA Z male connector provides a secure RF connection with gold-plated contacts for improved conductivity and corrosion resistance. The compact stainless-steel and blue-coloured housing enables space-saving integration and easy identification. The product is supplied as a single unit in a polybag for straightforward handling and storage.

Suitable for

Key specifications

How to use

Align the FAKRA Z male connector with the corresponding female FAKRA Z receptacle and insert until it clicks or seats fully, ensuring firm contact of the gold-plated pins. Verify mechanical locking (if present) and secure cabling as required by the installation environment. For removal, depress any locking mechanism and withdraw the connector straight out to avoid damage to the contacts.

Recommendations

Use the DeLOCK 89796 only with matching FAKRA Z female connectors and observe antenna and cable routing best practices to minimise signal loss; avoid excessive bending or torsion of the cable near the connector and protect the connector from moisture and contaminants during installation.
