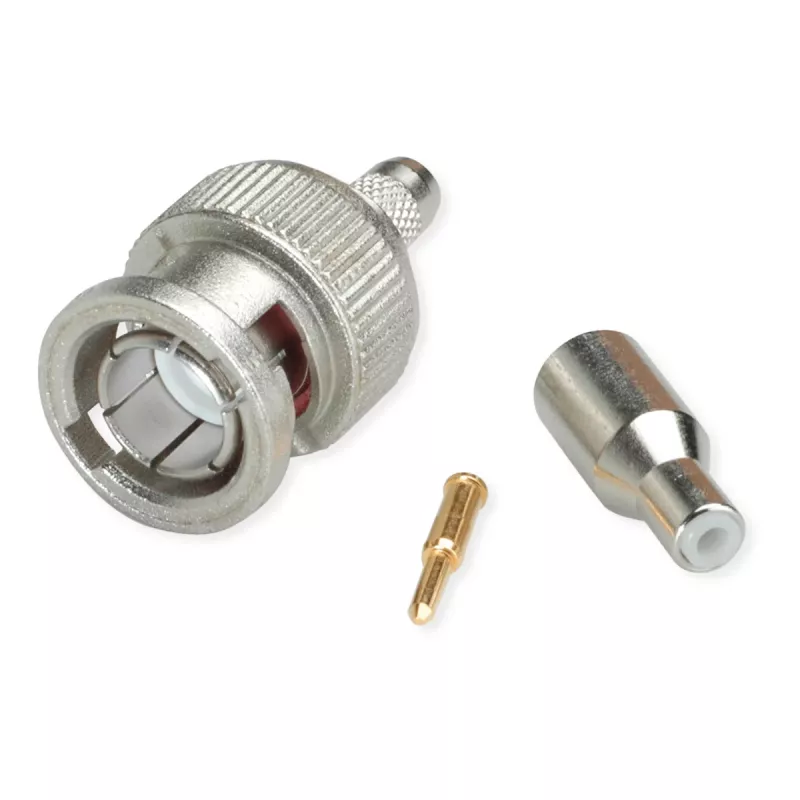

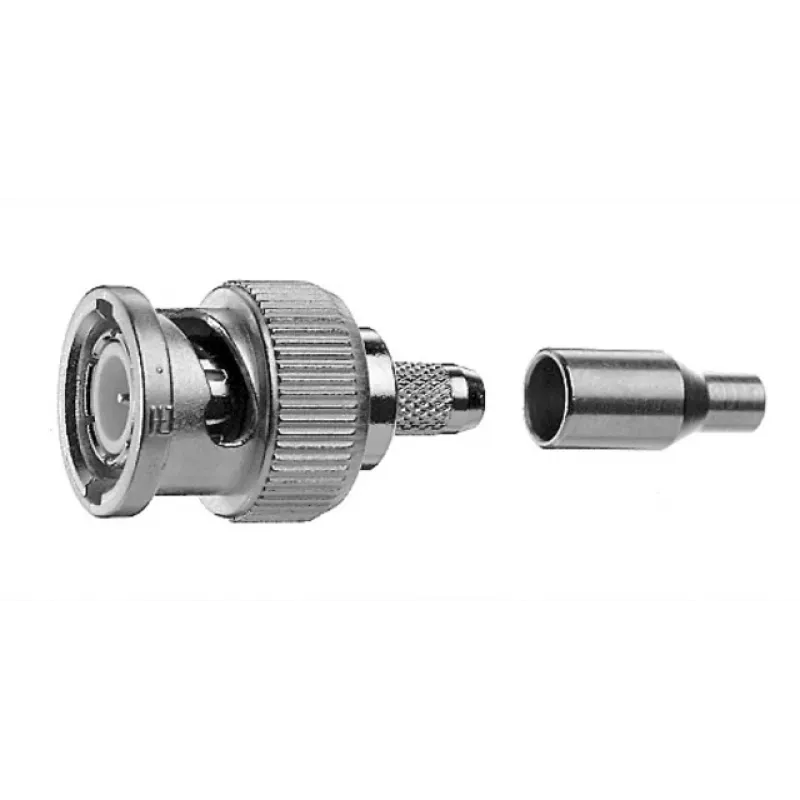

Telegärtner conector macho BNC para cable crimpado G04 75 ohmios, crimp/crimp, estándar, A2505, G04 (RG-179B/U) - 1 ud.

With a frequency range up to 1 GHz and a VSWR of ≤1.2, this BNC plug delivers precise signal transmission for 75-ohm coaxial systems. The crimp/crimp termination and gold-plated center contact ensure a durable, low-loss connection for RG-179B/U cable.

Overview

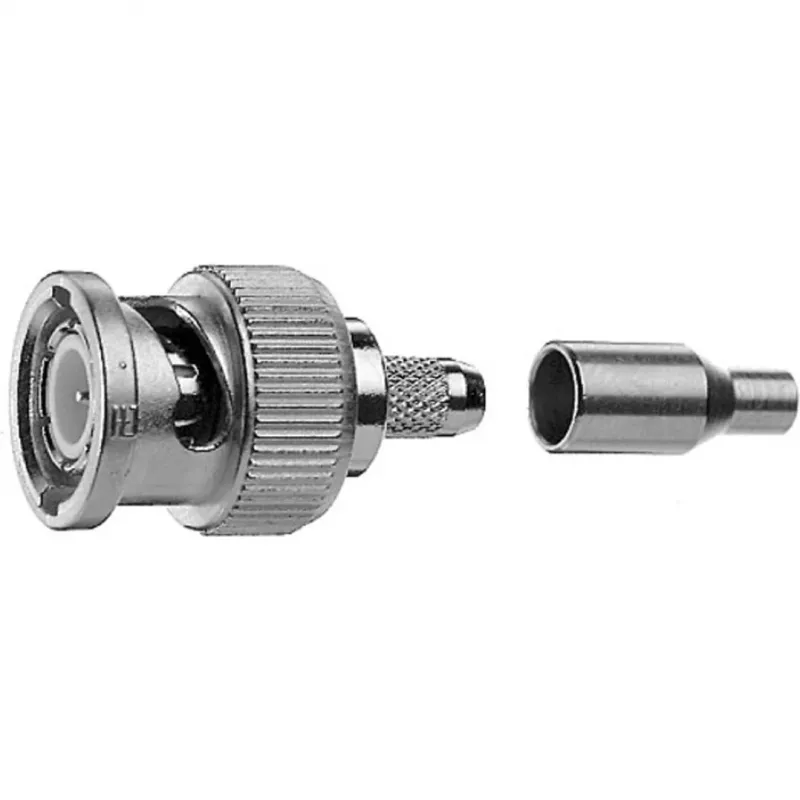

The Telegärtner BNC Cable Plug (model 100023460) is a male connector designed for 75-ohm coaxial applications. It features a crimp termination for both center conductor and braid, making it suitable for RG-179B/U cable. The body is nickel-plated brass, and the center contact is gold-plated brass with PTFE dielectric. It operates from -40 °C to +85 °C.

What stands out

• Wide frequency range: DC to 1 GHz
• Low VSWR: ≤1.2 at 1 GHz
• Gold-plated center contact for reliable conductivity
• PTFE dielectric for stable performance
• Crimp termination for secure cable attachment

Technical details

• Connector type: BNC male (plug)
• Impedance: 75 Ohm
• Termination: Crimp (center and braid)
• Cable group: G04 (RG-179B/U)
• Body material: Brass, nickel-plated
• Center contact: Brass, gold-plated
• Dielectric: PTFE
• Operating temperature: -40 °C to +85 °C
• Pack size: 1 piece

Our verdict

A professional-grade BNC connector for reliable 75-ohm RF connections in demanding environments.
