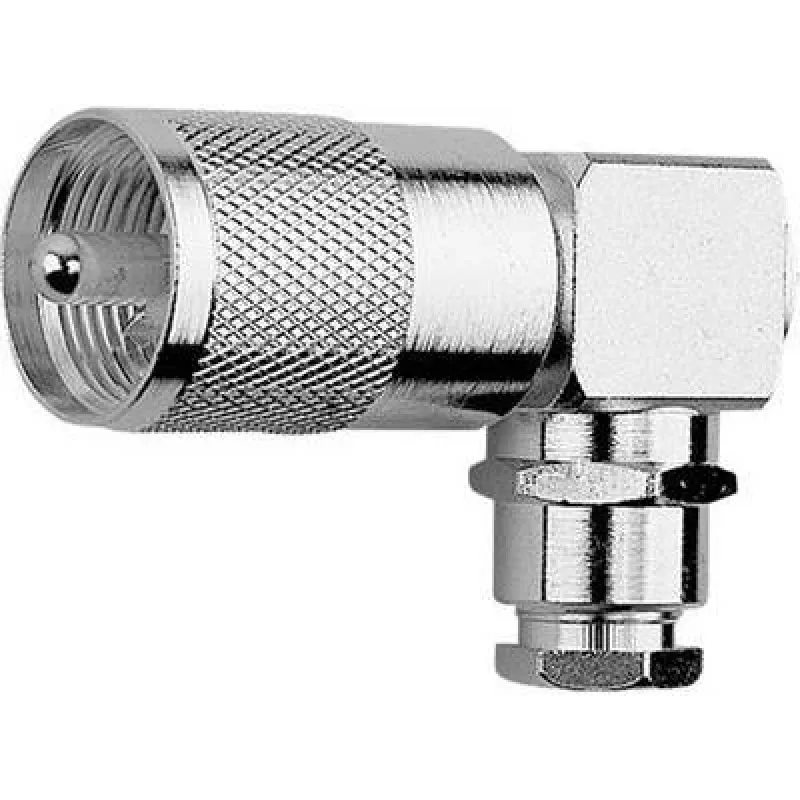

Telegärtner Conector macho en ángulo UHF para RG-58C/U, RG-223/U, RG-141 A/U, RG-142 B/U (J01040B1201)

UHF right-angle plug connector for reliable coaxial connections in the frequency range up to 300 MHz. This connector is designed for crimp termination of the outer conductor and solder termination of the center conductor, ensuring a secure and durable connection for RG-58C/U, RG-223/U, RG-141 A/U, and RG-142 B/U cables.

Advantages

The right-angle design allows cable routing in tight spaces where a straight connector would not fit. The nickel-plated brass body provides corrosion resistance, while the gold-plated center contact ensures low contact resistance and excellent signal integrity. The PTFE insulator offers high temperature resistance and stable electrical properties.

Suitable for

• Coaxial cable assemblies in RF applications
• Antenna connections and test equipment
• Industrial and communications systems requiring reliable UHF connections

Key specifications

• Connector series: UHF
• Connector type: Plug (male), right-angle
• Impedance: 50 Ohm
• Frequency range: DC to 300 MHz
• Voltage rating: 500 V RMS
• Operating temperature: -40°C to +85°C
• Body material: Brass, nickel plated
• Contact material: Brass, gold plated
• Insulator: PTFE
• Termination: Crimp (outer), solder (center)
• Compatible cables: RG-58C/U, RG-223/U, RG-141 A/U, RG-142 B/U

Recommendations

For best results, use the appropriate crimp tool and follow the manufacturer's assembly instructions. Ensure proper cable stripping dimensions for reliable performance.
