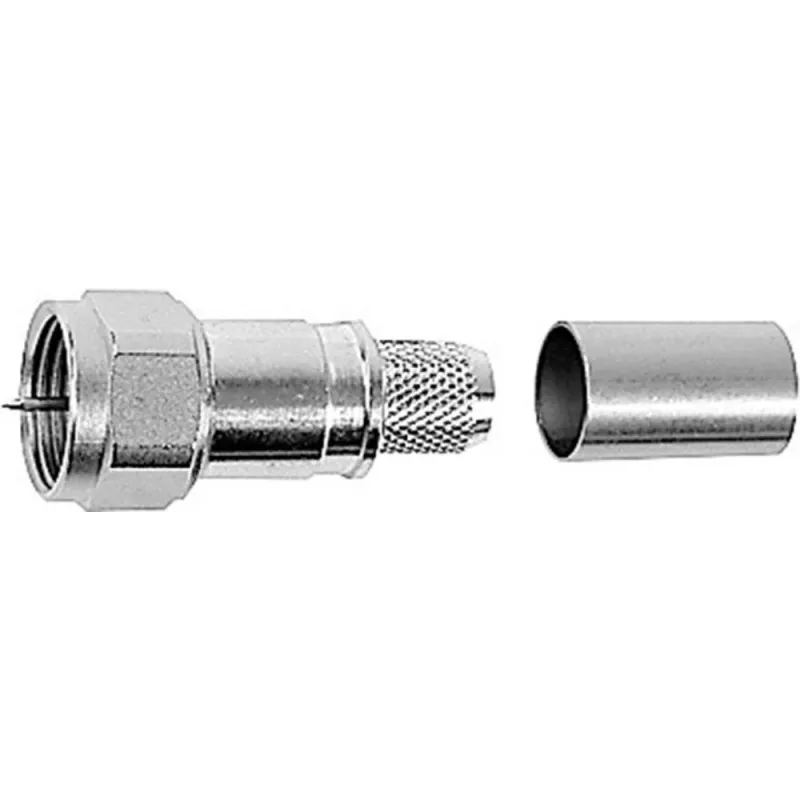

Telegärtner conector macho F, recto, 75 ohmios, crimp/rosca, latón niquelado, para RG59/RG6 J01600A0009

Coaxial cable installations fail when connectors loosen, corrode, or reflect signal. The Telegärtner J01600A0009 F plug solves this with a crimp-and-screw design that locks onto RG59 or RG6 cable and holds a 75-ohm impedance from DC to 1 GHz.

Who is it for

Satellite and cable TV installers, antenna builders, and network technicians who need a reliable, field-terminable F connector for broadband coax runs.

Main features

• Straight F plug (male) for standard 75-ohm coaxial systems
• Compatible with RG59 and RG6 cable types
• Inner conductor: screw-on termination; outer conductor: crimp for secure retention
• Nickel-plated brass body and inner conductor resist corrosion
• PTFE insulator maintains signal integrity across the full frequency range
• VSWR ≤ 1.2 at 1 GHz for minimal reflection loss
• Operating temperature range: -40°C to +85°C

Specifications

• Connector type: F plug (male)
• Connector design: straight
• Impedance: 75 Ω
• Frequency range: DC – 1 GHz
• Cable compatibility: RG59, RG6
• Mounting type: cable mount
• Inner conductor termination: screw-on
• Outer conductor termination: crimp
• Body material: brass, nickel-plated
• Inner conductor material: brass
• Insulator material: PTFE
• VSWR: ≤ 1.2 at 1 GHz
• Contact resistance (inner): ≤ 20 mΩ
• Contact resistance (outer): ≤ 5 mΩ
• Insulation resistance: ≥ 5 GΩ
• Test voltage: 1.5 kVeff / 50 Hz
• Operating temperature: -40°C to +85°C
• Durability: ≥ 500 mating cycles

Tips

Use a proper crimp tool sized for RG59/RG6 to ensure a gas-tight outer conductor connection. For outdoor use, apply a weatherproof boot or sealant over the connector body.
