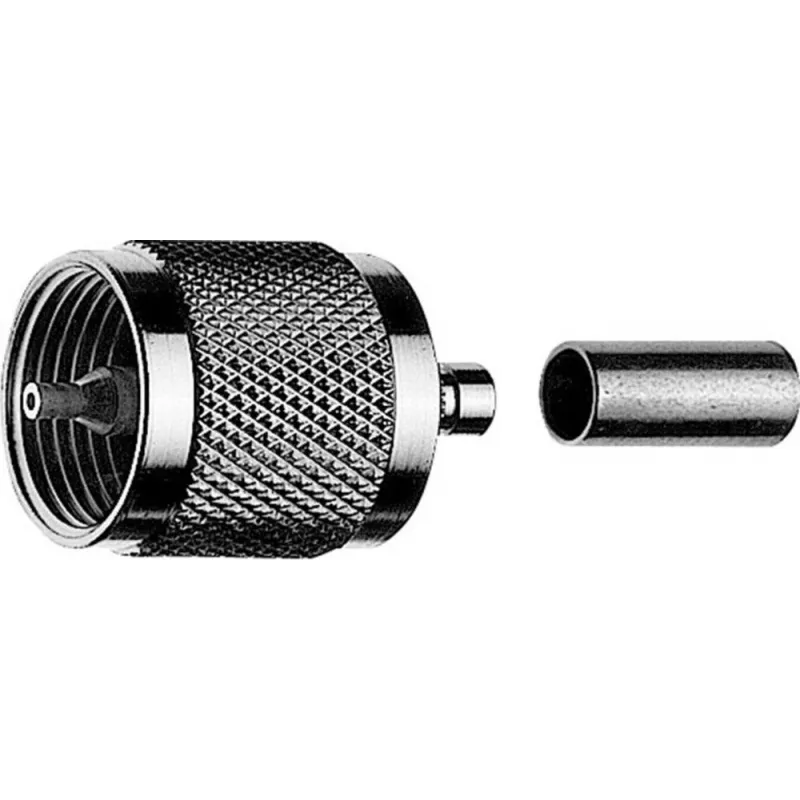

TELEGÄRTNER Conector macho UHF crimp para RG 214/U, pack de 5 (J01040A0010)

This UHF plug from TELEGÄRTNER offers a reliable crimp termination for RG 214/U coaxial cable, with both center and outer conductors secured by crimping for consistent performance. The threaded coupling (7/8"-20 UNEF-2A) provides a secure connection, while the nickel-plated brass body and gold-plated center contact ensure durability and low contact resistance. Supplied in a pack of 5, it is suited for RF applications up to 200 MHz.

Highlights

• Crimp termination for center and outer conductors
• Compatible with RG 214/U cable
• 50 Ohm impedance, DC to 200 MHz
• Nickel-plated brass body, gold-plated center contact
• Pack of 5 connectors

In daily use

The connector's PTFE insulator and operating temperature range of -40 °C to +85 °C make it suitable for demanding environments. With a VSWR of ≤ 1.2 at 0.2 GHz and insulation resistance ≥ 5 GΩ, it maintains signal integrity in RF connections.

Full specifications

• Connector type: UHF plug (male)
• Termination method: Crimp (center and outer conductor)
• Compatible cable: RG 214/U
• Impedance: 50 Ohm
• Frequency range: DC to 200 MHz
• Operating voltage: 500 Veff
• Test voltage: 1500 Veff
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1.0 mΩ
• VSWR: ≤ 1.2 at 0.2 GHz
• Coupling mechanism: Threaded (7/8"-20 UNEF-2A)
• Body material: Brass, nickel-plated
• Center contact material: Brass, gold-plated
• Insulator material: PTFE
• Operating temperature: -40 °C to +85 °C
• Standard: IEC 60169-12 (UHF series)
• Pack quantity: 5 pieces

Final note

TELEGÄRTNER's crimp UHF plug delivers dependable RF connectivity for RG 214/U cable, with robust construction and consistent electrical performance.
