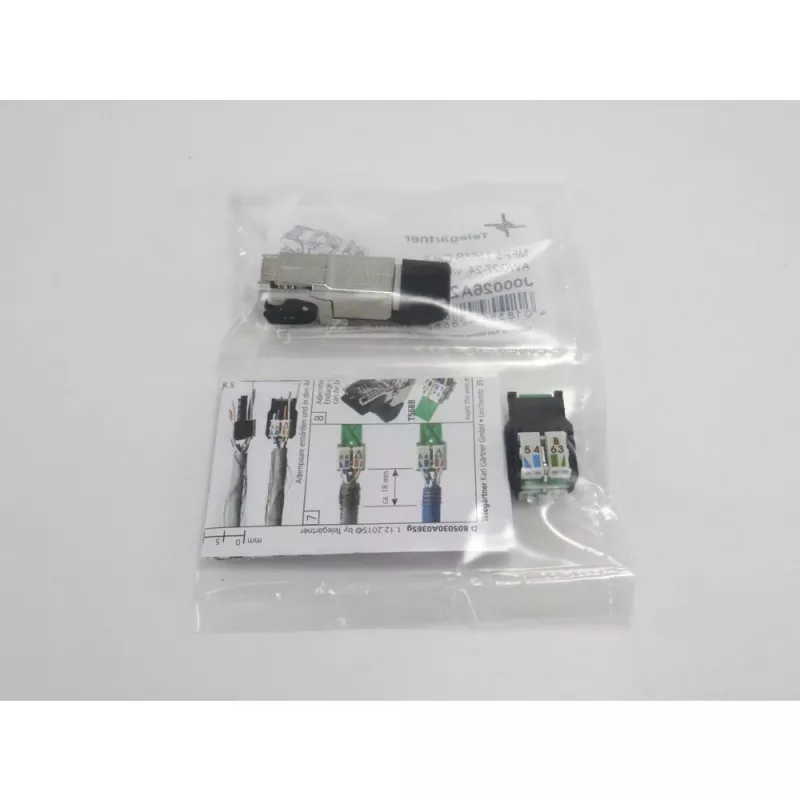

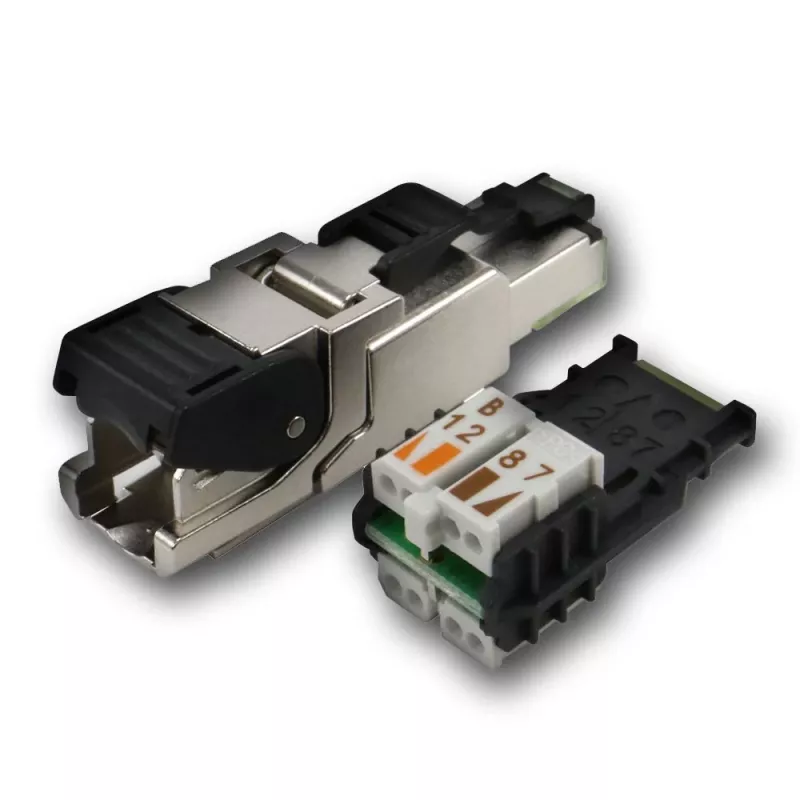

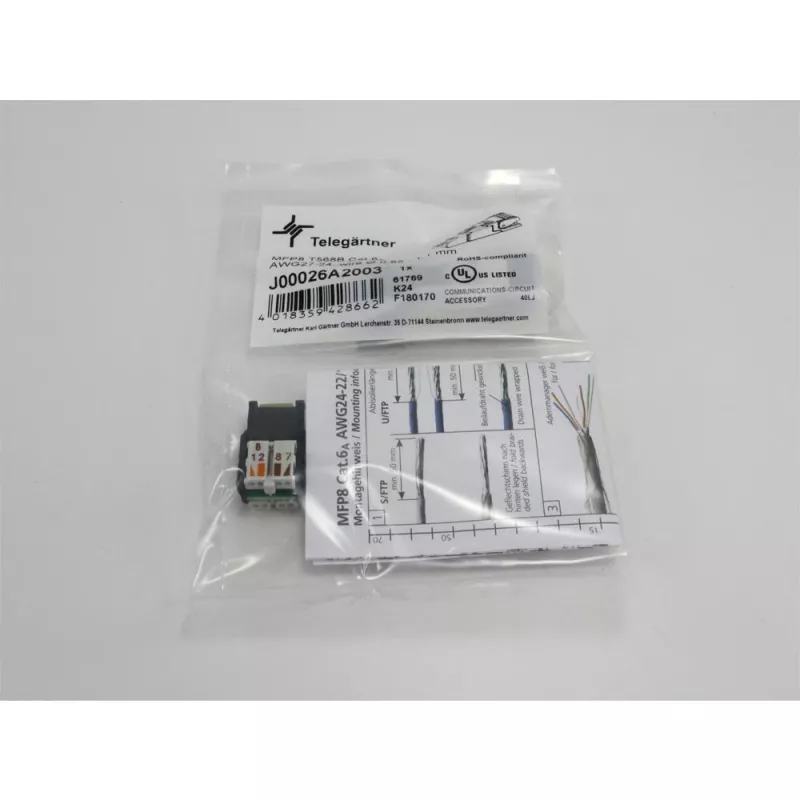

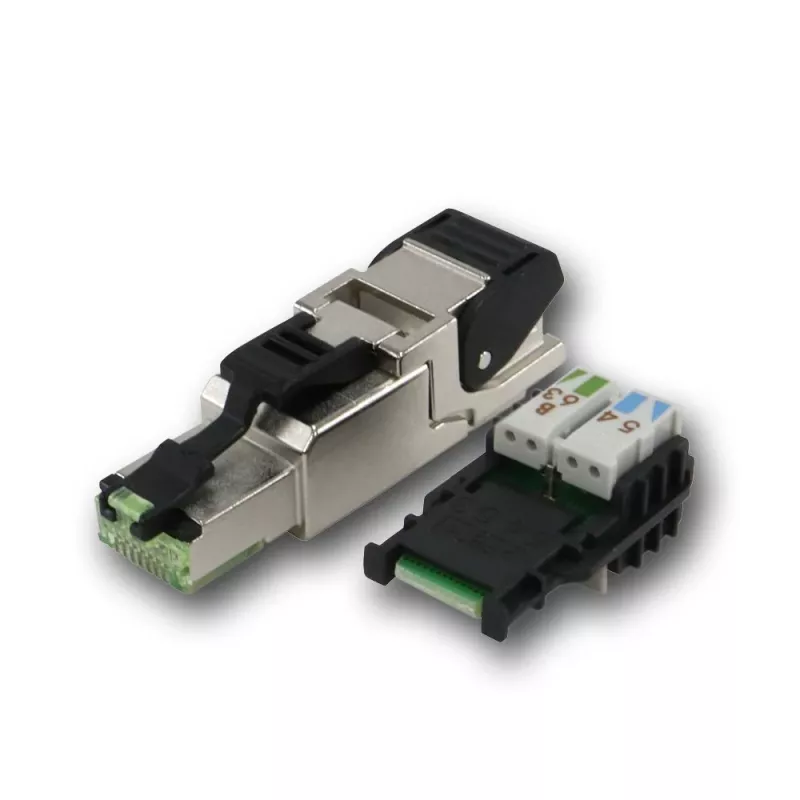

TELEGÄRTNER DataVoice Office Conector RJ45 apantallado Cat.6A montaje en campo, 5-9 mm J00026A2003

Supports 10 Gigabit Ethernet with full 360° shielding and tool-free termination for solid or stranded conductors.

Overview

The TELEGÄRTNER DataVoice Office J00026A2003 is a field-terminable RJ45 plug engineered for high-performance Cat.6A networks. Its die-cast zinc housing with nickel plating and gold-plated contacts ensure reliable, long-lasting connections in demanding environments.

What stands out

• Tool-free assembly saves installation time without special tools.
• Accommodates cable diameters from 5.0 mm to 9.0 mm.
• Supports solid wires AWG 24/1 to 22/1 and stranded wires AWG 27/7 to 22/7.
• Reusable up to 5 times for flexibility in network changes.
• Full PoE support up to 4PPoE (IEEE 802.3bt).

Technical details

• Connector type: RJ45 male, 8P8C
• Performance category: Cat.6A (ISO/IEC 11801 Amd.2)
• Shielding: 360° shielded
• Transmission speed: up to 10GBASE-T
• Termination: field-terminable, tool-free
• Housing material: die-cast zinc, nickel-plated
• Contact plating: gold, min. 1.27 µm
• Operating temperature: -40 °C to +70 °C
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51

Our verdict

A robust Cat.6A plug that delivers high-speed performance with easy, tool-free installation for professional network deployments.
