Telegärtner J08071A0028 Adaptador LC/APC simplex, verde, casquillo de circonio

With a typical insertion loss of less than 0.2 dB and return loss exceeding 60 dB, this LC/APC simplex adapter ensures high-performance single-mode connections. The green housing identifies the APC (Angled Physical Contact) polish, while the zirconia ceramic sleeve provides precise alignment and durability.

Overview

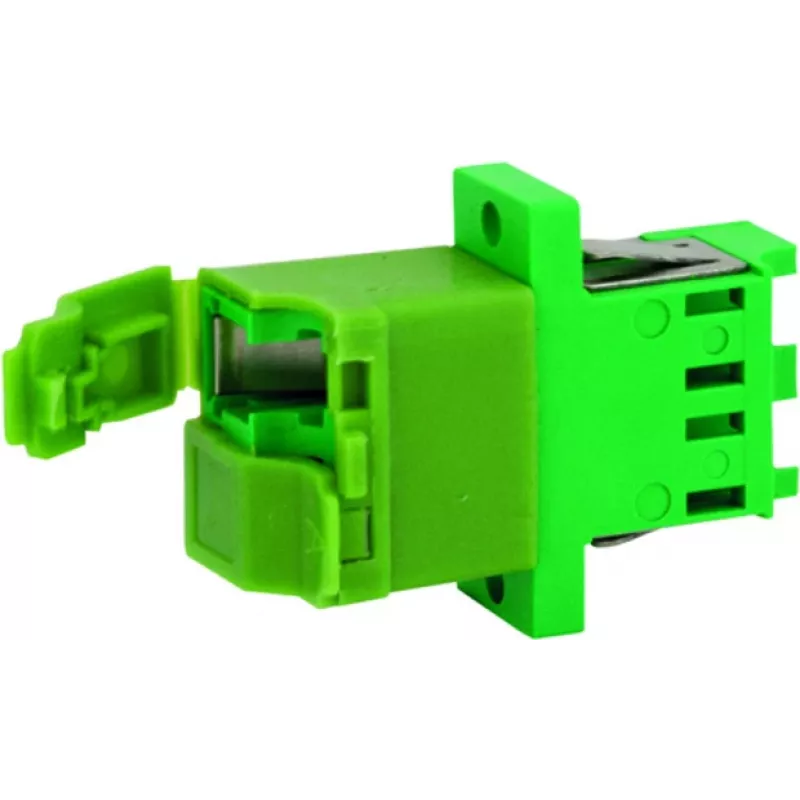

The Telegärtner J08071A0028 is a flange-mount, simplex LC/APC adapter designed for single-mode fibre applications. It features a green PBT plastic housing and a zirconia ceramic sleeve, ensuring reliable mating for over 500 cycles. The adapter is compliant with IEC 61754-20 and TIA/EIA-604-10 standards.

What stands out

• APC angled end-face minimises back reflections
• Zirconia ceramic sleeve for precise fibre alignment
• Flange mount design for panel installation
• Wide operating temperature range from -40 to +85 °C
• UL 94 V-0 flammability-rated housing

Technical details

• Connector type: LC/APC
• Adapter type: Simplex
• Fibre mode: Single-mode
• Housing material: Plastic (PBT)
• Sleeve material: Zirconia ceramic
• Insertion loss (typical): < 0.2 dB
• Return loss (typical): > 60 dB
• Durability: > 500 mating cycles
• Operating temperature: -40 to +85 °C
• Storage temperature: -40 to +85 °C
• Flammability rating: UL 94 V-0
• Mounting type: Flange mount
• Compliance: IEC 61754-20, TIA/EIA-604-10
• Ferrule end-face: Angled Physical Contact (APC)
• Keying: Non-keyed
• Dust caps: Included

Our verdict

A robust LC/APC adapter for single-mode networks, offering low loss and high return loss in a compact flange-mount form factor.
