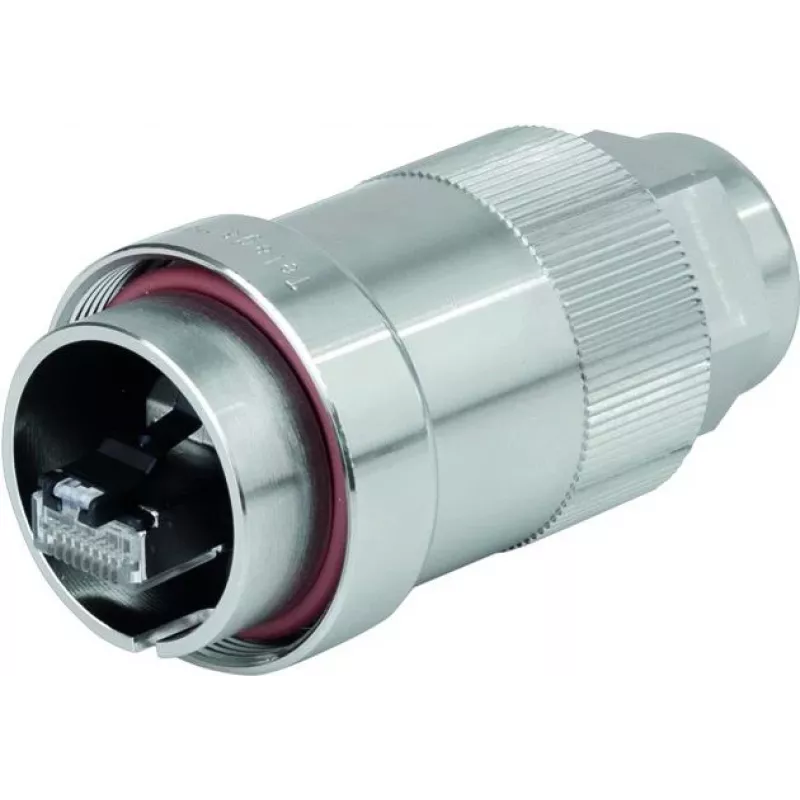

Telegärtner J60026A0000 TOC M12 Conector de campo blindado de 4 polos codificado D, acero inoxidable, borne de tornillo, IP68

Industrial automation technicians and field engineers rely on the Telegärtner J60026A0000 TOC plug for robust Ethernet connectivity in harsh environments. This M12 D-coded connector is designed for field assembly, allowing on-site termination of cables with diameters from 4.0 to 8.0 mm. Its stainless steel housing and screw terminal contacts ensure a secure, durable connection for PROFINET and other industrial Ethernet applications.

Key specifications

• Connector type: M12 plug, D-coded, 4-pole
• Shielding: Shielded
• Assembly type: Field assembly
• Housing material: Stainless steel
• Ingress protection: IP68 (when mated)
• Operating temperature range: -40°C to +85°C
• Rated voltage: 250 V AC/DC
• Rated current: 4 A
• Contact plating: Gold over copper alloy
• Insulation resistance: > 10^8 Ω
• Mating cycles: > 100
• Cable diameter range: 4.0 - 8.0 mm
• Connection method: Screw terminal
• Standard compliance: IEC 61076-2-101

Why choose it

The TOC plug offers a reliable, field-terminable solution for industrial networks. Its stainless steel construction withstands demanding conditions, and the screw terminals allow quick, tool-friendly installation without specialized crimping equipment.

Ideal use cases

• Industrial Ethernet and PROFINET installations
• Connecting sensors and actuators in manufacturing plants
• Outdoor or washdown environments requiring IP68 protection

Good to know

This connector is part of the Telegärtner Outdoor Connector (TOC) series, engineered for robust performance in industrial automation.
