Telegärtner Karl Gärtner Panel de distribución de fibra óptica 19 pulgadas BASIS eco 1U Heather Violet - fibra óptica - dúplex

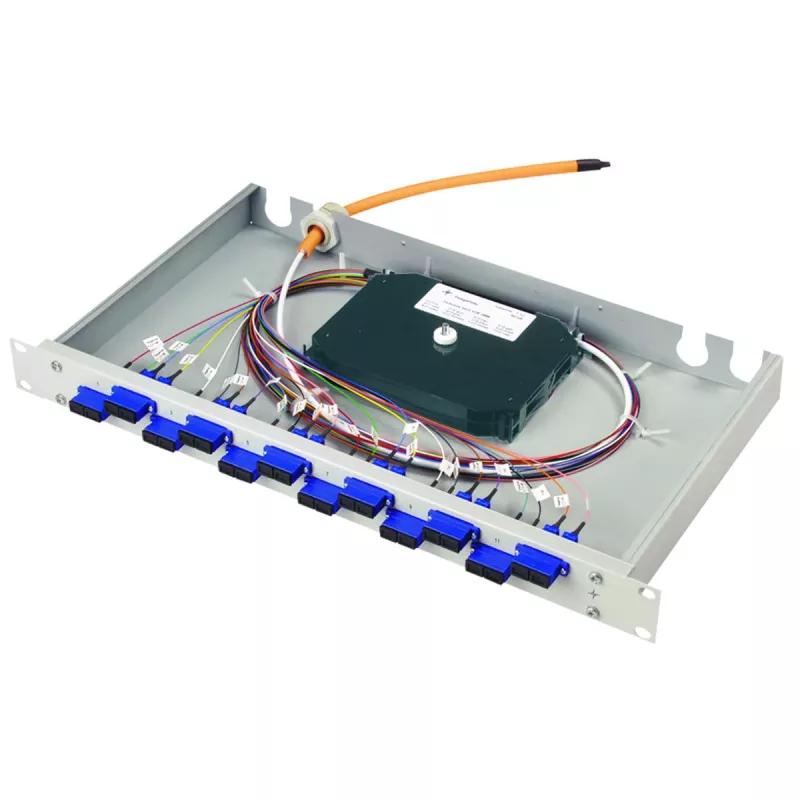

The Telegärtner BASIS eco 19" fiber optic distribution panel is a high-quality, empty housing designed for structured cabling in data centers and server rooms. This 1U panel offers modular flexibility with two adapter plate slots, supporting up to 24 LC duplex or 12 SC duplex ports. Its robust powder-coated steel construction in heather violet (RAL 4003) ensures durability and a professional appearance.

Advantages

Modular design allows for customized configurations using Telegärtner adapter plates. Integrated cable management with strain relief and routing features simplifies installation. The hinged or removable front panel provides easy access for maintenance and splicing.

Suitable for

• Data centers and server rooms requiring reliable fiber optic distribution
• Indoor network infrastructure with 19" rack mounting
• Applications needing modular adapter plates for LC or SC connectors

Key specifications

• Product Type: Fiber Optic Distribution Panel
• Rack Standard: 19-inch
• Height Units (RU): 1U
• Color: Heather Violet (RAL 4003)
• Material: Powder-coated steel
• Adapter Plate Slots: 2
• Max. LC Duplex Ports: 24
• Max. SC Duplex Ports: 12
• Cable Entry: Rear, multiple options
• Access: Hinged or removable front panel
• Protection Class: IP20
• Series: BASIS eco
• Configuration: Empty housing (modular)
• Mounting Type: Rack mount

Recommendations

For optimal performance, pair this panel with Telegärtner splice trays and appropriate adapter plates. Ensure proper cable management to maintain bend radius and reduce signal loss.
