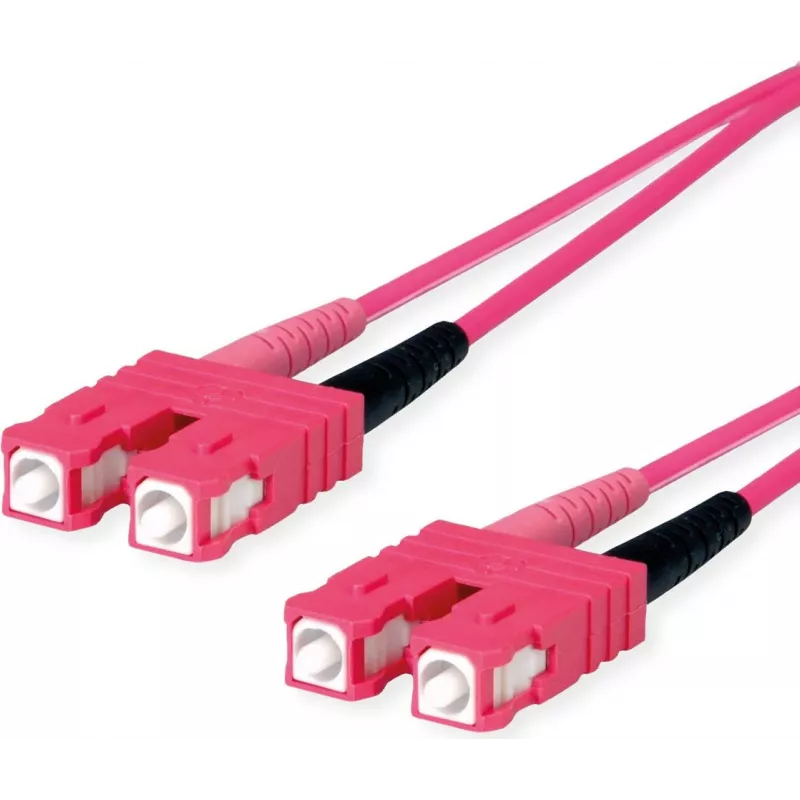

Telegärtner L00880A0028 Cable de fibra óptica SC a SC OM4 dúplex, 1 m, violeta

With an effective modal bandwidth of 4700 MHz·km at 850 nm, this Telegärtner OM4 patch cable is built for high-speed multimode links up to 100 metres.

Overview

The Telegärtner L00880A0028 is a 1-metre duplex fibre optic patch cable with SC connectors on both ends. It uses 50/125 µm OM4 multimode fibre with a violet LSZH jacket, making it suitable for indoor high-density patching in data centres and enterprise networks.

What stands out

• OM4 multimode fibre supports 40G and 100G Ethernet over short distances.
• SC/UPC duplex connectors ensure low insertion loss and reliable mating.
• LSZH jacket reduces smoke and toxic emissions in case of fire.
• Violet colour identifies OM4 per industry standard.

Technical details

• Cable length: 1 m
• Fibre type: OM4 multimode, 50/125 µm
• Connectors: SC to SC, duplex, UPC polish
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Jacket material: LSZH
• Cable diameter: 2.8 mm
• Operating temperature: -20°C to +70°C

Our verdict

A dependable OM4 patch cord for short-reach, high-bandwidth connections where space and safety matter.
