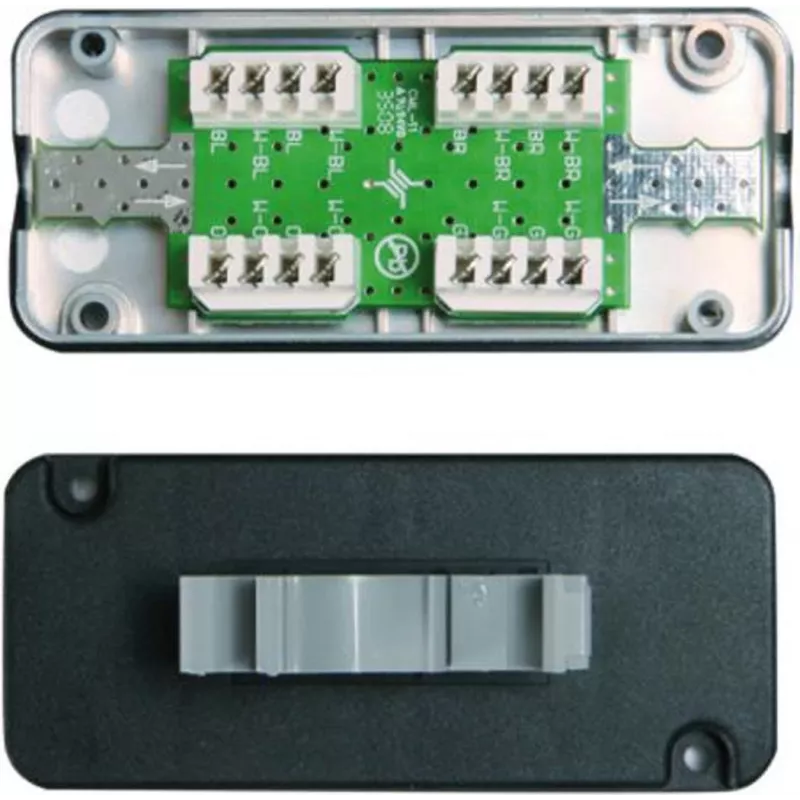

TELEGÄRTNER Módulo de conexión Cat.7 para prolongación de cable bruto, totalmente apantallado, con adaptador para par trenzado de 8 hilos J00060B0069

This Cat.7 connection module provides a robust, fully shielded splicing point for extending 8-core twisted-pair raw cables. It supports 10 Gigabit Ethernet and is built with a die-cast zinc housing for durability in demanding installations.

Advantages

The 360° shielding and high insulation resistance ensure reliable signal integrity and protection against electromagnetic interference. The IDC termination allows quick, solder-free connection of solid or stranded conductors.

Suitable for

• Extending Cat.7 raw cable runs in structured cabling systems
• Industrial and commercial networks requiring 10GBASE-T performance
• Installations with PoE, PoE+, or PoE++ powered devices

Key specifications

• Cable category: Cat.7, fully shielded (360°)
• Supports solid conductors AWG 24/1–22/1 and stranded AWG 27/7–22/7
• Transmission performance up to 10 Gigabit Ethernet (10GBASE-T)
• Housing: die-cast zinc, surface mount
• Operating temperature: -40°C to +70°C
• Standards: ISO/IEC 11801, EN 50173

Recommendations

For best results, pair with Cat.7 shielded cables and ensure proper grounding of the module to maintain full shielding effectiveness.
