Telegärtner Pigtail - cable de parcheo, lengüeta de soldadura - LC monomodo (M)

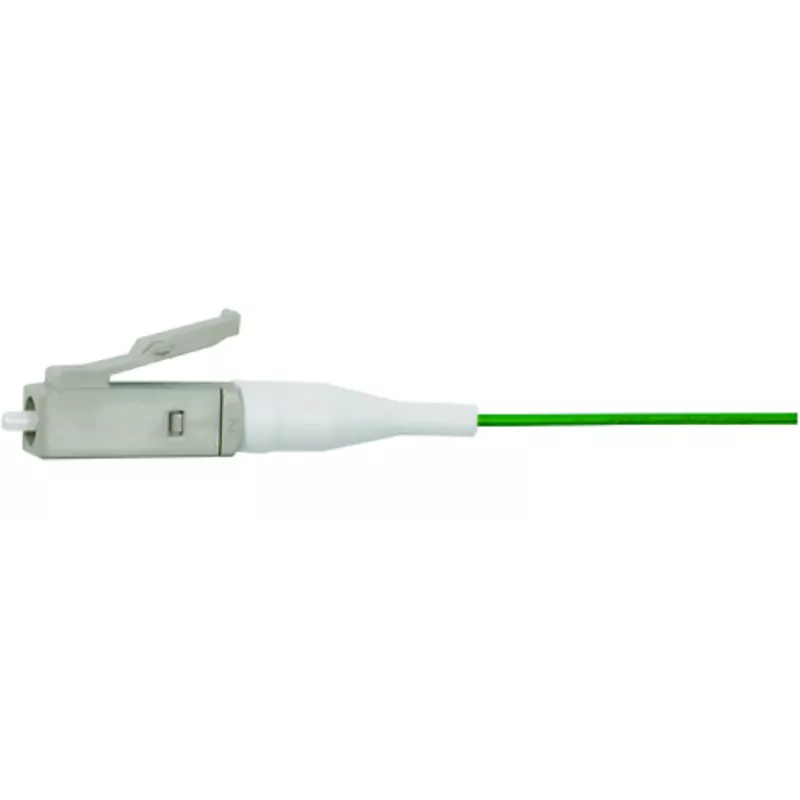

The Telegärtner Pigtail is a high-quality fiber optic pigtail designed for fusion splicing into patch panels, splice boxes, or active components. It features a LC-UPC connector on one end and a bare fiber open end on the other, with a single-mode OS2 fiber (E9/125 µm) compliant with ITU-T G.657.A1 and G.652.D standards. The pigtail is 2 meters long with a 0.9 mm diameter LSZH jacket in yellow, ensuring low smoke and zero halogen for safety. With insertion loss < 0.2 dB and return loss > 50 dB, it delivers excellent signal integrity. The zirconia ceramic ferrule and UPC polishing guarantee reliable performance. Operating temperature range: -20°C to +70°C; storage: -40°C to +85°C. RoHS and REACH compliant.

Advantages

Low insertion loss and high return loss ensure minimal signal degradation. LSZH jacket provides enhanced safety in confined spaces. Compatible with standard single-mode fibers for versatile integration.

Suitable for

• Fusion splicing in patch panels
• Splice boxes
• Active components like transceivers
• Telecommunications and data center installations

Key specifications

• Connector A: LC-UPC
• Connector B: Bare Fiber (Open End)
• Fiber Mode: Single-Mode (OS2)
• Cable Length: 2 m
• Jacket Material: LSZH, Yellow
• Insertion Loss: < 0.2 dB
• Return Loss: > 50 dB

Recommendations

For optimal performance, ensure proper fusion splicing technique and clean connectors before use. Store in a dry, temperature-controlled environment.
