TELEGÄRTNER STX Distribuidor para carril DIN 6xST-dúplex, casquillo/carcasa metálica, multimodo (H82050A0001)

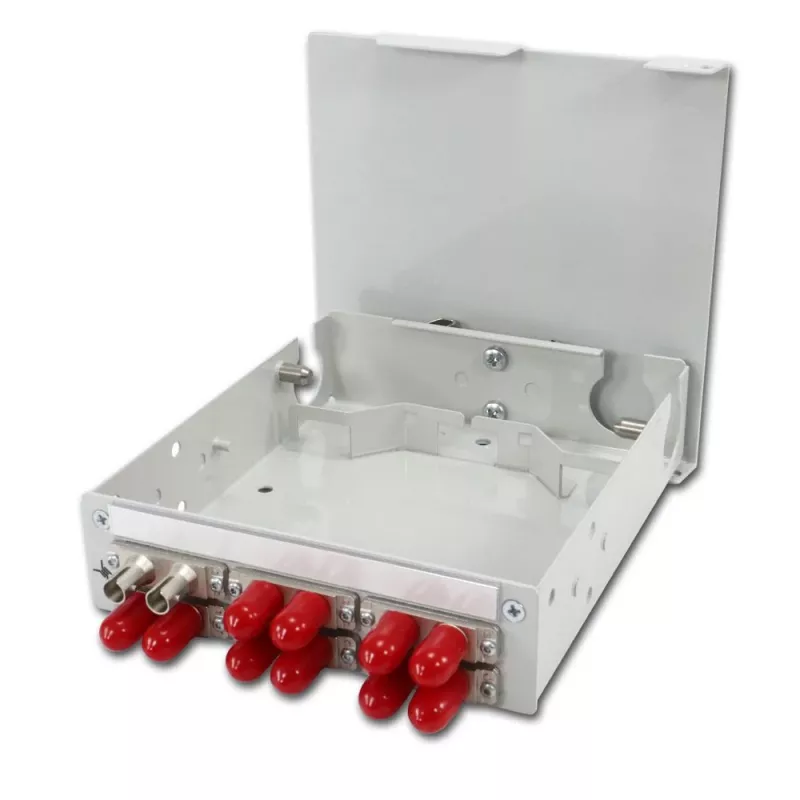

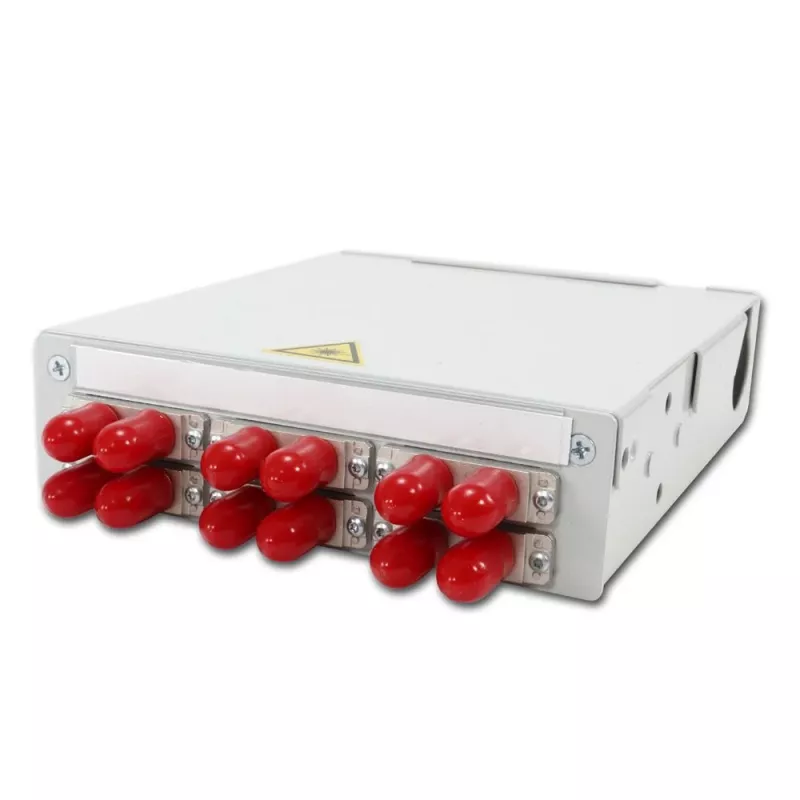

The TELEGÄRTNER STX DIN Rail Distributor H82050A0001 stands out with its all-metal construction and six ST-Duplex ports, providing a robust and reliable fiber optic distribution point for industrial and building cabling environments. Unlike typical plastic distributors, its powder-coated steel housing and metal adapter sleeves ensure durability and stable optical performance in demanding applications.

Highlights

• 6x ST-Duplex ports for multimode fiber connectivity
• DIN rail (TS35) mounting for quick installation in control cabinets

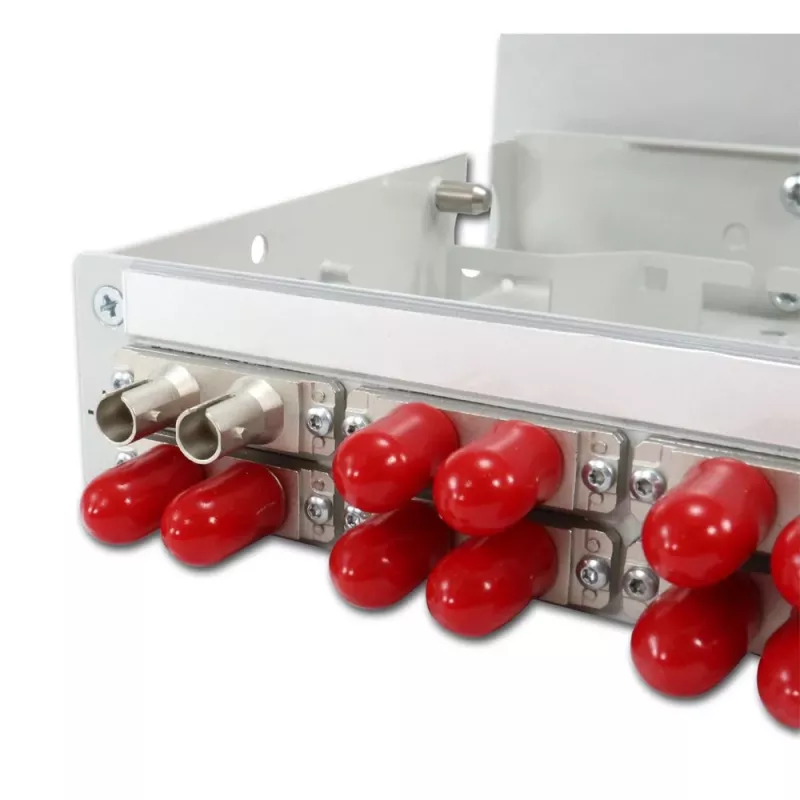

• Metal housing and metal adapter sleeves for mechanical robustness
• Supports OM1, OM2, OM3, and OM4 multimode fibers
• Compact design with total capacity of 12 fibers

In daily use

This distributor is designed for industrial data communication and building cabling where space is limited and reliability is critical. The DIN rail mounting allows integration into standard electrical enclosures, while the ST connectors provide secure, bayonet-style locking. The metal housing protects the internal fiber management from accidental impacts and ensures long-term stability even in environments with temperature fluctuations from -20 °C to +70 °C.

Full specifications

• Product Type: Fiber Optic Distributor
• Mounting Type: DIN Rail (TS35)
• Number of Ports: 6
• Connector Type: ST-Duplex
• Fiber Type Compatibility: Multimode (OM1, OM2, OM3, OM4)
• Total Fiber Capacity: 12 Fibers
• Housing Material: Steel, powder-coated
• Adapter Sleeve Material: Metal
• Operating Temperature: -20 °C to +70 °C
• Storage Temperature: -25 °C to +75 °C
• Application Environment: Industrial, Data Communication, Building Cabling
• Design: Compact, Robust
• Series: STX

Final note

The TELEGÄRTNER STX distributor combines proven ST connectivity with a rugged metal design, making it a dependable choice for professional fiber optic installations.
