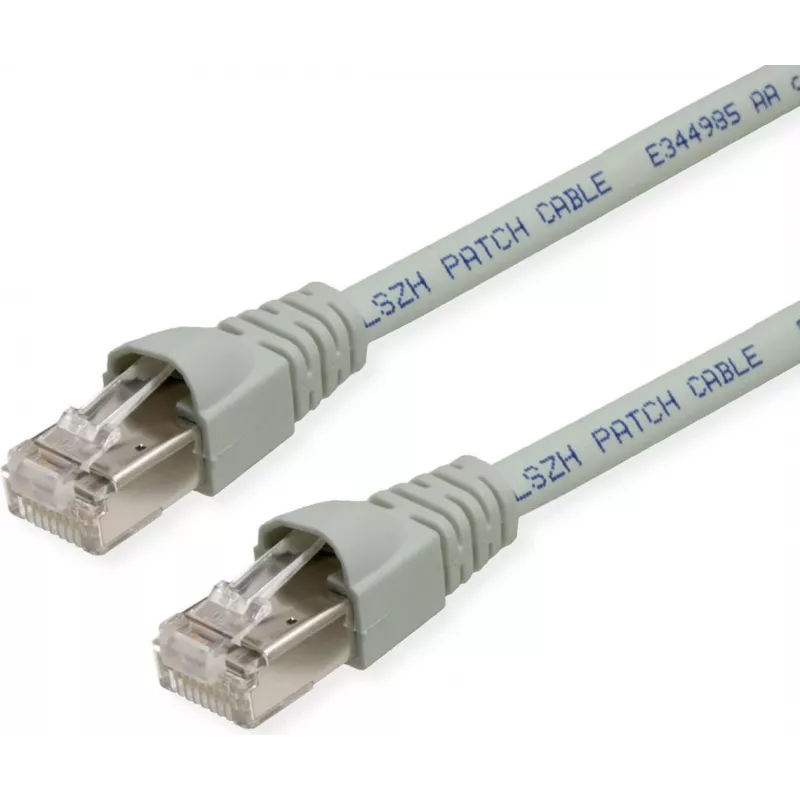

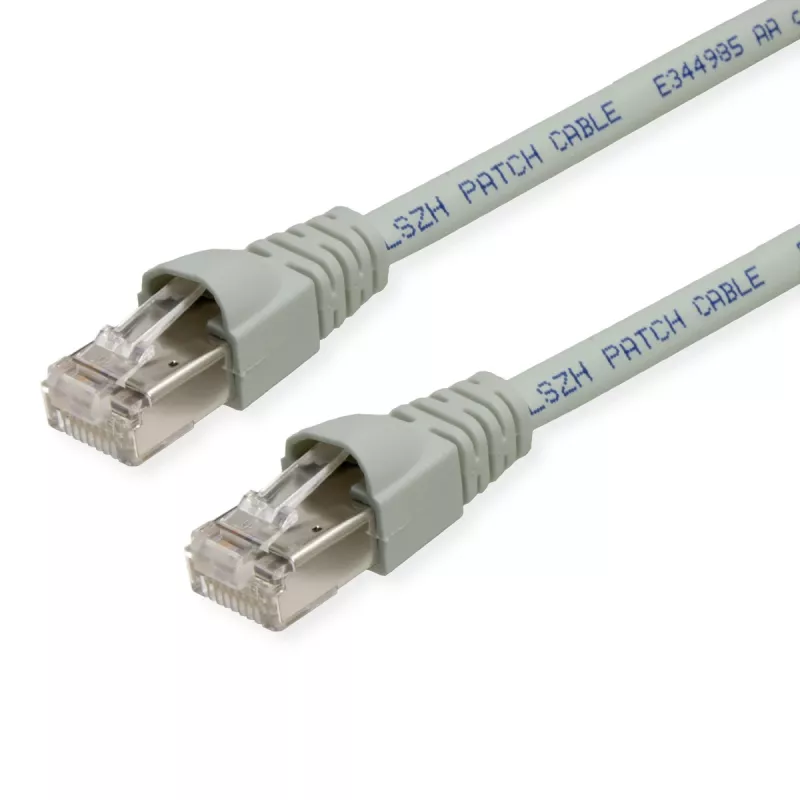

TELEGÄRTNER TEGA L00003A0148 Cable de conexión Cat.6A S/FTP, 4,5 m, gris, LSZH

The TELEGÄRTNER TEGA L00003A0148 is a high-performance Cat.6A patch cable built for reliable 10 Gigabit Ethernet links in demanding environments. Its S/FTP shielding with individually foiled pairs and an overall braid provides excellent protection against alien crosstalk, making it a solid choice for dense network installations where signal integrity is critical.

Highlights

• Cat.6A (Class EA) performance up to 500 MHz
• S/FTP shielding (PiMF) for superior noise immunity
• LSZH jacket: low smoke and halogen-free for safer indoor use
• Gold-plated RJ45 connectors with snagless molded boots
• Supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt)

In daily use

At 4.5 metres, this grey patch cable is ideal for connecting servers, switches, and patch panels in data centres or office networks. The stranded copper conductors (AWG 27/7) keep the cable flexible for easy routing, while the LSZH jacket reduces toxic smoke in case of fire. It meets ISO/IEC 11801 and TIA/EIA-568-C.2 standards, ensuring compatibility with your existing infrastructure.

Full specifications

• Cable length: 4.5 m
• Cable standard: Cat.6a
• Cable shielding: S/FTP
• Connector type: RJ45
• Data transfer rate: 10 Gbps
• Jacket material: LSZH
• Product colour: Grey
• PoE support: PoE, PoE+, PoE++
• Conductor material: Copper
• Conductor gauge: AWG 27/7
• Frequency bandwidth: 500 MHz
• Wiring standard: TIA/EIA 568B
• Boot type: Molded, snagless
• Halogen free: Yes
• Flame retardant: Yes (IEC 60332-1-2)

Final note

TELEGÄRTNER is known for precision-engineered connectivity solutions. This cable delivers the performance and durability expected from a professional-grade Cat.6A link.
