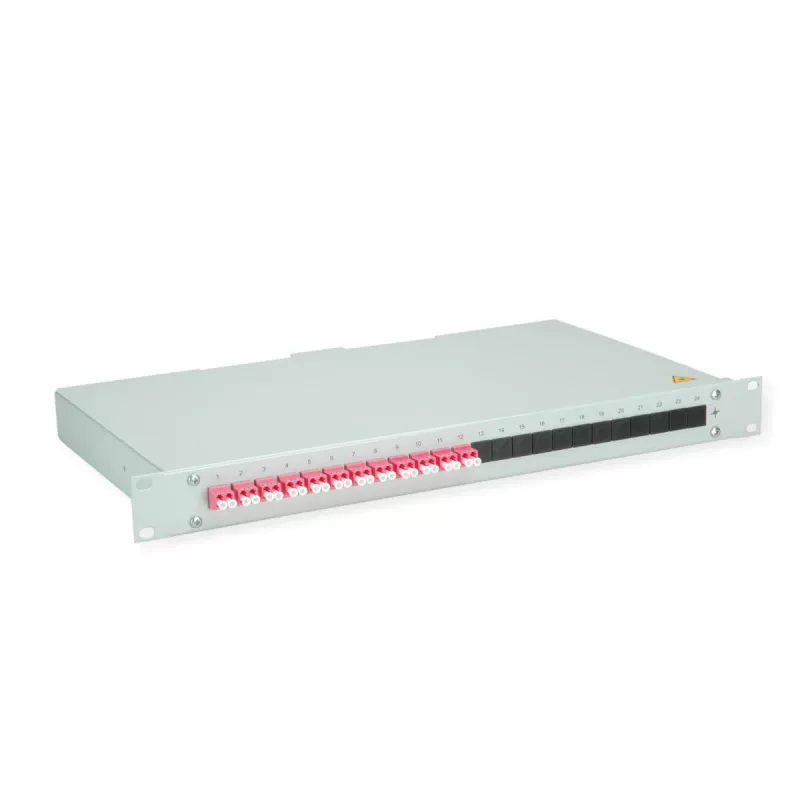

Telegärtner TG 19 1U Caja de empalme de fibra óptica Basic eco, 12x LC dúplex, 24x pigtails LC, OM4 50/125 µm 100131016

Fiber optic splice box for 19-inch rack mounting, pre-assembled with 12 LC-Duplex adapters and 24 LC pigtails, using OM4 multimode fiber (50/125 µm). Ideal for structured cabling in data centers and LANs, offering a splice capacity of 24 fibers in a compact 1U form factor.

Advantages

Pre-assembled design reduces installation time. Integrated cable management ensures tidy fiber routing. OM4 fiber supports high-speed data transmission over multimode links.

Suitable for

• Data centers requiring high-density fiber termination
• Local area networks (LAN) backbone connections
• Telecommunications rooms with 19-inch racks

Key specifications

• Mounting: 19-inch rack, 1U height
• Adapter type: LC-Duplex, 12 ports
• Pigtails: 24x LC connectors, OM4 multimode fiber
• Fiber core/cladding: 50/125 µm
• Splice capacity: 24 single fiber splices
• Series: Telegärtner TG 19, line: Basis eco

Recommendations

Pair with OM4-compatible patch cables and fusion splicer for complete installation.
