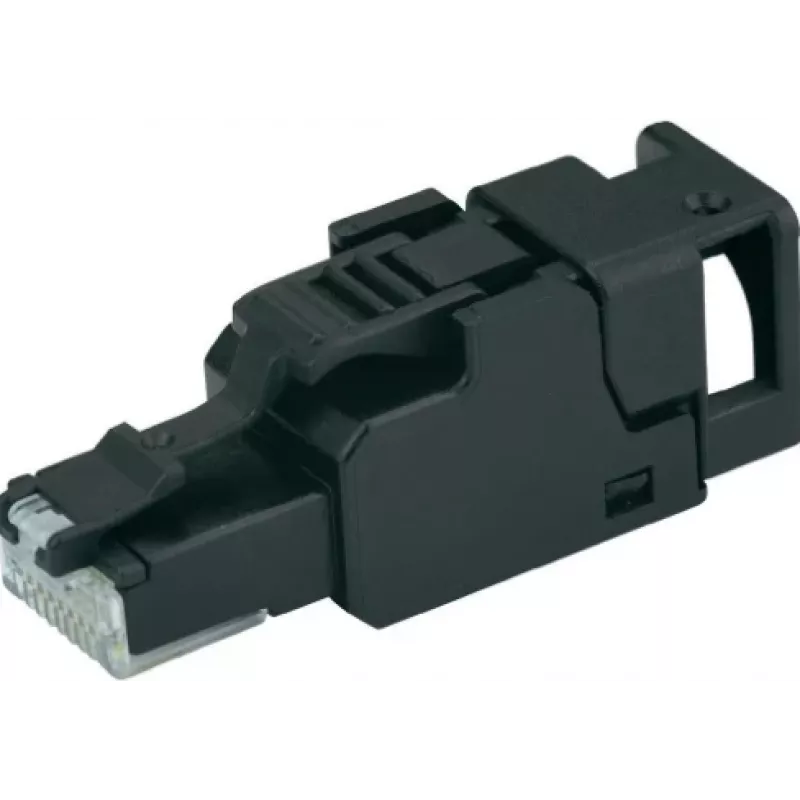

TELEGÄRTNER UFP8 conector RJ45 de montaje en campo, Cat 6a, no apantallado, IDC sin herramientas, con protector antiacodamiento J00026A3000

RJ45 field-terminable plug for Cat 6a networks, offering tool-less IDC termination and integrated bend protection for reliable 10 Gigabit Ethernet connections in the field.

Advantages

Tool-less IDC termination speeds up on-site assembly without sacrificing performance. The integrated bend protection safeguards the cable entry, while re-terminability up to 5 times reduces waste and cost.

Suitable for

• Ethernet and data networks up to 10GBASE-T
• Industrial Ethernet applications
• Solid and stranded wire installations

Key specifications

• Connector type: RJ45 male, 8P8C
• Performance category: Cat 6a, unshielded (UTP)
• Termination: Tool-less IDC
• Wire gauge: AWG 24/1 - 22/1 (solid), AWG 27/7 - 22/7 (stranded)
• Outer cable diameter: 4.5 - 8.0 mm
• Housing material: Polycarbonate (PC)
• Contact plating: Gold over nickel
• Operating temperature: -40 °C to +70 °C
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)

Recommendations

Ideal for field installers and network technicians who need a fast, reliable Cat 6a termination without special tools, especially in industrial or outdoor environments.
