TELMOR Multiswitch 9/16 PREMU multiswitch de satélite en cascada 8 entradas SAT 1 entrada TER 16 salidas de usuario 9 salidas en cascada conectores tipo F

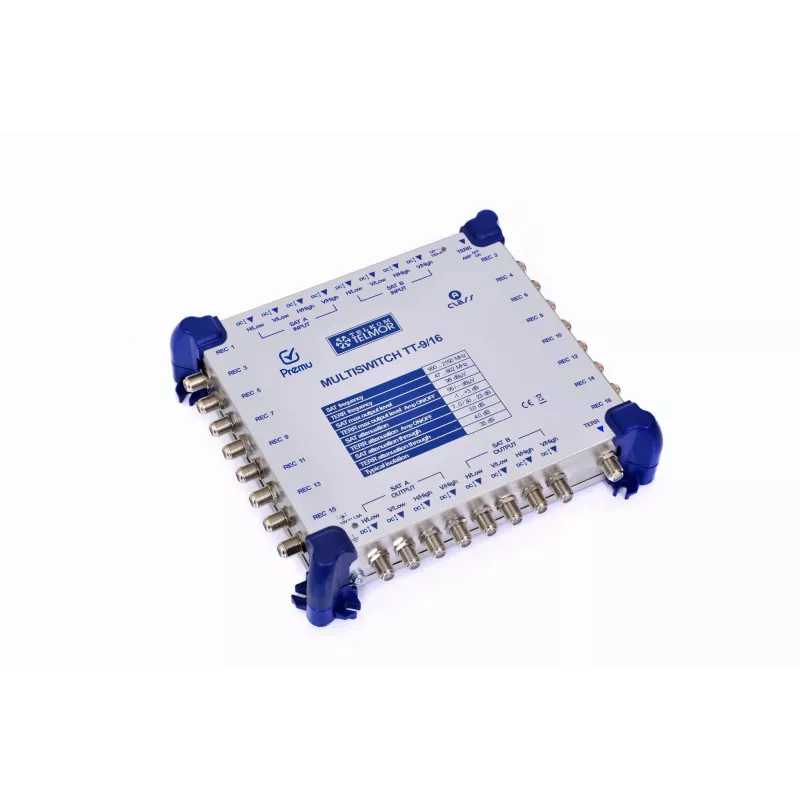

The TELMOR Multiswitch 9/16 PREMU is a cascadable satellite multiswitch with 8 SAT inputs, 1 TER input, 16 subscriber outputs, and 9 cascade outputs. It features F-type connectors and is designed for signal reception from two satellites, such as ASTRA and HotBird.

Key features

• Output response curve with built-in cable pre-correction
• Very high isolation between channels (35 dB)
• Polish design and manufacturing
• Signal reception from two satellites, e.g., ASTRA and HotBird
• Very low attenuation in the SAT path
• Excellent network connections thanks to spring-loaded connectors
• Priority warranty service
• Switchable terrestrial television path
• DiSEqC 2.0

Specifications

• Brand: Telmor
• Model: WSM-0102-004-01
• Number of inputs: 9
• Number of outputs: 25
• Power supply type: External
• Connector type: F-type
