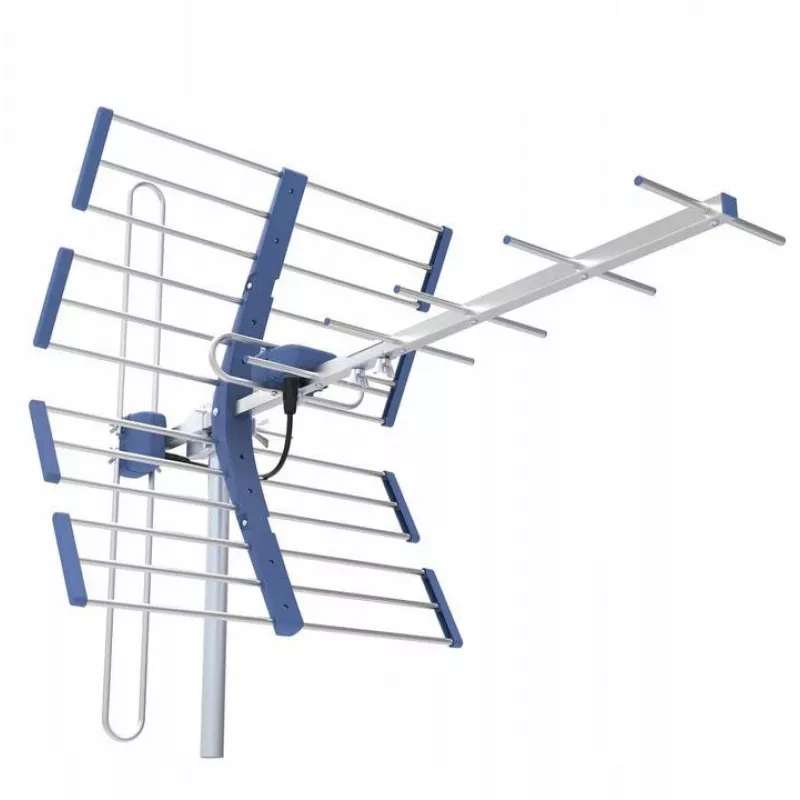

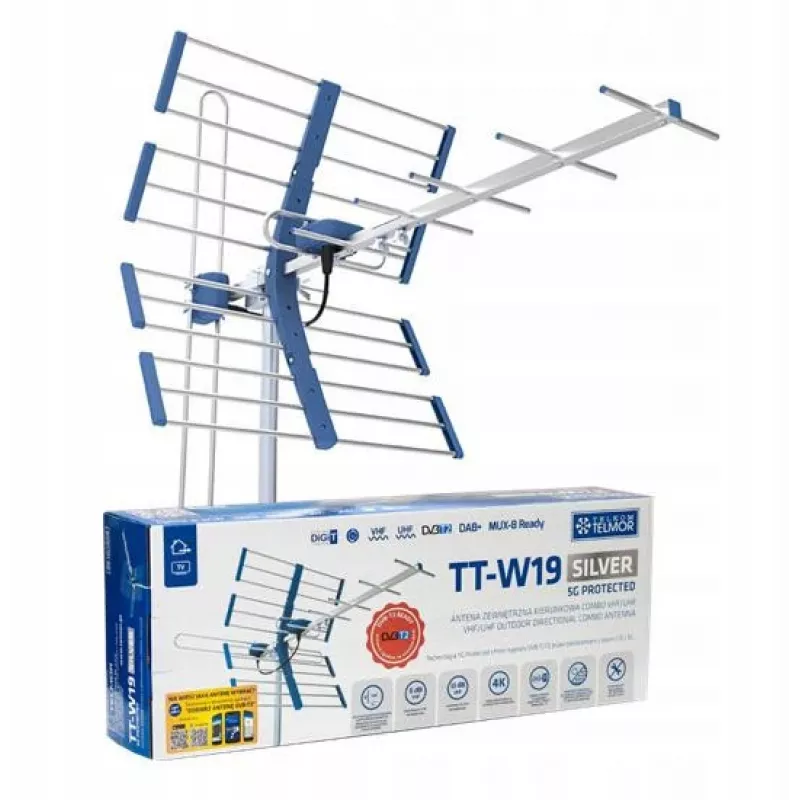

TELMOR TT W19 SILVER COMBO Antena DVB-T2 protegida 5G

The TELMOR TT W19 SILVER COMBO is a high-performance outdoor directional wideband antenna designed for DVB-T2, DAB+, and FM radio reception. With 19 aluminum elements and integrated LTE/5G filtering, it ensures clear digital TV and radio signals while blocking interference from mobile networks above 694 MHz. The antenna features a sleek silver finish, foldable elements for easy transport, and a robust mast clamp mounting system suitable for poles up to 60 mm diameter.

Advantages

This antenna offers excellent gain (VHF 6-8 dBi, UHF 10-12 dBi) for reliable reception even in weak signal areas. The integrated 5G filter protects against interference from modern mobile networks, ensuring uninterrupted viewing. Its durable construction with UV-resistant plastic and aluminum elements guarantees long-lasting performance outdoors.

Suitable for

• Digital terrestrial TV (DVB-T2 / HEVC)
• Digital radio (DAB+)
• FM radio reception
• Outdoor installation in areas with moderate to weak signal strength

Key specifications

• Antenna Type: Outdoor Directional Wideband
• Frequency Bands: VHF (174-230 MHz), UHF (470-694 MHz)
• Gain: VHF 6-8 dBi, UHF 10-12 dBi
• LTE/5G Filtering: Integrated (blocks >694 MHz)
• Impedance: 75 Ohm
• Connector: F-type
• Number of Elements: 19
• Polarization: Horizontal or Vertical (selectable)
• Mounting: Mast clamp (up to 60 mm pole)
• Material: Aluminum, UV-resistant plastic
• Colour: Silver
• Power Supply: Passive (no external power required)

Recommendations

For optimal performance, mount the antenna as high as possible with a clear line of sight to the transmitter. Use high-quality 75 Ohm coaxial cable and F-type connectors. The antenna is passive and does not require a power supply.
