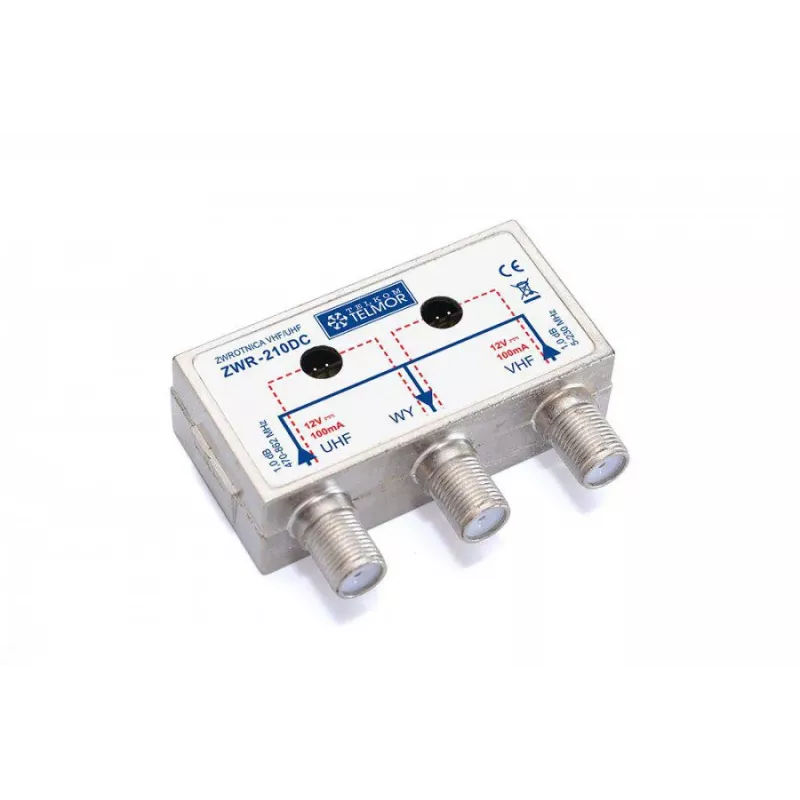

TELMOR ZWR-210DC Diplexor / Combinador de antena

The TELMOR ZWR-210DC is a high-quality antenna diplexer/combiner designed to merge terrestrial TV and satellite TV signals into a single cable. Ideal for indoor use, this compact device ensures minimal signal loss and excellent isolation, making it a reliable solution for modern home entertainment setups.

Advantages

Combines TV and SAT signals with low insertion loss (<2.0 dB) and high isolation (>20 dB). Die-cast zinc housing with nickel plating provides superior shielding (>75 dB, Class A). DC pass on SAT input (max 500mA) allows powering of LNB or amplifier through the same cable.

Suitable for

• Connecting DVB-T/T2 and DVB-S/S2 receivers to a single coaxial cable
• Indoor installations where space is limited
• Systems requiring combined TV and satellite signal distribution

Key specifications

• Product Type: Antenna Diplexer / Combiner
• Inputs: 2 (1x Terrestrial TV, 1x Satellite TV)
• Outputs: 1 (Combined TV/SAT)
• Terrestrial TV Frequency Range: 5 - 862 MHz
• Satellite TV Frequency Range: 950 - 2400 MHz
• Insertion Loss: <2.0 dB (both paths)
• TV-SAT Isolation: >20 dB
• Impedance: 75 Ohm
• DC Pass: Yes, on SAT input (max 500mA)
• Connectors: F-type (3x)
• Shielding Effectiveness: >75 dB (Class A)
• Housing Material: Die-cast zinc, nickel-plated
• Application: Indoor use
• Operating Temperature: -20°C to +50°C
• Compatibility: DVB-T, DVB-T2, DVB-S, DVB-S2, DAB, FM

Recommendations

For optimal performance, use high-quality F-type connectors and 75 Ohm coaxial cable. Ensure the SAT input is used for satellite signals only to maintain isolation.
