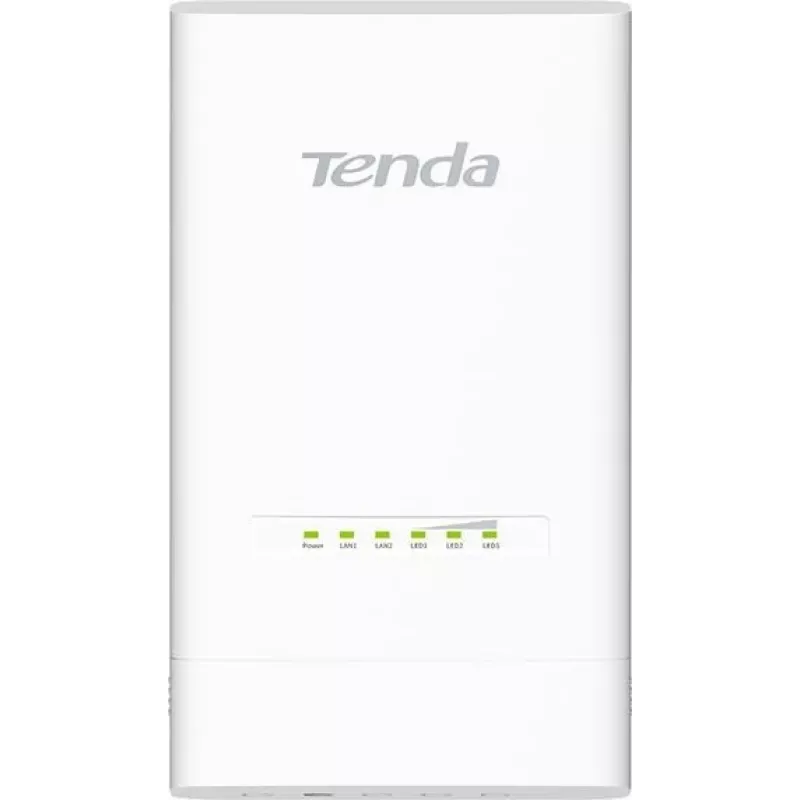

Tenda CPE O4 punto de acceso

The Tenda CPE O4 is an outdoor 5 GHz access point and CPE designed for point-to-point and point-to-multipoint links, video monitoring, and broadband access. It features an integrated 12 dBi directional antenna providing a transmission range of up to 5 km in direct line of sight, and supports IEEE 802.11ac/a/n with a maximum throughput of 867 Mb/s.

Key features

• High-power 12 dBi antenna for long-range coverage up to 5 km
• Weather-resistant construction for reliable operation in harsh conditions
• 5 GHz band reduces interference for stable and fast connections
• Plug and Play for quick and simple installation
• AP and CPE modes for versatile operation
• Remote management for full control from any location
• MIMO technology increases throughput and connection reliability
• Network security with advanced encryption protocols

Specifications

• Brand: Tenda
• Model: O4
• Device type: Outdoor 5 GHz access point (CPE)
• Applications: PtP (Point to Point), P2MP (Point to Multi-Point), video monitoring, broadband access
• Wi-Fi standard: IEEE 802.11ac/a/n
• Operating frequency: 5 GHz
• Maximum throughput: 867 Mb/s
• RF output power: Up to 20 dBm (adjustable)
• Antenna: Integrated, directional, 12 dBi
• Antenna gain: 12 dBi
• Transmission range: Up to 5 km (line of sight, with direct visibility)
• Interfaces: 1 x Gigabit Ethernet port 10/100/1000 Mbps (Auto MDI/MDIX)
• Power supply: Passive PoE 24 V DC / 0.5 A (PoE injector included)
• Power consumption: < 8.5 W
• Operating modes: Access Point (AP), Station (Client), WISP, AP Router, Repeater
• Protection: IP65 (weatherproof housing), 6000 V lightning protection
• Security: 64/128-bit WEP, WPA-PSK, WPA2-PSK, MAC filtering
• Management: Web browser, Tenda WiFi software/app
• Other functions: Automatic bridging for easy connection, RSSI indicator, VLAN support, Watchdog
• Operating temperature: -30°C ~ +60°C
• Operating humidity: 5% ~ 95% (non-condensing)
• Dimensions: 270 × 94.86 × 67.5 mm
• Mounting: Outdoor, pole mount
• Ethernet LAN: Yes
