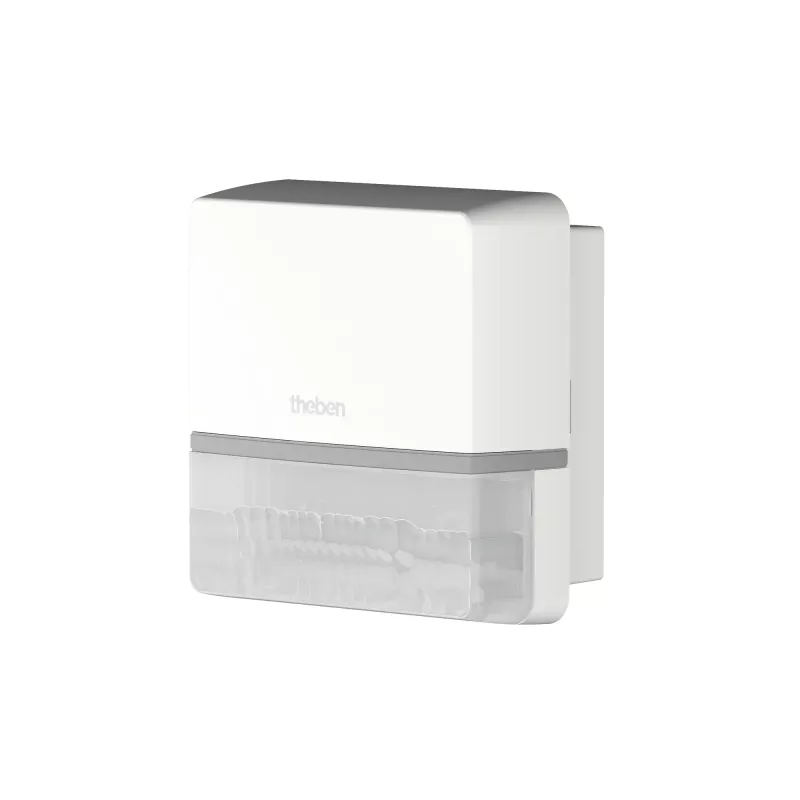

Theben TECTA D180i WH detector de movimiento, montaje en pared, 180°, 14 m, blanco 1010105

Detecting motion reliably is essential for automatic lighting control in corridors, stairwells, and outdoor areas. The Theben TECTA D180i WH motion detector provides a 180° detection angle and a 14 m range, ensuring broad coverage for wall-mounted applications.

Who is it for

This motion detector is suitable for electricians, facility managers, and homeowners who need energy-efficient lighting automation in residential, commercial, or industrial settings.

Main features

• Passive infrared (PIR) sensor for motion detection
• 180° detection angle and 14 m range
• Adjustable light sensitivity from 5 to 1000 lux
• Adjustable switch-off delay from 10 seconds to 30 minutes
• High switching capacity: 2300 W for incandescent/halogen, 600 W for LED
• Manual override via external push button
• IP54 rated for dust and splash water protection
• UV-stabilised polycarbonate housing for durability

Specifications

• Sensor type: Passive infrared (PIR)
• Mounting type: Wall
• Detection angle: 180°
• Detection range: 14 m
• Optimal installation height: 2.5 m
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity (incandescent/halogen): 2300 W
• Switching capacity (LED): 600 W
• Light sensor range: 5–1000 lux
• Time setting range: 10 s – 30 min
• International Protection (IP) code: IP54
• Protection class: II
• Ambient temperature: -25 °C to +50 °C
• Product colour: White
• Housing material: UV-stabilised polycarbonate
• Power consumption (standby): 0.5 W
• Manual override: Yes

Tips

For best performance, install the detector at the recommended height of 2.5 m and avoid pointing it directly at heat sources or moving objects like trees, which may cause false triggers.
