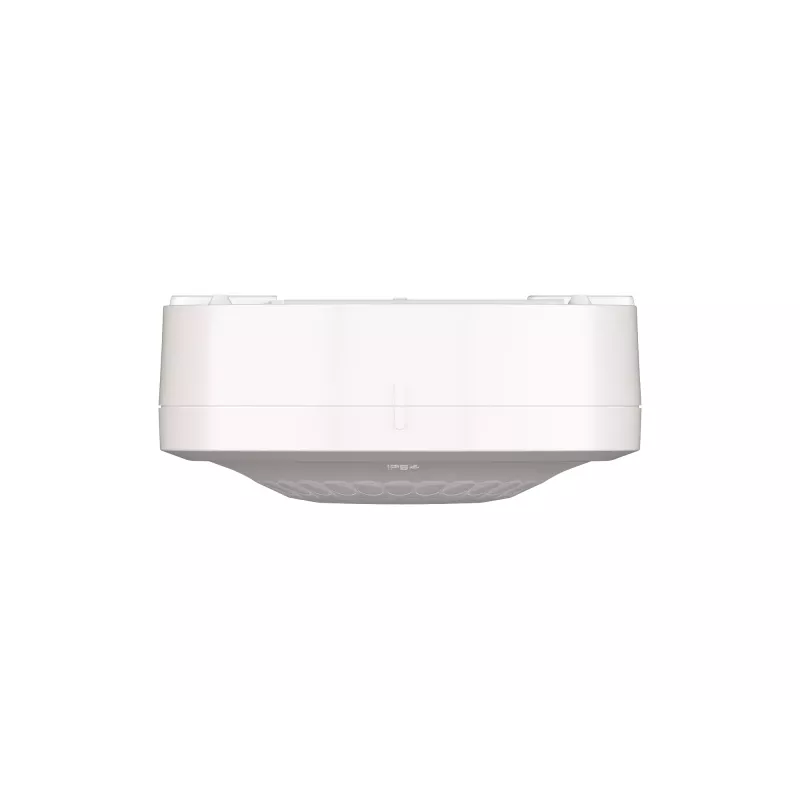

THEBEN THE LUXA 103 S360-100-12 AP WH Detector de presencia, montaje en techo, detección 360°, alcance 10 m, 230 V AC, IP54, blanco

Presence detector for ceiling surface mounting with a 360° detection angle and a diameter range of up to 10 metres at a 3 m mounting height. The THE LUXA 103 S360-100-12 AP WH reliably switches lighting based on presence and ambient light level, making it ideal for offices, corridors, and public buildings.

Advantages

Automatic lighting control reduces energy consumption while maintaining comfort. The selectable fully automatic or semi-automatic operation adapts to different user preferences. With an IP54 protection rating, the detector withstands dust and splashing water, suitable for indoor and sheltered outdoor areas. The UV-stabilised polycarbonate housing ensures long-term durability even under fluorescent lighting.

Suitable for

• Offices and meeting rooms
• Corridors and stairwells
• Public buildings and schools
• Storage and utility rooms

Key specifications

• Detection angle: 360°
• Detection range: up to 10 m diameter at 3 m height
• Supply voltage: 230 V AC, 50-60 Hz
• Switching output: 1x light relay, max 10 A resistive, 6 A LED/fluorescent
• Light sensor range: 5 – 2000 Lux
• Time delay: 10 s – 60 min
• Protection class: IP54
• Operating temperature: -25 °C to +50 °C
• Recommended mounting height: 2 – 4 m
• Standby power consumption: < 0.5 W
• Material: UV-stabilised polycarbonate
• Colour: White

Recommendations

For optimal performance, mount the detector at a height of 2.5 to 3 metres in areas with stable ambient temperature. Combine with LED luminaires to maximise energy savings and ensure compatibility with the 6 A LED switching capacity.
