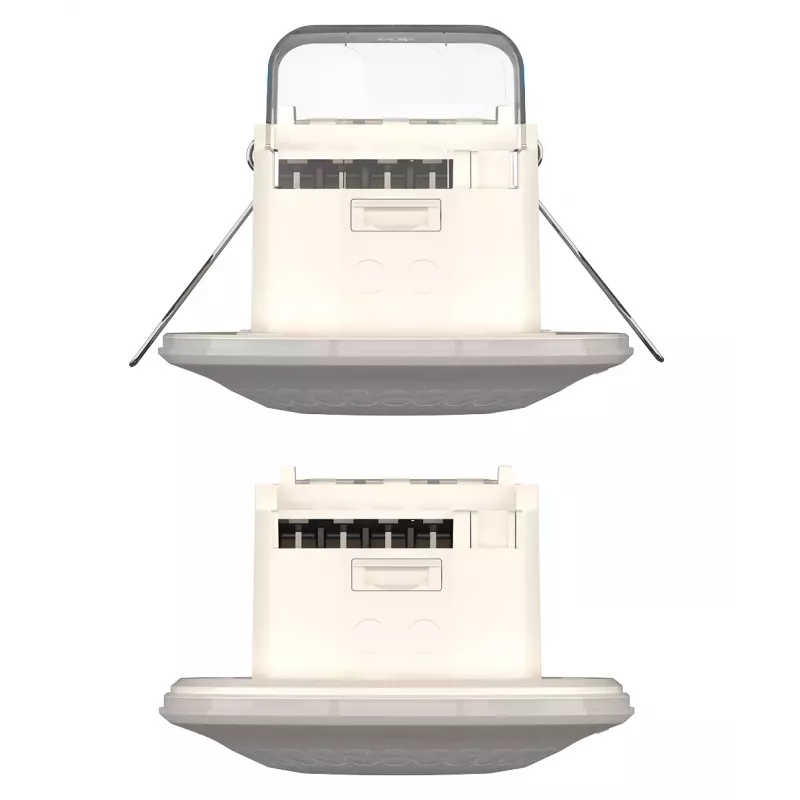

THEBEN theLuxa 103 S360-100-12 DE-UP WH Detector de presencia pasivo por infrarrojos de techo, montaje empotrado, Blanco

In a busy office corridor, the lights switch on the moment someone steps in and switch off shortly after they leave, thanks to the THEBEN theLuxa 103 S360-100-12 DE-UP WH. This flush-mounted ceiling presence detector uses passive infrared technology to monitor a 360-degree area with a diameter of up to 12 metres, ensuring reliable detection of even slight movements. Designed for indoor use, it is ideal for automatic lighting control in offices, meeting rooms, corridors, and similar spaces where hands-free operation and energy savings matter.

Key specifications

• Passive infrared (PIR) sensor with 360-degree detection angle
• Detection range: up to 12 metres in diameter at a mounting height of 3 metres
• Flush mounting in suspended ceilings (DE-UP) with included mounting hardware
• White housing blends seamlessly with modern interiors
• Operates on 230 V AC mains power
• Compact dimensions: 103 mm diameter, 48 mm height
• IP20 protection rating for indoor use only
• Lightweight at just 0.12 kg for easy installation

Why choose it

This presence detector combines precise motion sensing with a discreet design. The 360-degree coverage eliminates blind spots, so lights respond exactly when needed. Its flush-mount installation keeps the ceiling looking clean and unobtrusive, while the white finish matches most ceiling tiles and paint colours. By automating lighting, it reduces energy consumption and extends lamp life, making it a smart investment for commercial and residential projects alike.

Ideal use cases

• Office spaces and open-plan work areas
• Meeting and conference rooms
• Corridors, hallways, and stairwells
• Reception areas and lobbies
• Classrooms and training rooms
• Storage and utility rooms

Good to know

The theLuxa 103 S360-100-12 DE-UP WH is a presence detector, not a motion detector: it responds to the presence of people even when they are sitting still, making it perfect for offices where employees work at desks. Installation requires a standard flush-mount box in a suspended ceiling; the detector is not suitable for solid ceilings without an adapter. The device is designed for 230 V AC mains connection and must be installed by a qualified electrician. For optimal performance, avoid placing it near heat sources or air vents that could cause false triggers. The IP20 rating means it is intended for dry indoor environments only.
