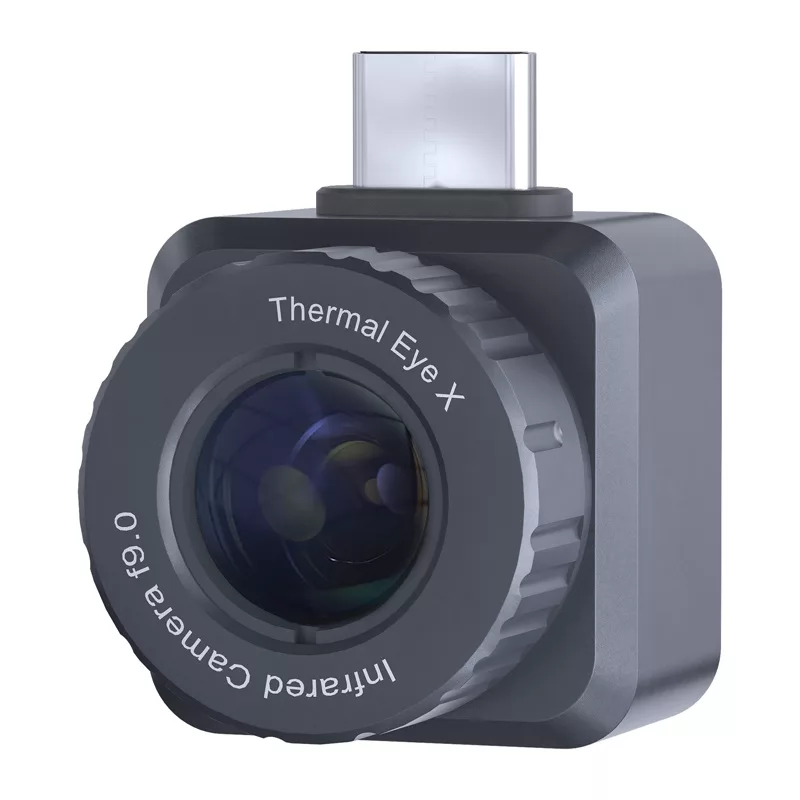

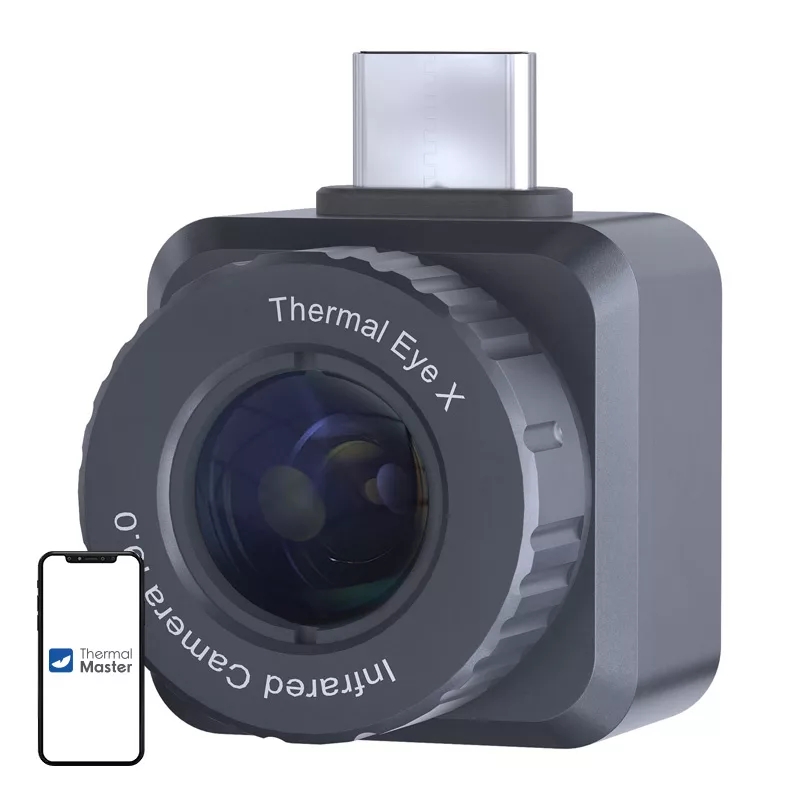

THERMAL MASTER X2 Cámara térmica mini USB-C

The THERMAL MASTER X2 is a compact USB-C mini thermal camera designed for Android smartphones with OTG support. It transforms your mobile device into a powerful thermal imaging tool for professional inspections, building diagnostics, electrical maintenance, and DIY projects.

Advantages

High-resolution 256x192 thermal sensor with 12μm pixel pitch delivers crisp thermal images. Wide temperature range from -20°C to 550°C covers most industrial and household applications. Low power consumption (<350mW) ensures extended use without draining your phone battery. Rugged design with 1-meter drop protection for durability in the field.

Suitable for

• Building inspection and energy auditing
• Electrical panel and circuit troubleshooting
• HVAC system diagnostics
• Plumbing leak detection
• Automotive maintenance
• Outdoor and wildlife observation

Key specifications

• Thermal Resolution: 256x192 pixels
• Pixel Pitch: 12μm
• NETD: <50mK (@25°C, F#1.0)
• Frame Rate: 25Hz
• Temperature Measurement Range: -20°C to 550°C (-4°F to 1022°F)
• Measurement Accuracy: ±2°C or ±2% (whichever is greater)
• Field of View: 56° x 42°
• Spectral Range: 8-14μm
• Focus Mode: Fixed
• Emissivity Adjustment: 0.01-1.00
• Temperature Units: Celsius, Fahrenheit, Kelvin
• Interface: USB Type-C
• Compatibility: Android Smartphones with USB-C and OTG support
• Power Consumption: <350mW
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Image Palettes: Iron Red, Rainbow, White Hot, Black Hot, Arctic, Lava, etc.
• Image Modes: Thermal, Fusion, Picture-in-Picture
• Drop Protection: 1 meter
• App Features: Spot/Line/Area temperature measurement, photo/video recording, alarm

Recommendations

For best performance, use with a smartphone that supports USB OTG and install the official THERMAL MASTER app. The camera is not compatible with iOS devices.
