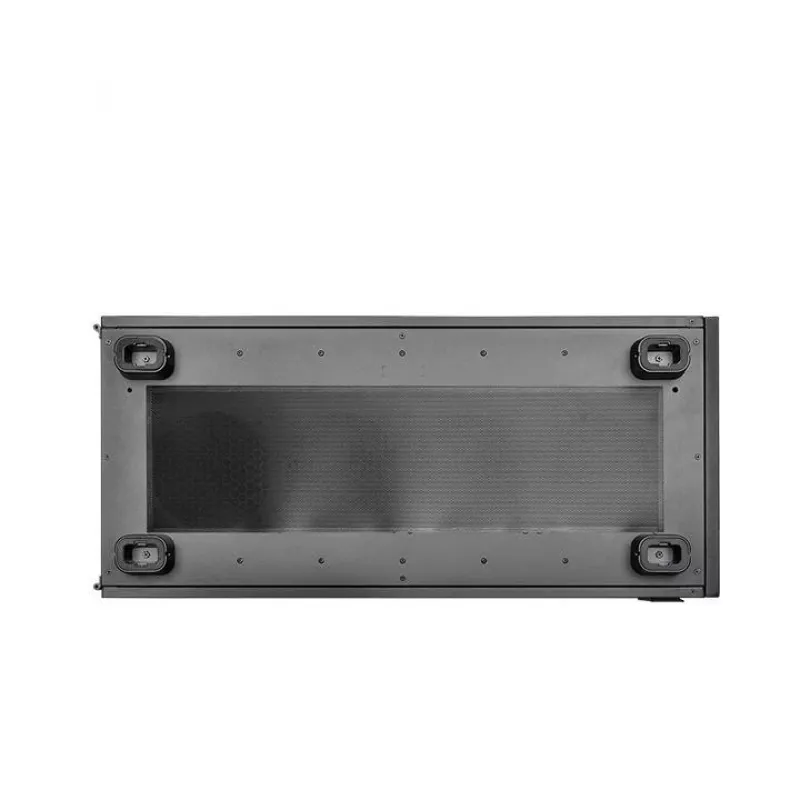

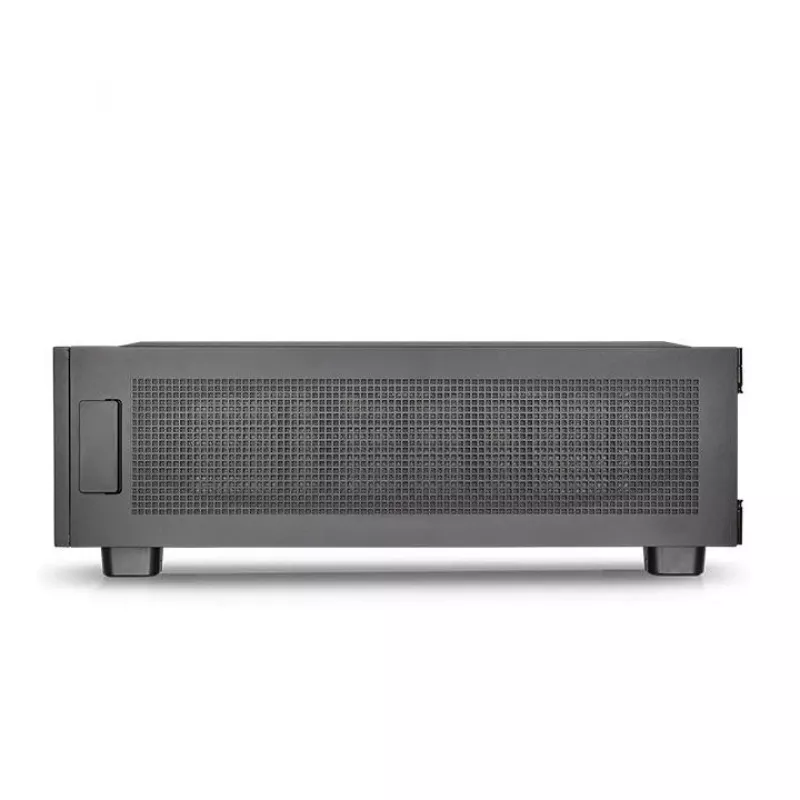

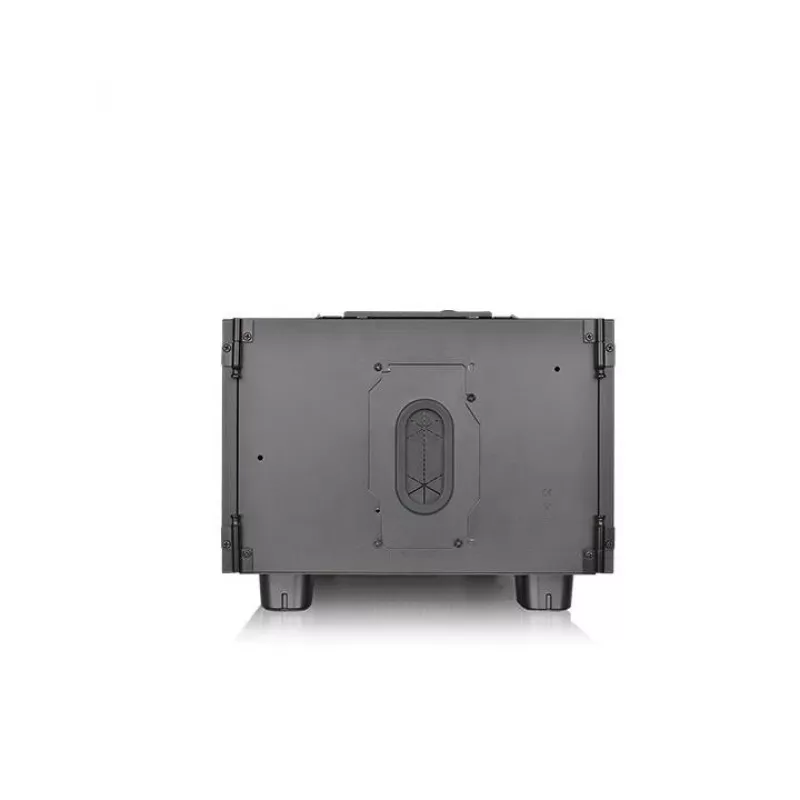

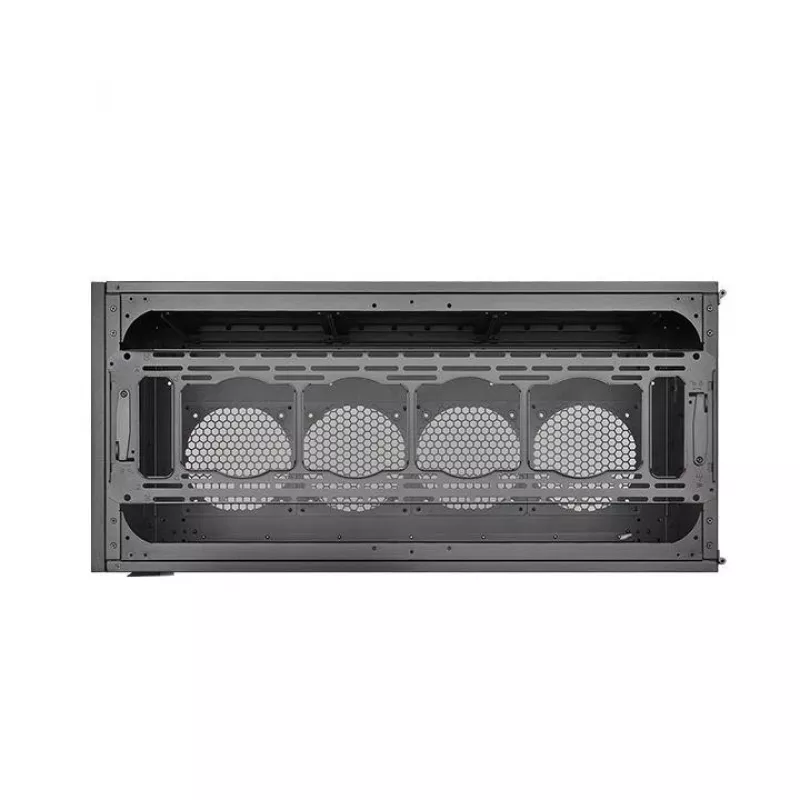

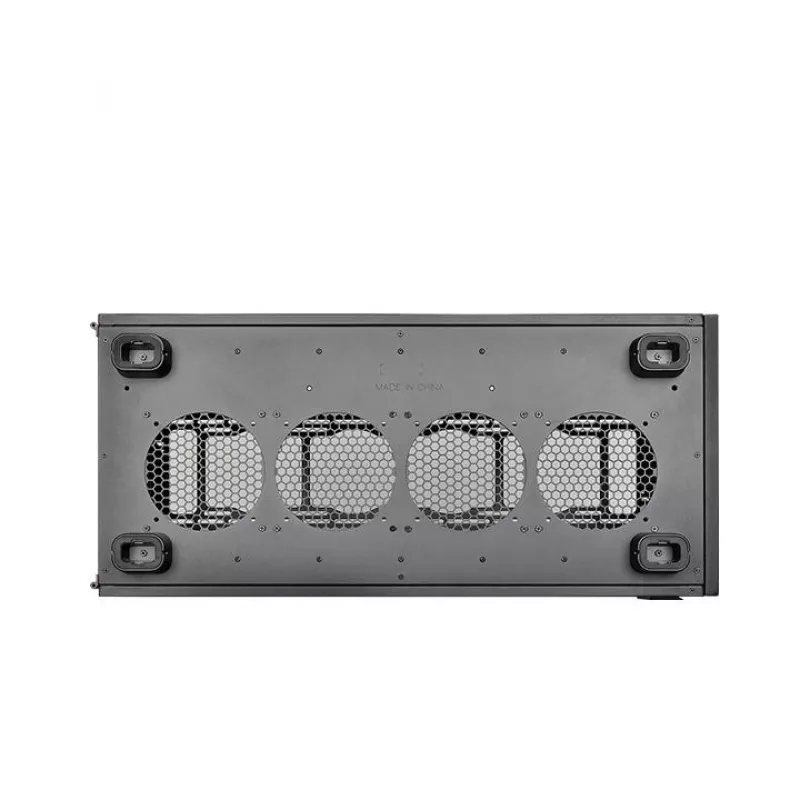

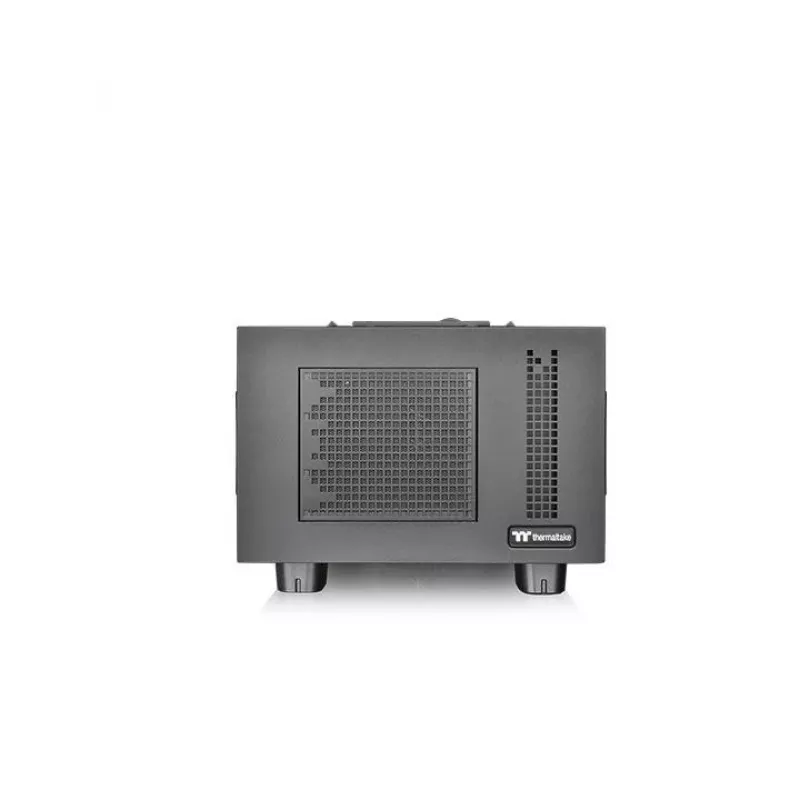

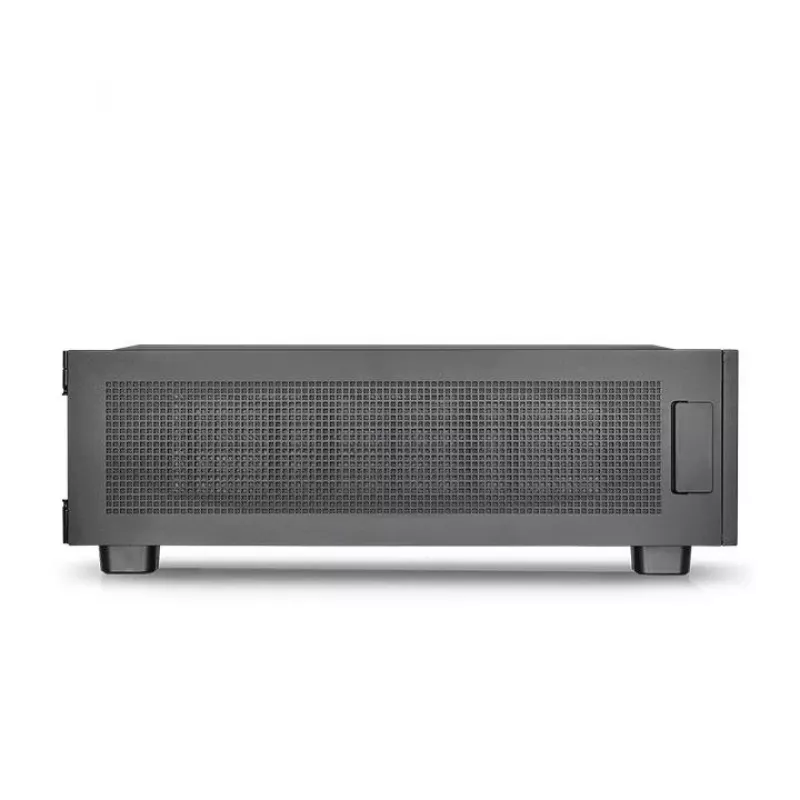

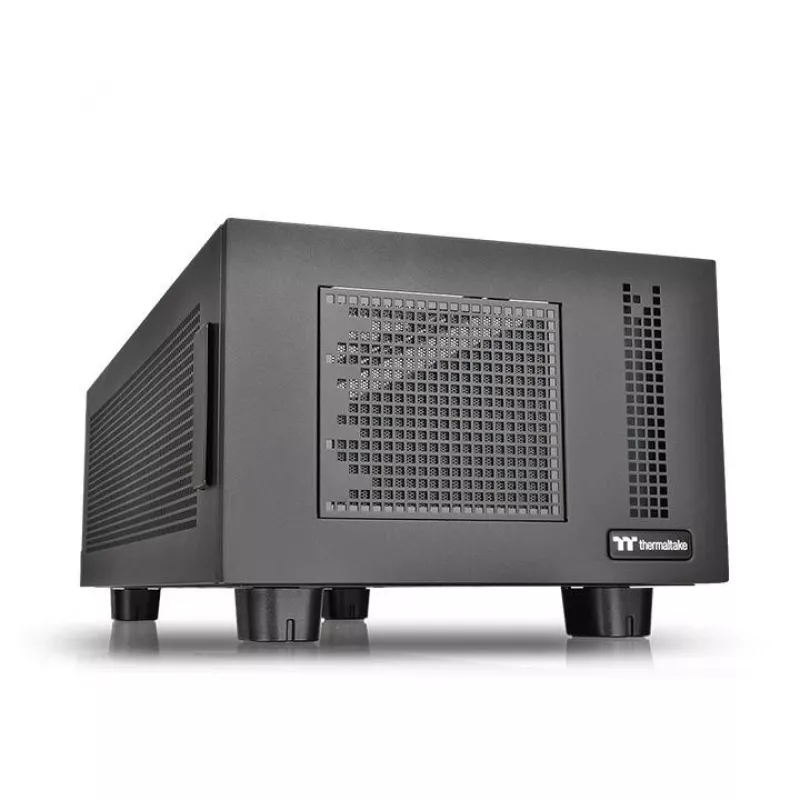

Thermaltake Core P100 negro

The Thermaltake Core P100 pedestal is a modular PC case designed to extend the Core W series with additional expandability for cooling, storage and power. Constructed from SPCC steel in black finish, the Core P100 connects with Core W100/WP100 chassis in stacked configurations to increase radiator capacity, add storage racks or provide an optional separate PSU mount. It supports multiple fan and radiator layouts to enhance airflow and liquid-cooling options while preserving main chassis space.

Advantages

The Core P100 offers a dismantlable modular design that allows interchangeable HDD cage sections and configurable placement with Core W100 for flexible system builds. It supports large fan and radiator configurations (4 x 120 mm or 4 x 140 mm) and an optional PSU mount to separate or supplement the main system power. The pedestal’s SPCC construction and stackable compatibility deliver robust support for heavy cooling solutions and storage upgrades without reducing GPU length options.

Suitable for

• High-performance desktop builds that require extra cooling capacity
• Custom liquid-cooling setups and extended radiator installations
• Dual-chassis or stacked systems for dedicated top/bottom cooling layouts
• Users who need additional storage racks or an optional separate PSU mount

Key specifications

• Model: Thermaltake Core P100 (pedestal)
• Material: SPCC
• Colour: Black
• Supported fan slots: side 120/140 mm; top 120/140/200 mm; supports up to 4 x 120 mm or 4 x 140 mm radiator/fan solutions
• Stacking compatibility: Designed to stack with Core W100/WP100; maximum supported radiator length when stacked: 600 mm (front)
• Power supply: Optional mount (PSU not included)
• Weight: 8.7 kg

How to use

Install the Core P100 as a standalone pedestal or stack it with a Core W100/WP100 chassis by aligning the mounting points and securing the panels. Configure internal HDD cages and storage racks as needed, then mount fans, radiators or an optional PSU according to your cooling and power requirements. Ensure cable routing and component placement preserve GPU clearance and provide unobstructed airflow through the configured fan/radiator locations.

Recommendations

For best results, plan radiator and fan placement before final assembly: use the pedestal to add radiator surface area or separate the PSU to reduce internal heat. Verify maximum radiator length and GPU clearance when stacking with Core W100 to ensure compatibility with your chosen cooling components.
