Ventilador Thermaltake Pure 20 LED 20 cm 800 rpm Transparente

The Thermaltake Pure 20 LED is a 200 mm transparent DC case fan that balances quiet operation, effective airflow and visible blue LED lighting. Rated at 800 RPM, the fan delivers targeted air movement with a maximum static pressure of 0.996 mmH2O to help maintain stable system temperatures while adding a subtle lighting effect to compatible chassis.

Advantages

The Pure 20 LED combines a large 200x30 mm frame and blade geometry optimized for focused airflow and reduced noise, providing efficient cooling performance at low speed. Its long-life sleeve bearing improves reliability and extends service life. The shaved frame design simplifies installation in many enclosures, especially Thermaltake chassis, and the built-in blue LED offers visible illumination without additional cabling.

Suitable for

• Airflow improvement in mid-tower and full-tower PC cases
• Replacing or upgrading existing 200 mm case fans
• Systems requiring low-noise cooling at moderate airflow

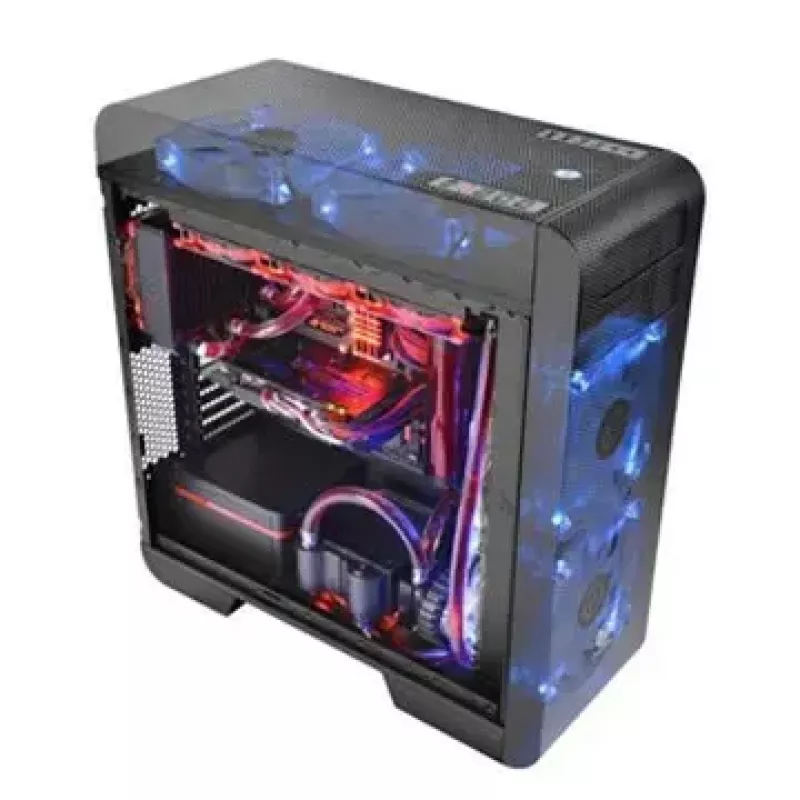

• Builds where visible blue LED lighting is desired

Key specifications

• Size: 200 mm (200 x 30 mm)
• Speed: 800 RPM
• Maximum airflow: 129.639 CFM
• Maximum noise level: 28.2 dB
• Maximum static pressure: 0.996 mmH2O
• Bearing type: Long-life sleeve bearing
• Lighting: Blue LED
• Color/finish: Transparent

How to use

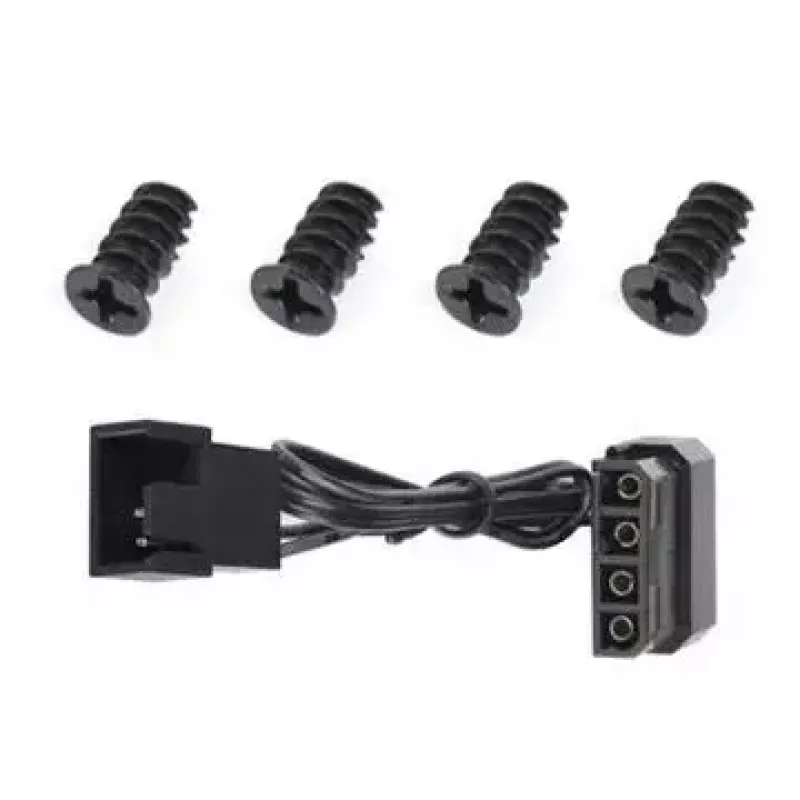

Mount the Pure 20 LED into a compatible 200 mm fan location in your computer chassis, aligning the mounting holes and securing the fan with provided screws or standard fan screws. Connect the fan's power cable to the appropriate 3-pin or 4-pin header on the motherboard or to a compatible fan power connector from the power supply, ensuring correct orientation for voltage and control. Route cables to avoid obstructing airflow and test operation at system startup.

Recommendations

For best results, install the Pure 20 LED as either an intake or exhaust in a 200 mm mounting position to complement your case airflow. Keep fan blades and surrounding vents free of dust; clean periodically with compressed air or a soft brush. If quieter operation or speed control is required, use a motherboard fan header with PWM or a fan controller compatible with the unit.
