Conector hembra BNC, Noname ET-BNC-F, tipo desmontable, terminación de cable coaxial

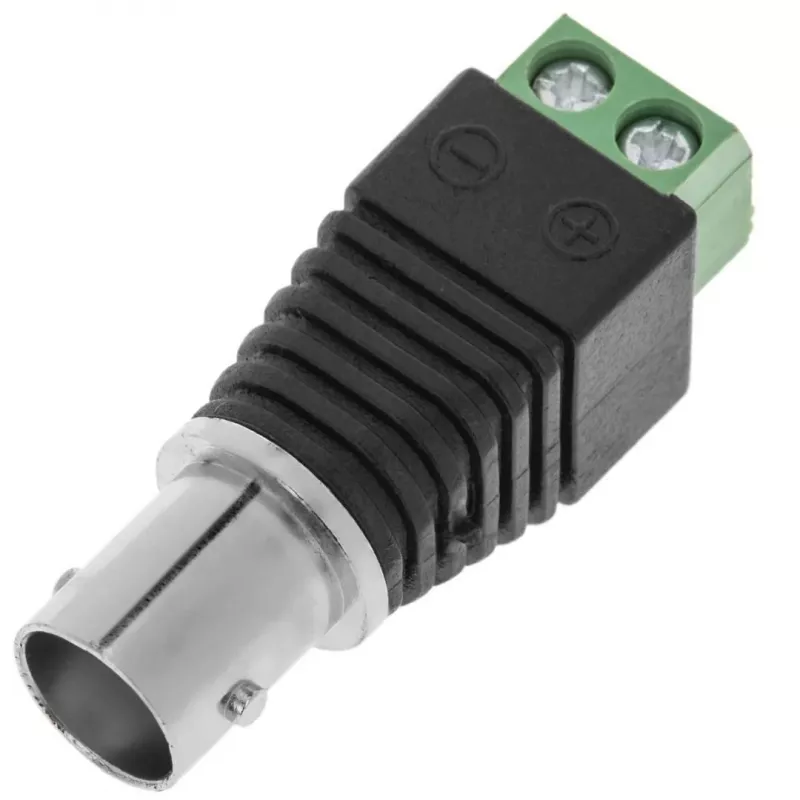

Removable BNC female connector Noname ET-BNC-F is a coaxial cable termination designed to provide a standard BNC female interface for video, RF and data signal connections. The connector is intended for applications where a removable coupling is required, enabling quick connect/disconnect operations and straightforward replacement during installation, testing or maintenance. It accepts standard BNC male plugs and is commonly used in CCTV systems, broadcast equipment and measurement setups where modular cabling is preferred.

Advantages

The removable construction allows fast and repeatable connection and disconnection without soldering, reducing downtime during troubleshooting and equipment swaps. As a female BNC interface, it offers secure bayonet locking and stable signal transmission for analog and digital video, RF and low-frequency data signals. Its compact design is suitable for tight installations and rack-mounted assemblies while maintaining compatibility with widely used BNC male plugs.

Suitable for

• CCTV camera and surveillance system cabling
• Broadcast and studio signal patching
• Test equipment and measurement instrument connections
• Temporary or modular cabling where quick disconnect is needed
• Prototyping and field-service replacement of coaxial terminations

Key specifications

• Connector type: female BNC (bayonet) for coaxial cable
• Mounting style: removable termination for cable end use
• Signal types: suitable for video, RF and low-frequency data
• Contact: designed for standard BNC male mating
• Size and shape: compact cylindrical body compatible with typical BNC footprints

How to use

Prepare the coaxial cable by stripping the outer jacket, braid and dielectric to the recommended dimensions for the removable BNC female termination. Insert the cable into the connector body according to the connector's assembly design, ensuring the central conductor seats properly in the female contact and the shield makes secure contact with the body. Engage the removable locking or clamping mechanism and verify that the bayonet interface mates smoothly with a BNC male plug. After assembly, test continuity and signal integrity before final installation.

Recommendations

Use appropriate cable preparation tools and follow industry-standard stripping dimensions for the specific coaxial cable type. Avoid over-tightening any clamping elements and verify mechanical stability after assembly. For critical video or RF links, perform continuity and signal-level tests and, if possible, use connectors with proper impedance matching for the system to minimize reflections and signal loss.
