TMSS GERMANY Telemechanique Sensors Conector hembra M12 cable conector preensamblado, 4 polos, 5m PUR, Negro, Recto, IP67/IP65/IP69K, 4A, 250V AC/DC, serie OsiSense XZ - XZCP0666L5

This pre-wired M12 connector cable features a 4-pin female straight connector and a 5-meter PUR cable, rated IP67/IP65/IP69K for demanding industrial environments. It supports 4 A and 250 V AC/DC, making it suitable for sensor and actuator connections.

Overview

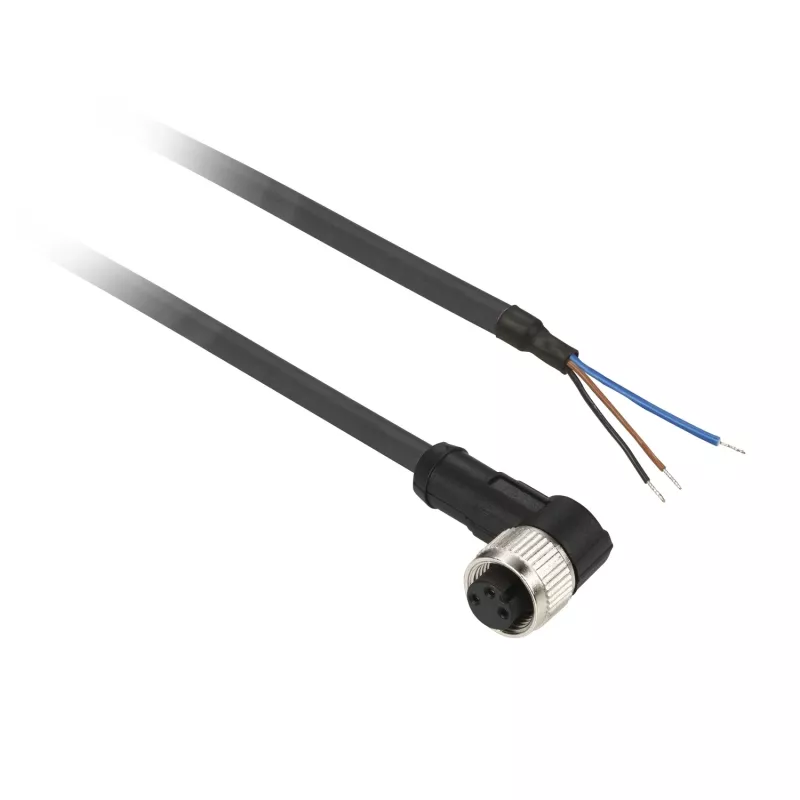

The TMSS GERMANY Telemechanique Sensors XZCP0666L5 is a pre-wired connector from the OsiSense XZ series. It combines an M12 female connector with a 5 m PUR cable, ensuring reliable signal transmission in automation applications.

What stands out

• High protection ratings: IP67, IP65, and IP69K for resistance to dust, water, and high-pressure washdown.
• Durable PUR cable with a black jacket, resistant to industrial oils.
• Straight connector orientation for easy installation in tight spaces.
• Wide operating temperature range from -25 to 80 °C.

Technical details

• Connector type: M12 female, 4-pin, straight
• Cable length: 5 m
• Cable material: PUR (polyurethane), black
• Rated current: 4 A
• Rated voltage: 250 V AC/DC
• Shielding: unshielded
• Approvals: UL, CSA
• Series: OsiSense XZ

Our verdict

A robust and reliable pre-wired connector for industrial sensor connections, offering excellent protection and flexibility.
