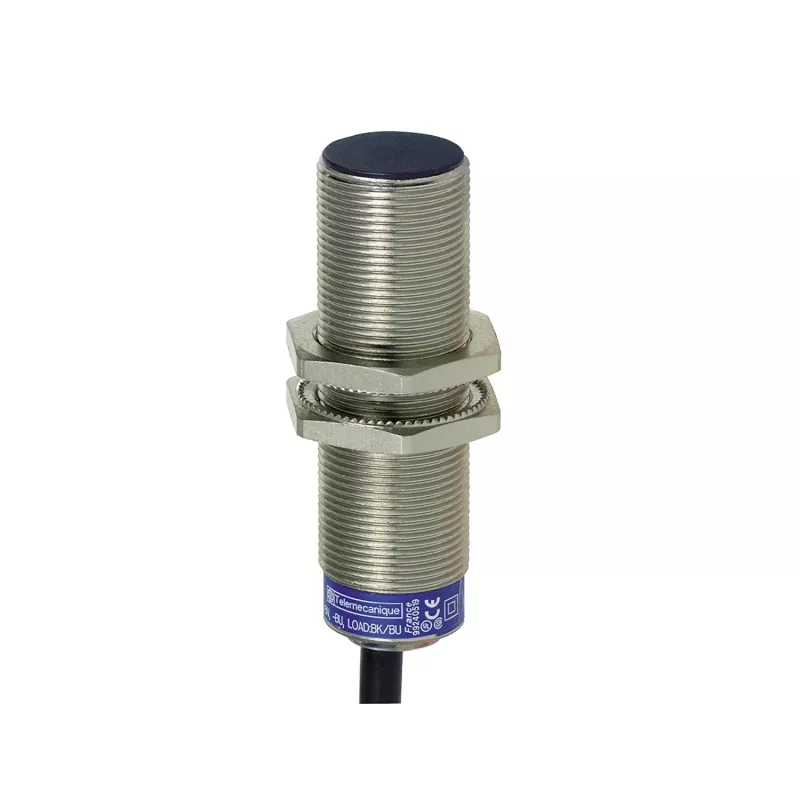

TMSS GERMANY Telemechanique Sensors Sensor inductivo de proximidad M18, Sn8mm XS618B1PAL5

Detecting metallic objects in harsh industrial environments requires a sensor that can withstand moisture, dirt, and mechanical stress. The TMSS GERMANY Telemechanique Sensors Inductive Proximity Sensor M18, Sn8mm XS618B1PAL5 provides reliable non-contact detection with a sensing distance of 8 mm, making it suitable for automation and machine-building applications.

Who is it for

This sensor is intended for engineers and maintenance technicians who need a durable, flush-mountable inductive sensor for position sensing, presence detection, or counting tasks on machinery and production lines.

Main features

• Cylindrical M18 housing in nickel-plated brass for robust performance
• Flush mountable design simplifies installation in metal surroundings
• PNP normally open output for easy integration with PLCs and controllers
• 3-wire DC operation with a wide supply voltage range of 12-48 V DC
• 5 m cable connection offers flexibility in wiring

Specifications

• Series: OsiSense XS
• Sensing distance: 8 mm
• Output type: PNP
• Output function: NO (Normally Open)
• Supply voltage: 12-48 V DC
• Connection type: Cable, 5 m
• Switching frequency: 2500 Hz
• Operating temperature: -25 to 70 °C
• Sensor body length: 62 mm
• Current consumption: ≤ 10 mA (no-load)
• Switching capacity: ≤ 200 mA

Tips

Ensure the sensor is mounted flush in metal to achieve the specified sensing distance. For best results, keep the target within the rated operating temperature range and avoid exceeding the maximum switching current.
