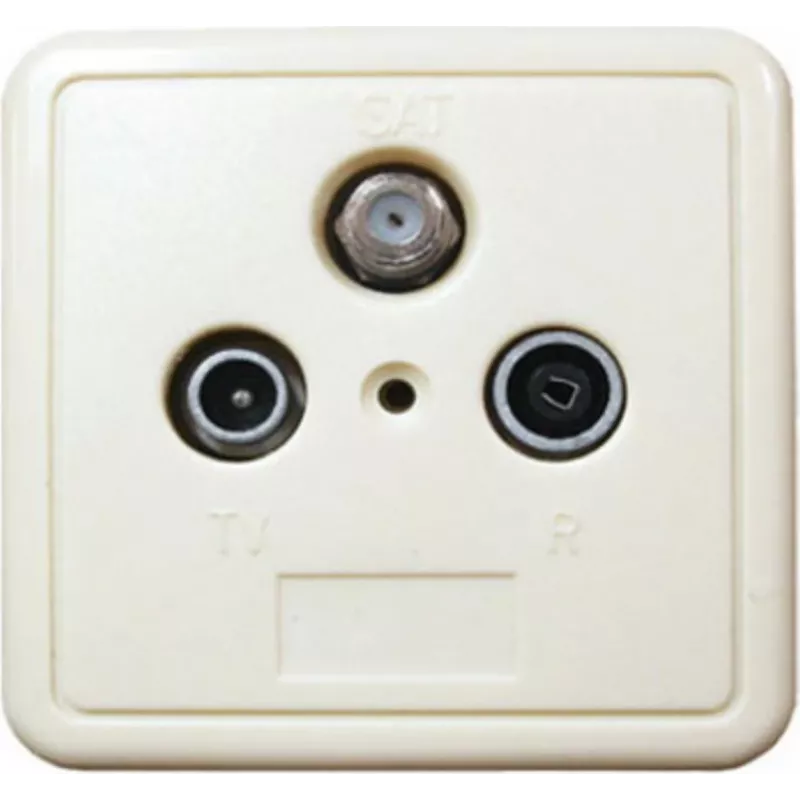

Toma de antena ShiverPeaks 83905-10DCSETL para conexiones BK y SAT

The Antenna socket ShiverPeaks 83905-10DCSETL for BK and SAT connections is a combined wall outlet that provides separate connection points for terrestrial (BK) and satellite (SAT) signals in one housing. Intended for home and small-office installations, the unit supports standard coaxial cabling and fits common wall-box mounting to keep signal distribution tidy and accessible. The socket includes DC pass-through capability for satellite equipment that requires power from an external supply.

Advantages

This ShiverPeaks antenna socket consolidates BK and SAT feed points into a single, compact outlet, reducing the need for separate faceplates. The integrated design supports through-connection for broadcasting signals while providing DC continuity where necessary for satellite LNB power. The outlet is suitable for straightforward installation into existing coaxial networks and helps maintain a clean appearance at the point of use.

Suitable for

• Fixed wall mounting in living rooms, bedrooms or small offices
• Connecting terrestrial broadcast (BK) receivers and TVs
• Connecting satellite (SAT) receivers or set-top boxes that require DC pass-through
• Upgrading or replacing single-wall outlets to support both BK and SAT signals

Key specifications

• Combined BK + SAT coaxial outlet for one wall-box installation
• 3-way connector layout to separate terrestrial and satellite feeds
• DC pass-through for satellite supply continuity
• Typical attenuation level around 10 dB on specified satellite path
• Designed for standard coaxial cables and snap-in wall mounting

How to use

Mount the antenna socket in a suitable flush-mounted wall box and terminate the incoming coaxial cables to the corresponding BK and SAT ports, observing proper polarity and connector seating. If the satellite receiver requires DC power to the LNB, ensure the DC pass-through is enabled according to the receiver and cabling setup. After connections are made, secure the faceplate and test both terrestrial and satellite signals on the connected TV or receiver to confirm continuity and signal quality.

Recommendations

For best results, use high-quality 75 Ω coaxial cable and properly tightened F-type connectors. Verify that the satellite receiver settings match the cabling configuration and that any inline splitters or amplifiers are rated for DC pass-through when used in the satellite path.
