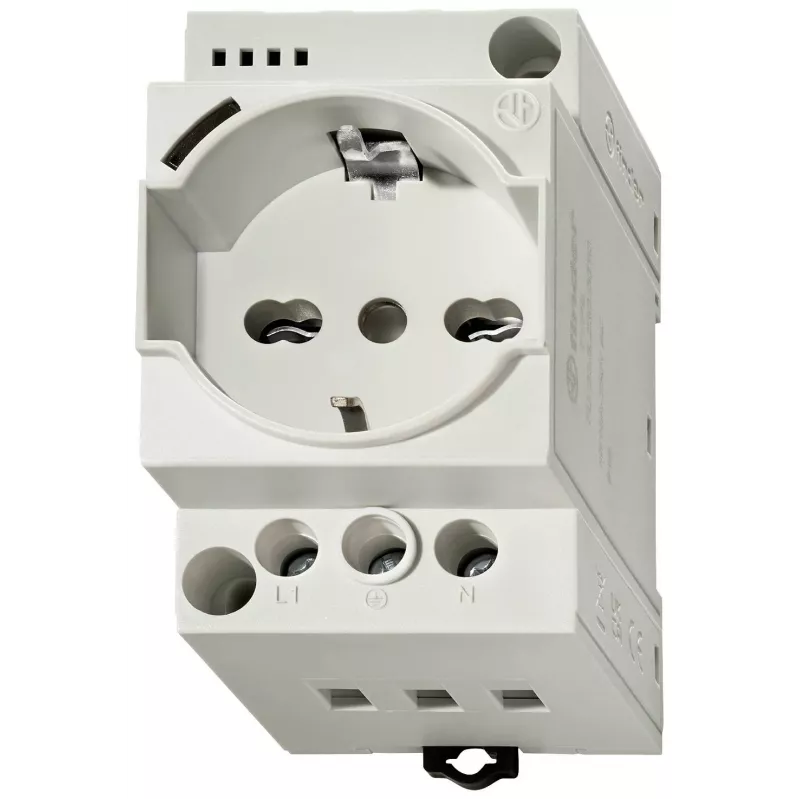

Toma de corriente para armario eléctrico Finder 7U.00.8.230.0010 gris (RAL 7035) 16A 230V carril DIN

The Finder 7U.00.8.230.0010 is a control cabinet socket outlet that combines a Schuko socket with a DIN rail mount in a single 22.5 mm wide module. Unlike conventional panel-mount sockets, it installs directly onto a 35 mm DIN rail, saving space and simplifying wiring inside industrial enclosures and distribution boards.

Highlights

• Schuko (Type F) socket outlet, 230 V AC, 16 A rated
• Compact 1-module width (22.5 mm) for DIN rail mounting
• Screw terminals accept conductors up to 2.5 mm²
• Grey housing in RAL 7035, matching standard control cabinet colour schemes
• Thermoplastic housing for durability in industrial environments

In daily use

This socket outlet provides a convenient power point for tools, test equipment, or temporary devices inside control cabinets. Its DIN rail mounting allows quick installation alongside terminal blocks, relays, and other modular components. The screw terminals ensure a secure connection for solid or stranded conductors. The grey RAL 7035 colour blends with most industrial enclosures.

Full specifications

• Product type: Control cabinet socket outlet
• Socket type: Schuko (Type F)
• Nominal voltage: 230 V AC
• Nominal current: 16 A
• Mounting type: DIN rail (35 mm)
• Number of outlets: 1
• Connection type: Screw terminals
• Conductor cross-section: up to 2.5 mm²
• Colour: Grey (RAL 7035)
• Housing material: Thermoplastic
• Module width: 1 module (22.5 mm)
• Operating temperature range: -20 °C to +70 °C
• Protection rating: IP20

Final note

Designed for industrial control cabinets and distribution boards, this socket outlet offers a reliable and space-efficient power solution.
