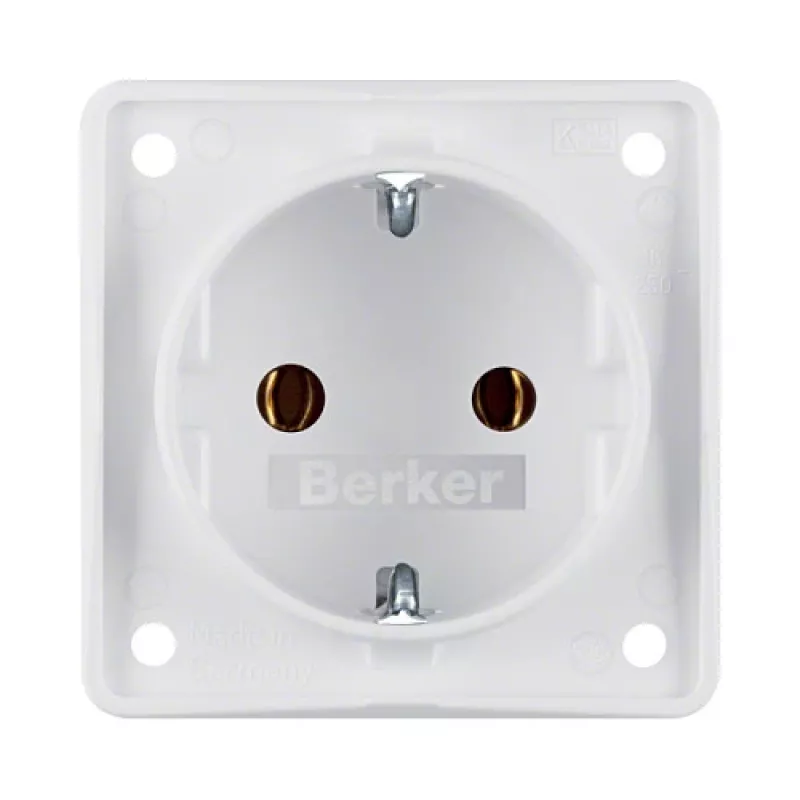

Toma de corriente Schuko de superficie Berker W.1 IP44 blanco polar 250V 16A

The Berker 947782502 is a high-quality surface-mounted Schuko socket (Type F) from the Berker W.1 series, designed for reliable power supply in damp rooms and outdoor areas. With IP44 protection, it offers splash-proof safety, making it ideal for bathrooms, kitchens, terraces, and workshops. The socket features a hinged lid for added protection when not in use and is made from UV-stabilized thermoplastic for long-lasting durability.

Advantages

IP44 splash-proof protection ensures safe operation in humid environments. The hinged lid keeps the socket clean and protected when not in use. UV-stabilized thermoplastic material resists weathering and discoloration. Screw terminals allow for secure and easy wiring. Integrated protection against accidental contact enhances safety.

Suitable for

• Damp rooms such as bathrooms and kitchens
• Outdoor areas like terraces, balconies, and gardens
• Workshops and garages
• Commercial and industrial environments requiring splash-proof sockets

Key specifications

• Socket type: Schuko (Type F)
• Ingress protection: IP44
• Mounting type: Surface-mounted (Aufputz)
• Colour: Polar White
• Nominal voltage: 250 V AC
• Nominal current: 16 A
• Frequency: 50/60 Hz
• Material: Thermoplastic, UV-stabilized
• Number of sockets: 1
• Connection type: Screw terminals
• Product series: Berker W.1
• With hinged lid: Yes
• Halogen-free: Yes
• Impact resistance: IK05
• Operating temperature range: -25 to +55 °C
• Terminal capacity: up to 2.5 mm²
• Protection against accidental contact: Yes (integrated)
• Application area: Damp rooms, outdoor areas

Recommendations

For optimal safety and performance, ensure installation by a qualified electrician. Pair with compatible Berker W.1 frames for a seamless look. Suitable for use with standard Schuko plugs.
