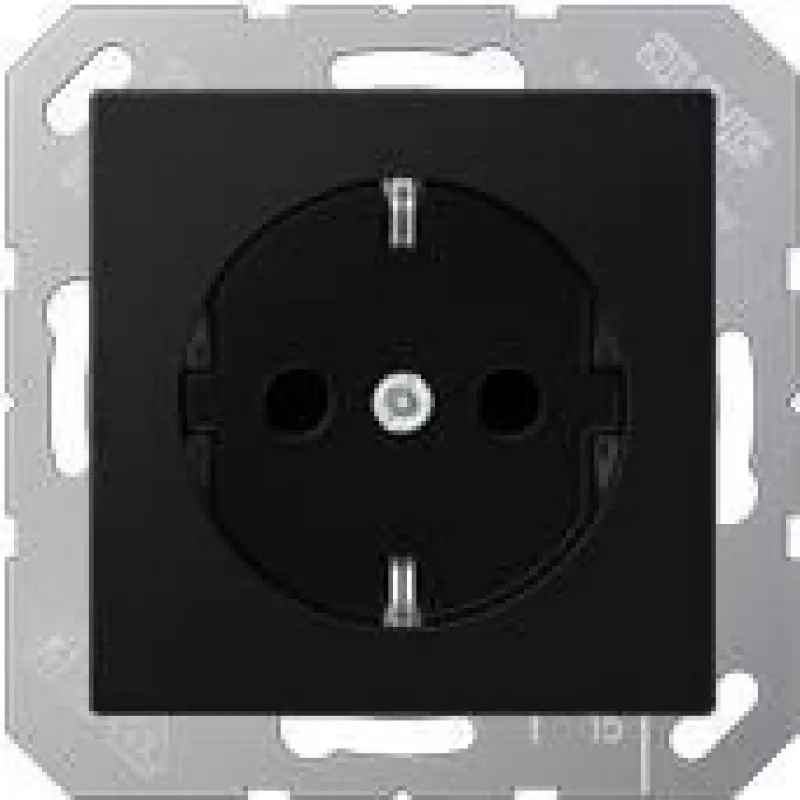

Toma de corriente Tipo F Jung A 1520 BFKI SWM — 250 V, 16 A, Termoplástico, 55×55 mm, negro/grafito

Jung A 1520 BFKI SWM is a Type F socket outlet for indoor electrical installations. Rated for 250 V and up to 16 A, it features a thermoplastic housing in a black/graphite finish and compact dimensions of 55×55 mm. The unit is a single-piece outlet with enhanced contact protection (shutter) and screwless terminals that accept conductors up to 2.5 mm², intended for standard mains connections in residential and commercial environments.

Advantages

The socket offers enhanced contact protection to reduce accidental contact with live parts, and screwless terminals simplify wiring while providing reliable clamping for conductors up to 2.5 mm². The thermoplastic housing delivers electrical insulation and a consistent surface finish in black/graphite. The integrated supporting frame, claws and claw screws are part of the earthing protection design, enabling straightforward installation in compatible mounting systems.

Suitable for

Key specifications

How to use

Turn off the mains supply before beginning installation. Mount the outlet into a compatible 55×55 mm installation box and secure it according to the mounting system used. Insert live, neutral and earth conductors into the screwless terminals, ensuring conductor insulation is stripped to the recommended length and wires are fully inserted to achieve a secure connection. Restore power and test the outlet for correct operation and earth continuity. For maintenance, isolate the circuit prior to inspection or replacement.

Recommendations

Use the outlet only within its rated voltage and current limits (250 V, 16 A). Ensure wiring is performed by a qualified electrician and complies with local regulations. For installations without claws, select the appropriate variant; for projects requiring screw terminals, choose the corresponding model. Regularly check connections in high-use environments and replace the unit if any mechanical damage or loss of contact protection is observed.
