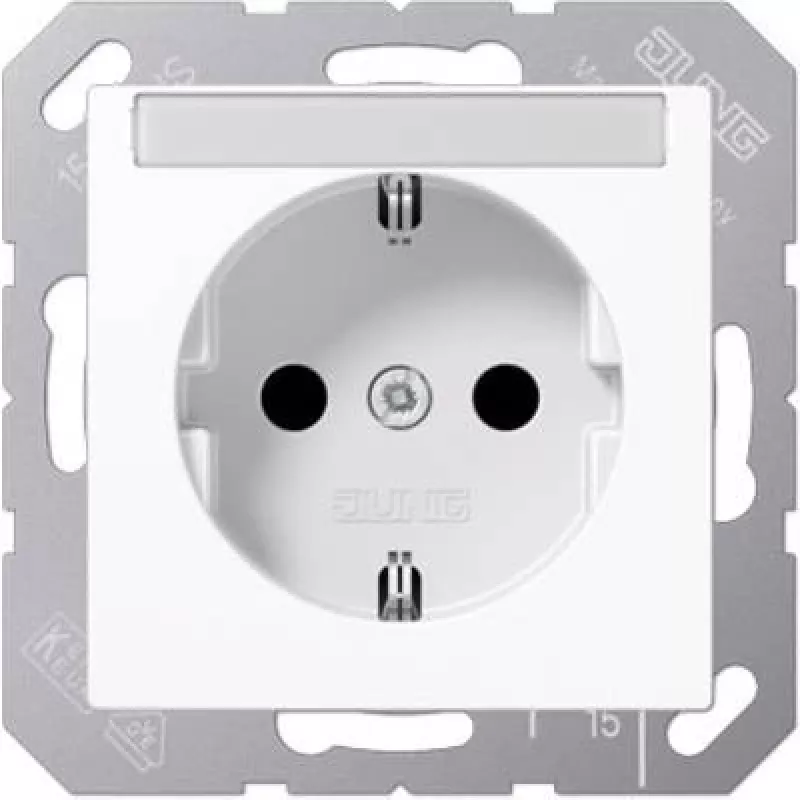

Toma de corriente Tipo F Jung A 1520 BFNA WW, 16 A 250 V, blanca, Termoplástico

Jung A 1520 BFNA WW is a Type F (Schuko) socket outlet rated for 250 V and 16 A, supplied in a white thermoplastic housing. The unit is designed for universal mounting in standard domestic and light commercial electrical installations that require a grounded Schuko connection. The product includes an inscription field sized 6 x 46 mm and screwless terminals that accept conductors up to 2.5 mm². The supporting frame, claws and claw screws are integrated into the earth protection for a compact assembly.

Advantages

The socket outlet provides a grounded Schuko connection with a 16 A current rating suitable for common household and office appliances. Screwless terminals simplify wiring and secure conductors up to 2.5 mm² without the need for separate screws, reducing installation time. The thermoplastic housing in white offers a neutral appearance that fits typical interior designs while being electrically insulated. An integrated inscription field allows clear circuit or room labeling directly on the unit.

Suitable for

When it may not be suitable

This socket outlet is not intended for use with industrial equipment that demands higher current ratings or specialized sockets. It is not suitable for environments requiring ingress protection or impact-resistant enclosures beyond standard indoor use. If screw terminal variants or claw-free mounting are required, alternative reference models exist.

Key specifications

How to use

Turn off the circuit power before starting installation. Mount the socket unit into the flush box or designated mounting plate following local wiring regulations. Insert stripped conductors into the screwless terminals and ensure they are fully seated; the terminals accept wire sizes up to 2.5 mm². Secure the unit with the supporting frame and integrated claws, making the protective earth connection with the integrated earth protection. Restore power and test the outlet for correct grounding and voltage before connecting appliances.

What to consider before purchase

Recommendations

Use certified wiring practices and comply with local electrical codes. For reliable connections, strip conductors to the recommended length, check that the screwless terminals retain the conductors firmly, and periodically inspect the outlet for signs of wear or loose connections in high-use applications.
