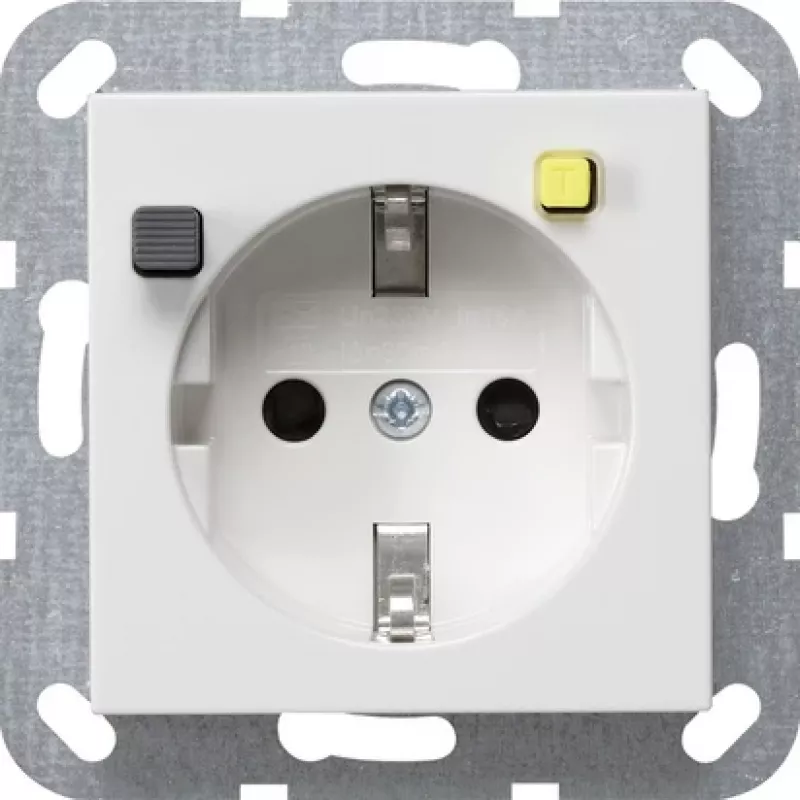

Toma de corriente tipo F Gira 2677 03 — 230 V, 16 A, blanca

Gira 2677 03 is a flush-mounted Type F (SCHUKO) socket outlet in white for standard 230 V electrical installations. It is rated for 16 A and 50–60 Hz and is supplied as a single unit. The device integrates voltage-dependent residual current tripping in accordance with VDE 0664 to provide permanent residual current protection for the connected circuit.

Advantages

The built-in RCD function provides automatic disconnection in the event of a dangerous residual current, improving user protection without the need for a separate external RCD device. The socket can be permanently installed and allows additional SCHUKO outlets to be connected downstream on the same wiring, which will then also be covered by the residual current protection. The product is compatible with standard household and light commercial appliances and is finished in a neutral white colour.

Suitable for

Key specifications

How to use

Install the Gira 2677 03 socket outlet as a permanently mounted unit in a suitable flush-mounted box following local electrical regulations and wiring practices. Connect the line, neutral and earth conductors to the designated terminals and, if required, run the downstream conductors to any additional SCHUKO outlets that should be included in the same residual current protection. After installation, test the RCD function according to the manufacturer's instructions and local safety standards.

Recommendations

Use a qualified electrician for installation and verification. Regularly test the residual current protection according to applicable regulations and manufacturer guidance to ensure correct operation. Do not exceed the rated current of 16 A and avoid connecting permanently overloaded appliances.
