Toma de corriente tipo F Jung 620 W — 16 A, 250 V, carcasa de duroplast, Blanco, alto 47 mm

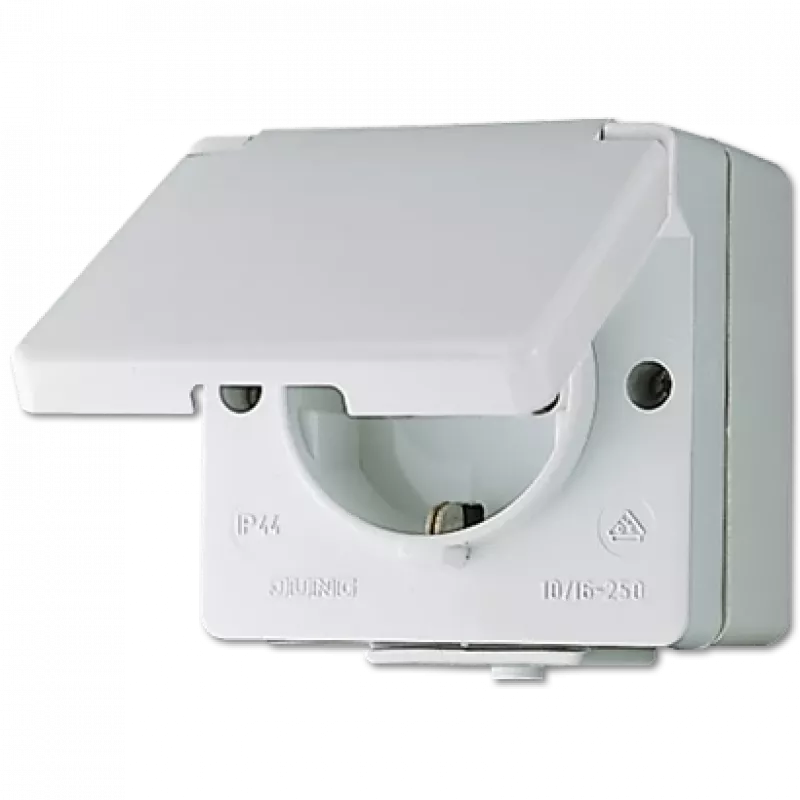

Jung 620 W is a Type F socket outlet designed for fixed electrical installations in homes and light commercial spaces. Rated for 250 V and 16 A, this wall-mounted unit offers a compact profile with a 47 mm height and a white duroplast housing that resists wear while providing an insulating, non-metallic enclosure. The socket is intended for standard European mains connections and integrates screwless terminals that accept conductors up to 2.5 mm² for straightforward wire insertion.

Advantages

The duroplast housing delivers electrical insulation and mechanical stability without the weight of metal alternatives. The compact 47 mm construction reduces the depth required in wall boxes, making it suitable for retrofit and new installations. Screwless terminals simplify installation and reduce the need for tools during wiring, while the 16 A/250 V rating matches common household and light commercial circuits. The white finish provides a neutral appearance that fits typical interior finishes.

Suitable for

Key specifications

How to use

Install the socket outlet in accordance with local electrical regulations and standards. Switch off the circuit breaker before beginning work. Secure the device into a compatible flush-mounted wall box, connect phase, neutral and earth conductors into the screwless terminals by inserting stripped conductors of up to 2.5 mm² and ensuring firm seating, then restore power and test the outlet for correct operation and earthing continuity. If unsure about any step, use a qualified electrician to carry out the installation and testing.

Recommendations

Use the socket only on circuits matching its 16 A/250 V rating. Avoid overloading the outlet with multiple high-power appliances and ensure proper earthing connection where required. For installations in damp or outdoor locations, choose products rated for those environments. Periodically inspect the outlet for signs of damage or loose connections and replace if any defects are found.
