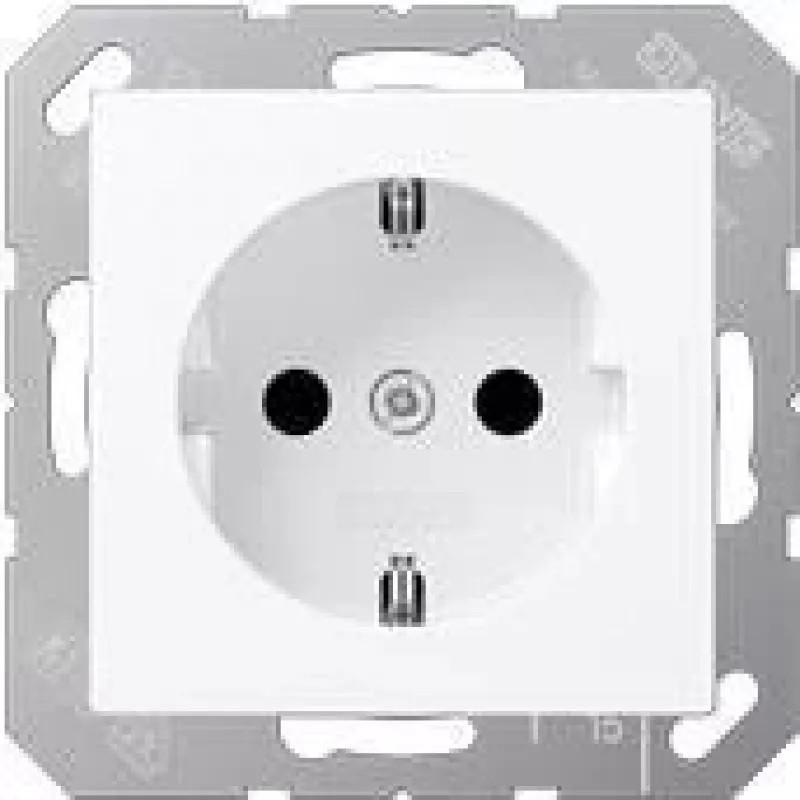

Toma de corriente tipo F Jung A 1520 BFKI WWM, 16 A, 250 V, blanca, termoplástico, 55×55 mm

Socket outlet Type F Jung A 1520 BFKI WWM is a fixed, single-piece Schuko receptacle designed for indoor electrical installations. The unit is rated for 250 V and 16 A and features a white thermoplastic housing in a compact 55×55 mm format. It provides basic protection and connection for household and light commercial circuits and includes enhanced contact protection (shutter) for increased safety during use.

Advantages

The Jung Type F socket offers screwless terminals that accept conductors up to 2.5 mm², simplifying wiring while maintaining a secure connection. The thermoplastic material ensures a durable, easy-to-clean surface suitable for indoor environments. The integrated supporting frame, claws and claw screws within the earth protection simplify installation and reduce the need for additional mounting parts. The shuttered contact protection helps prevent accidental contact with live parts.

Suitable for

Key specifications

How to use

Install the Jung A 1520 BFKI WWM socket according to local electrical codes. Ensure power is isolated before beginning work. Connect the live, neutral and earth conductors into the screwless terminals, ensuring conductor ends are properly prepared and fully inserted to achieve secure contact. Secure the outlet in the mounting box using the integrated frame and claws, and attach the cover plate. Restore power and verify correct operation with a suitable testing device.

Recommendations

Use this Type F Jung socket for standard indoor circuits where a compact, shuttered Schuko outlet is required. For installations requiring claw-free mounting or alternate terminal types, select the corresponding reference variant. Do not exceed the rated 16 A; follow local wiring regulations and, where necessary, consult a qualified electrician for installation or troubleshooting.
