Toma de corriente tipo F + USB A + USB C Bachmann 946.105 acero inoxidable

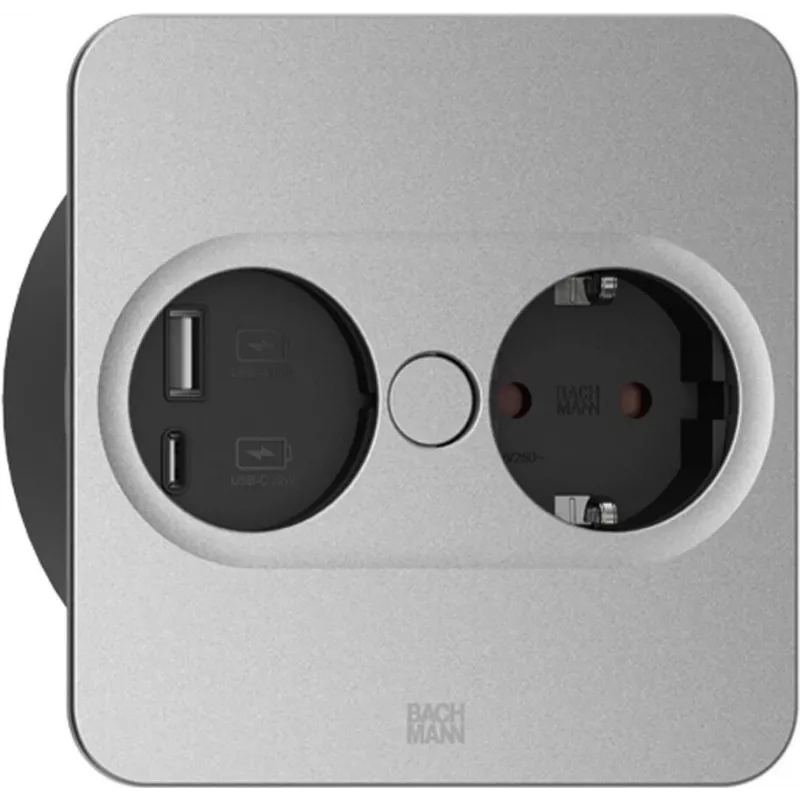

The Bachmann TWIST 2 (model 946.105) is a compact tabletop socket-outlet in stainless steel with a Type F mains socket plus USB A and USB C ports for convenient device charging. It is designed for installation in worktops and desks up to 40 mm thick and features a low mounting depth of approximately 40 mm, a removable cover for easy cleaning, and an anti-fingerprint coating on high-quality surfaces. The unit has an IP20 rating and is intended for indoor use in kitchens, living rooms and offices.

Advantages

The TWIST 2 offers automatic opening at the push of a button with manual closing for simple and safe operation, high-quality stainless steel surfaces with anti-fingerprint coating, and a compact square option that saves space. Its removable cover simplifies maintenance, and integrated USB A and USB C (22 W) ports provide fast charging for end devices. The close-to-housing cable routing and shallow mounting depth allow installation above drawers and in limited-depth furniture.

Suitable for

• Worktops and desks (maximum thickness 40 mm)
• Kitchens and kitchen islands where a compact pop-up socket is required
• Office workstations and meeting tables for power and fast USB charging
• Living room furniture needing a discreet power/charging solution

Key specifications

• Brand: Bachmann
• Model / MPN: 946.105
• EAN: 4057298129223
• Socket type: Type F mains outlet
• USB: USB A and USB C (USB C supports fast charging, 22 W)
• Material: Stainless steel with metal/plastic housing
• Ingress protection: IP20 (indoor use only)
• Installation: Tabletop pop-up unit for max worktop thickness 40 mm
• Dimensions (W×D×H): 115 × 115 × 42.5 mm
• Mounting depth: approx. 40 mm

How to use

Press the button to open the TWIST 2 unit; connect mains plugs and USB charging cables as required. After use, close the cover by hand to secure the unit. The removable cover can be taken off for cleaning; ensure the device is disconnected from the mains before removing the cover or performing any cleaning. Route the power cable according to the installation instructions so it runs close to the housing and fits the available mounting depth.

Recommendations

Use the TWIST 2 indoors only (IP20). Do not install in locations exposed to water or high humidity. Verify that the worktop thickness does not exceed 40 mm and that there is sufficient clearance beneath the mounting location (approx. 40 mm). Unplug the unit before cleaning and avoid abrasive cleaners to preserve the anti-fingerprint coating.
