Enchufe eléctrico Bachmann 913.173 negro

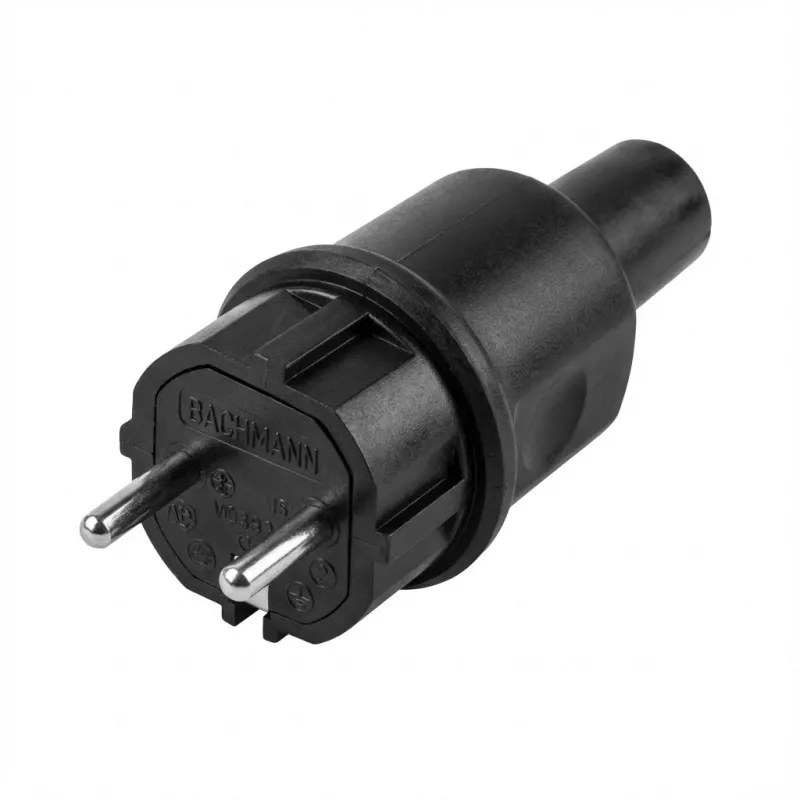

The Bachmann 913.173 electrical power plug is designed for secure connection of flexible cables up to H07RN-F 3G 2.50 mm2. It features a robust rubber housing with an integrated earthing contact and provides protection against splashing water with an IP44 rating. Rated for 16 A and 250 V AC, this black power plug is suitable for indoor and outdoor electrical installations where a durable, standardised connector is required.

Advantages

The solid rubber insert with earthing contact ensures reliable ground connection and mechanical stability. A standardised clip-in function with kink protection simplifies installation and secures the cable. The side-fitting screw terminal block allows easy wiring and maintenance. The operating temperature range from -40 °C to 70 °C supports use in a wide range of environments.

Suitable for

• Connecting portable equipment and power tools to fixed mains sockets
• Indoor and outdoor electrical installations with IP44 protection requirements
• Flexible cables up to H07RN-F 3G 2.50 mm2
• Applications requiring up to 16 A at 250 V AC

Key specifications

• Brand: Bachmann
• Model / MPN: 913.173
• EAN: 4016514005598
• Current: 16 A
• Voltage: 250 V AC
• Cable compatibility: up to H07RN-F 3G 2.50 mm2
• Housing: rubber insert with earthing contact
• Ingress protection: IP44
• Temperature range: -40 °C to 70 °C

How to use

Strip the cable to the recommended length, insert into the plug body and secure the conductors in the side screw terminal block. Ensure the earthing conductor is connected to the dedicated earthing contact. Use the clip-in function to lock the cable and verify the kink protection is correctly positioned. After assembly, check continuity and correct polarity before applying power.

Recommendations

Use only cables that match the specified type and cross-section (H07RN-F 3G 2.50 mm2). Do not exceed the rated current and voltage (16 A, 250 V AC). Install and maintain the plug in accordance with applicable electrical safety standards and, if necessary, consult a qualified electrician.
