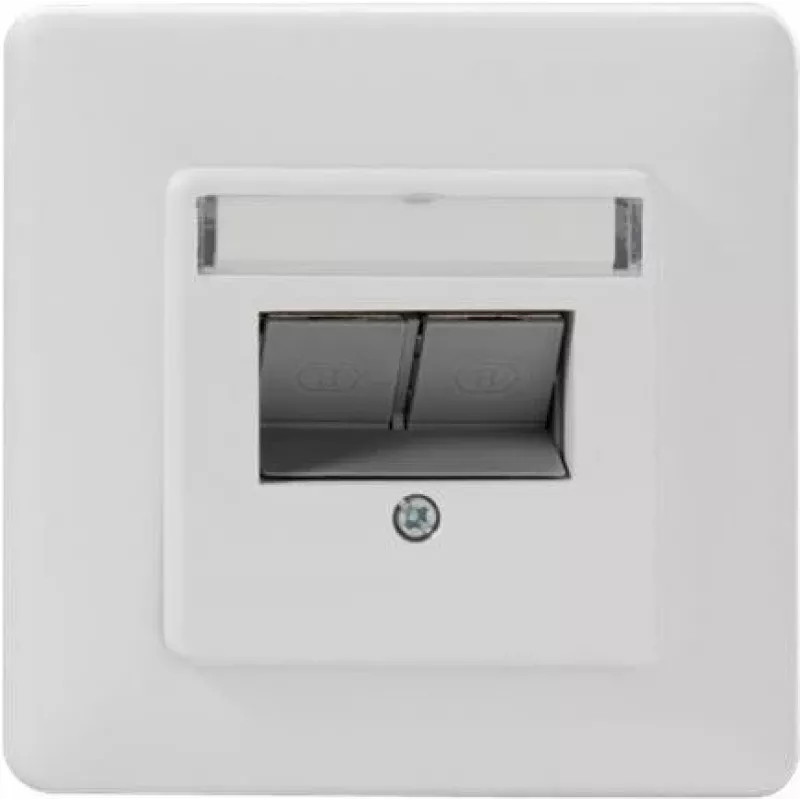

Toma de red Rutenbeck UM-Cat.6A iso 10G-MD 2 Up rw 2 RJ45 blanco puro

The Rutenbeck UM-Cat.6A iso 10G-MD 2 Up rw 2 RJ45 Pure White is a flush-mount dual-port network socket designed for structured cabling systems. It provides two RJ45 outlets in a compact module compatible with standard wall plates and faceplates. Engineered to meet Cat6A performance and support 10 Gbps class transmission where the channel and installation comply, the module is intended for installation in offices, server rooms and residential networks that require reliable wired connectivity.

Advantages

This network socket provides Cat6A-level signal performance in a dual RJ45 configuration while maintaining a low-profile, flush-mounted appearance. The module is colour-matched in pure white to integrate discreetly into interior finishes. It supports high-bandwidth applications and is suitable for installations that require stable, low-latency wired links. The product is built for compatibility with common structured cabling accessories and simplifies deployment in multi-port outlet frames.

Suitable for

Key specifications

How to use

Install the module into a compatible flush-mounted wall plate or frame according to the structured cabling plan. Connect the incoming screened or unscreened twisted pair cabling to the module’s termination points following the chosen wiring standard (T568A or T568B) and ensure proper shielding continuity if a screened system is used. Secure the module in the faceplate and fasten the faceplate to the wall box. Test each RJ45 outlet with appropriate network test equipment to verify continuity, pair mapping and performance up to Cat6A/10 Gbps where applicable.

Recommendations

Use certified Cat6A cabling and maintain correct cable routing, bend radius and termination practices to achieve specified 10 G-class performance. For screened installations, ensure all components and grounding points maintain shield continuity. Perform post-installation testing to document channel performance and identify any installation issues.
