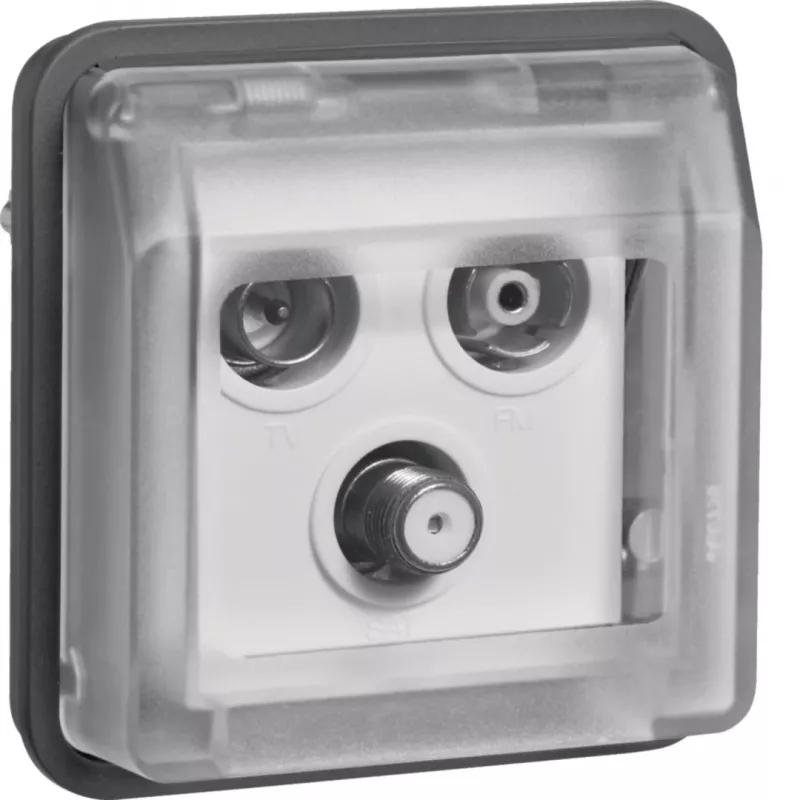

Toma individual de conexión SAT HAGER WNA257 con 3 salidas (TV, radio, SAT), empotrada

In modern homes, distributing satellite and terrestrial signals to a single wall outlet without signal loss or messy cabling is a common challenge. The HAGER WNA257 solves this by combining TV, radio, and satellite connections in one flush-mounted socket, ensuring clean signal distribution in star or single-cable systems.

Who is it for

This socket is ideal for electricians and homeowners setting up or upgrading antenna distribution in residential or commercial buildings. It suits installations where a single wall plate must provide access to terrestrial TV, FM radio, and satellite TV from one location.

Main features

• Three outputs: TV, Radio, and SAT, each with dedicated coaxial or F-connector.
• Wide frequency coverage: 5–862 MHz for TV/Radio, 950–2400 MHz for SAT.
• Low connection attenuation of 1.5 dB for all outputs, preserving signal strength.
• High shielding factor >75 dB (Class A) to minimize interference.
• DC pass-through for SAT to power LNB directly from the receiver.
• Flush-mounted design compatible with Hager switch ranges.

Specifications

• Socket type: SAT single socket
• Number of outputs: 3 (TV, Radio, SAT)
• Frequency range TV/Radio: 5 - 862 MHz
• Frequency range SAT: 950 - 2400 MHz
• Connection attenuation: 1.5 dB (all outputs)
• Return loss: > 10 dB
• Shielding factor: > 75 dB (Class A)
• Impedance: 75 Ohm
• DC pass: Yes (for SAT/LNB power)
• Installation type: Flush-mounted
• Material: Plastic
• Connection type: F-connector (SAT), Coaxial (TV/Radio)
• Application: Single cable systems, star distribution
• Standard: EN 50083-4
• Operating temperature: -5 to +45 °C

Tips

For best performance, use high-quality coaxial cables with proper shielding and ensure the socket is installed in a standard flush-mounting box. The DC pass feature allows you to power your satellite LNB without an external power supply, simplifying the setup.
