Toma RJ-45 Rutenbeck 136104070

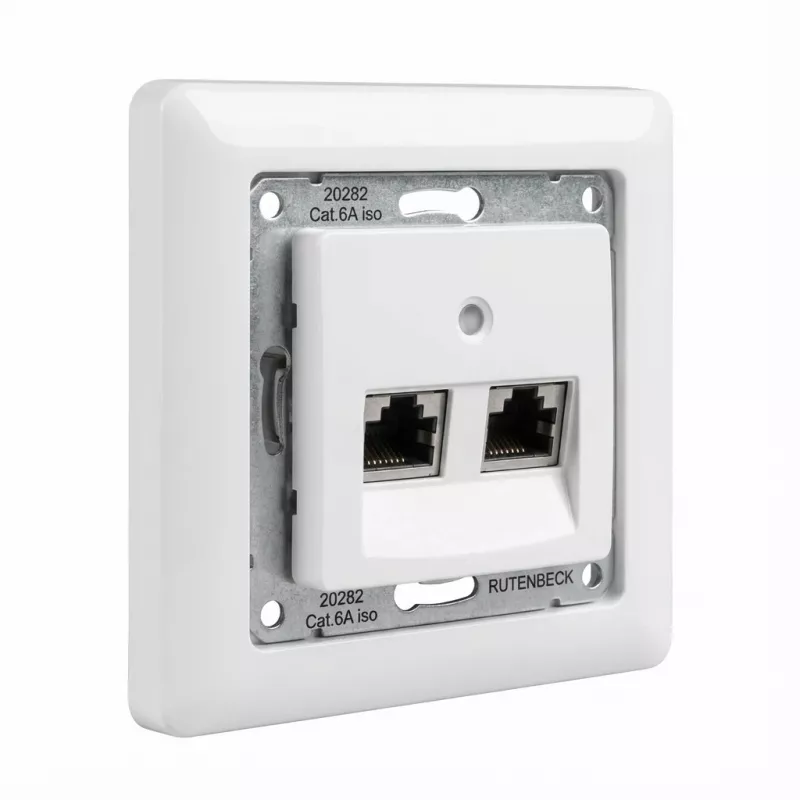

The Rutenbeck 136104070 RJ-45 socket outlet is a compact network connection unit designed for category 6a cabling. Housed in a robust zinc enclosure with IP21 protection, the module provides a reliable interface for data transmission with rated values of 72 V and 0.5 A and an insulation resistance of 500 MΩ. The product is supplied as a set of two and has external dimensions of 70 x 70 x 40 mm, with a net weight of approximately 145 g.

Advantages

The RJ-45 socket supports Cat 6a standards, ensuring compatibility with high-speed Ethernet installations. The zinc housing increases mechanical durability while the IP21 rating offers basic protection against ingress of solid objects. Compact dimensions and a break-off mounting ring that can be converted to a mounting bracket allow flexible installation in confined spaces. Supplied in pairs for convenient deployment in multi-port setups.

Suitable for

• Office and residential structured cabling using Cat 6a
• Patch panels and wall outlet installations
• Small network closets and equipment cabinets with limited space
• Replacement or expansion of existing RJ-45 wall sockets

Key specifications

• Manufacturer: Rutenbeck
• Model / MPN: 136104070
• EAN: 4043921657126
• Connector: RJ-45, Cat 6a
• Housing material: Zinc
• Protection rating: IP21
• Rated voltage: 72 V
• Rated current: 0.5 A
• Insulation resistance: 500 MΩ
• Dimensions (W × H × D): 70 × 70 × 40 mm
• Weight (per package): 145 g (2 units)

How to use

Prepare the Cat 6a cable ends according to standard termination procedures and insert the conductors into the RJ-45 termination block as specified by the color code. Mount the outlet in the desired location using the supplied break-off mounting ring or convert it to a mounting bracket if surface attachment is required. Secure the housing and perform continuity and performance tests to verify correct wiring and signal integrity before commissioning.

Recommendations

Use in dry indoor environments consistent with IP21 rating. For permanent professional installations, test the outlet with appropriate network testers to confirm Cat 6a performance and ensure that cable routing avoids sharp bends and electrical interference sources.
