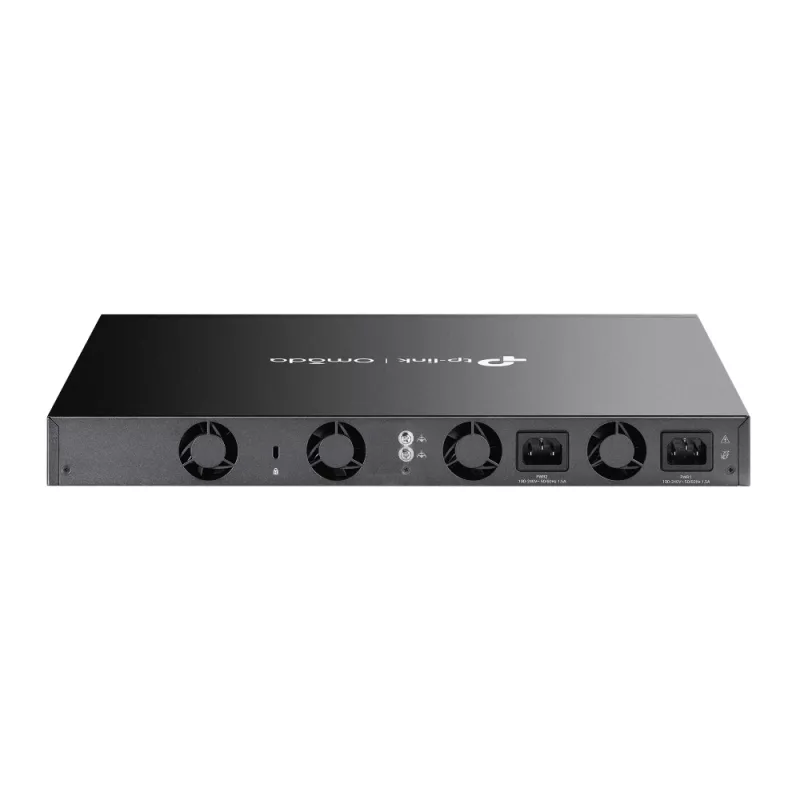

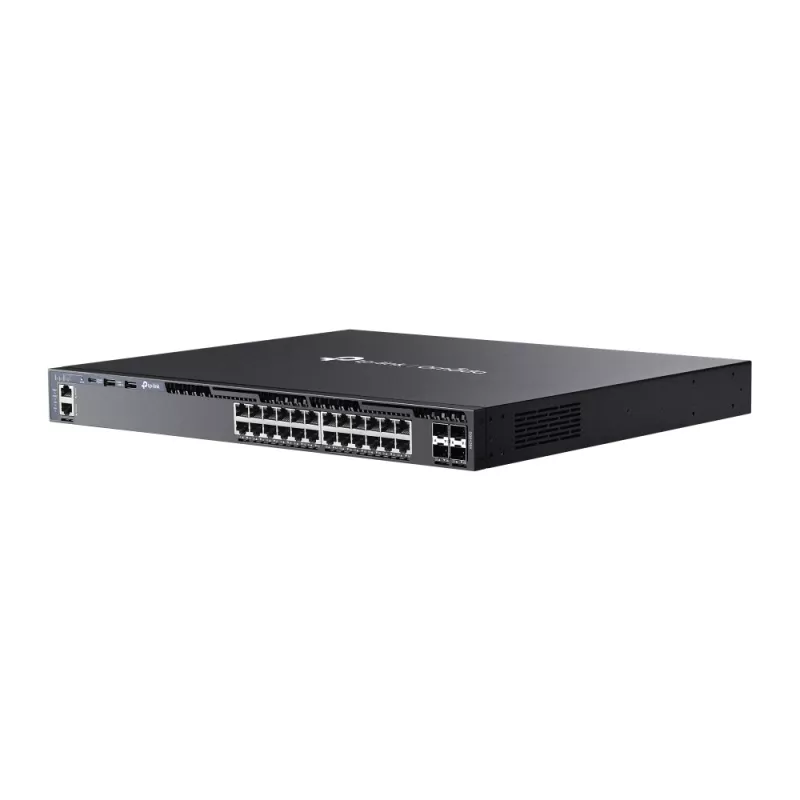

TP-Link Omada switch gestionado L3 apilable de 24 puertos Gigabit con 4 ranuras 10G

Omada SG6428X is a managed Layer 3 switch with 24 Gigabit RJ45 ports and 4 SFP+ 10 Gbps slots, designed for convergence-layer deployments. The unit provides a switching capacity of 128 Gbit/s per chassis and supports physical stacking of up to four switches for a combined switching capacity of up to 512 Gbit/s. The switch integrates L3 routing, redundant internal power supplies, and centralized management through the Omada SDN platform, making it suitable for SMBs, enterprises, and ISPs that require reliable wired infrastructure.

Advantages

The SG6428X delivers high-speed wired connectivity with 24 Gigabit ports and 4× 10 Gbps SFP+ uplinks, plus hardware stacking to increase throughput and resiliency. It provides extensive Layer 3 features — including static routes, RIP, OSPF, ECMP, VRRP, DHCP Server/Relay and PIM-DM multicast — together with redundant power and fast protection in ring topologies. Security and management options include ACLs for IPv4/IPv6, Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, SSH/SSL, SNMP (v1/v2c/v3), RMON and both GUI and CLI access. Integration with the Omada SDN enables centralized cloud management and Zero-Touch Provisioning.

Suitable for

• Small and medium-sized businesses requiring a reliable access/convergence switch
• Enterprise edge or aggregation layer deployments
• Internet Service Providers needing managed switched ports with routing and stacking

Key specifications

• Switch type: Managed Layer 3
• Ports: 24× Gigabit RJ45, 4× 10 Gbps SFP+
• Switching capacity: 128 Gbit/s per unit; up to 512 Gbit/s with up to 4-unit stacking
• Layer 3 protocols: Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, DHCP Relay, PIM-DM
• Redundancy: Internal redundant power supplies, VRRP, ERPS support
• Security: ACL (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, SSH/SSL
• Management: Omada SDN cloud management, web GUI, CLI, SNMP (v1/v2c/v3), RMON
• Product colour: Black
• MPN/EAN: SG6428X / 4895252501476

How to use

Install the SG6428X in a standard 19-inch rack and connect power. Use the Gigabit RJ45 ports for access device connections and the SFP+ slots for 10 Gbps uplinks or aggregation. For larger deployments, stack up to four units using the physical stacking feature to create a single logical system. Configure Layer 3 routing, VLANs and security policies via the Omada SDN controller, the web-based GUI or the CLI. Protect management sessions using SSL or SSH and enable SNMP or RMON for monitoring and alerting.

Recommendations

Deploy the SG6428X at the convergence or aggregation layer where a combination of high port density, Layer 3 routing and stacking resilience is required; ensure firmware is kept up to date and configure VRRP and ERPS where high availability is needed.
