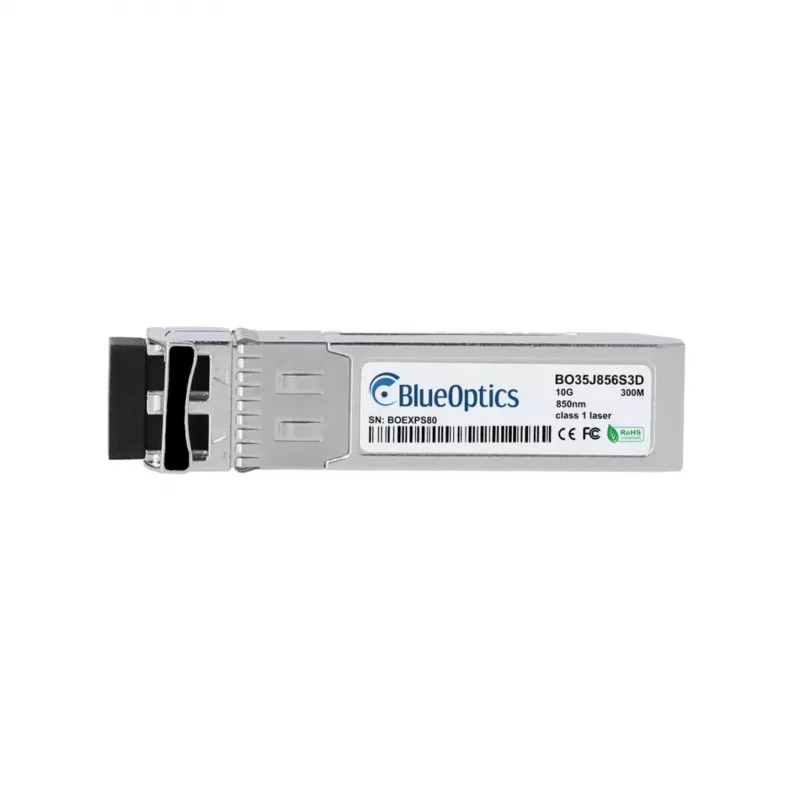

TP-Link TXM431-SR Compatible con BlueOptics SFP+ BO35J856S3D 10Gbps 850nm 300m MMF LC

The BlueOptics BO35J856S3D is a high-performance SFP+ transceiver designed for compatibility with TP-Link TXM431-SR and MSA compliant equipment. It delivers reliable 10 Gigabit Ethernet connectivity over multi-mode fiber, ideal for data centers and enterprise networks.

Advantages

This transceiver offers hot-pluggable installation, low power consumption under 1W, and full Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Its VCSEL laser technology ensures efficient data transmission at 850 nm wavelength.

Suitable for

• Data center interconnects
• Enterprise network uplinks
• Storage Area Networks (SAN)
• High-speed server connections

Key specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps
• Wavelength: 850 nm
• Max Distance: 300 m over OM3 MMF
• Connector: LC Duplex
• Fiber Type: Multi-mode (MMF)
• Standard: 10GBASE-SR
• DDM Support: Yes
• Power Consumption: < 1W
• Operating Temperature: 0°C to 70°C
• Certifications: CE, FCC, RoHS, MSA Compliant

Recommendations

For optimal performance, use with OM3 or OM4 multi-mode fiber and ensure your switch or router supports SFP+ modules. This transceiver is a cost-effective alternative to OEM modules, backed by BlueOptics quality.
