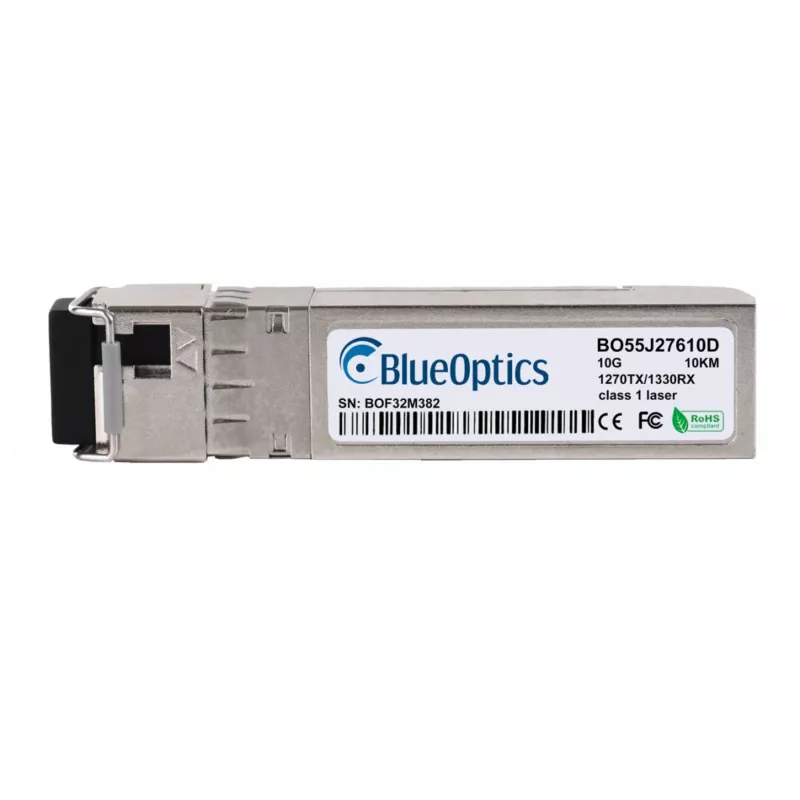

Transceptor BlueOptics SFP+ compatible TP-Link SFP-10G-BX-U BO55J27610D

The BlueOptics BO55J27610D is a high-performance SFP+ transceiver designed for compatibility with TP-Link SFP-10G-BX-U and MSA compliant devices. It enables 10 Gigabit Ethernet connectivity over single-mode fiber at distances up to 10 km, utilizing BiDi technology for single-fiber operation.

Advantages

This transceiver offers reliable 10 Gbps data transmission with low power consumption under 1W. It supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of temperature, voltage, and optical power levels. Hot-pluggable design ensures easy installation and maintenance without network downtime.

Suitable for

• 10 Gigabit Ethernet networks requiring single-mode fiber connections
• TP-Link switches and routers with SFP+ slots
• Data centers, enterprise networks, and telecommunications
• Long-distance links up to 10 km

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Protocol: 10GBASE-BX-U
• Wavelength (Tx): 1330 nm
• Wavelength (Rx): 1270 nm
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Simplex
• Max Distance: 10 km
• DDM/DOM: Yes
• Power Consumption: < 1W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, pair this transceiver with a compatible TP-Link SFP+ port and single-mode fiber patch cable. Ensure proper handling and avoid bending fiber cables beyond their minimum bend radius.
